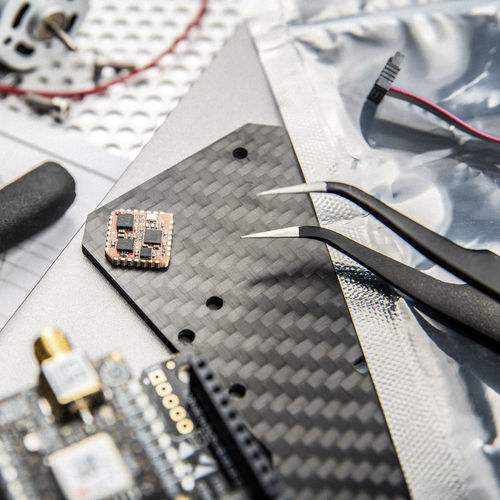

Miniature inertial navigation system Xsens MTi-7

lightweightbased on external GPS datahigh-accuracy

The MTi-7 is a self-contained GNSS/INS (Global Navigation Satellite System/inertial navigation system) with advanced sensor fusion algorithms. Self-contained Self-contained with advanced sensor fusion algorithms, the MTi-7 is a GNSS/INS (Global Navigation Satellite System/inertial navigation system) and can synchronize the inputs from its on-board accelerometer, gyroscope, and magnetometer with the data from an external GNSS receiver. Real-time data stream The raw sensor signals are combined and processed at a high data rate of 100 Hz, to produce a real-time data stream with the device’s 3D position, velocity, and orientation (roll, pitch, and yaw). Smallest industrial grade form factor As part of the MTi 1-series, it is among the smallest of its kind available, with each module measuring only 12.1 × 12.1 mm and weighing <1 g. Specifications: Sensor fusion performance Roll, pitch - 0.5 deg RMS Yaw/heading - 1.5 deg RMS Position - 1 m CEP Velocity - 0.05 m/s RMS Gyroscope Standard full range - 2000 deg/s In-run bias stability - 6 deg/h Noise density - 0.003 °/s/√Hz Accelerometer Standard full range - 16 g In-run bias stability - 40 µg Noise density - 70 µg/√Hz Magnetometer - onboard Barometer - External (SPI) GNSS receiver GNSS receiver interface - UART (NMEA, UBX, beta:SBF/GSOF) GNSS precision - Standard RTK/RTCM corrections - n/a Mechanical IP-rating (equivalent) - IP00 Dimensions - 12.1 × 12.1 × 2.55 mm Weight - 0.6 g Electrical Input voltage - 2.8 to 3.6 V Power consumption (typ.) - <150 mW @ 3 V Interfaces / IO Interfaces - UART, SPI, I²C Protocols - Xbus, NMEAin Output frequency - up to 1 kHz
