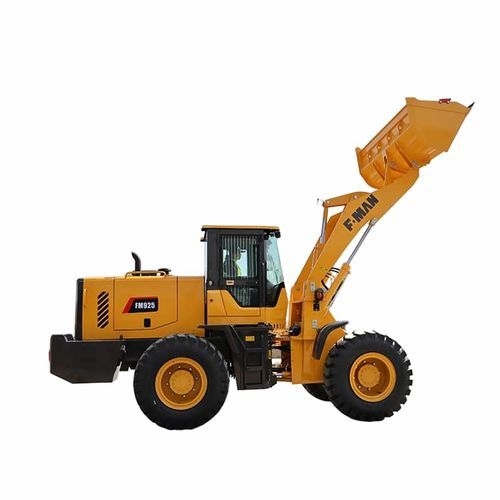

Front loader FM925

Overview
The FM925 wheel loader is designed for heavy-duty and continuous operations in environments such as mining sites, sand and gravel yards and large earthmoving projects. With a 2,500 kg rated load and a 1.33 m³ bucket, it increases single-pass volume and reduces cycle times. Driven by a Weichai 92 kW engine and offering a maximum dumping height of 3,600 mm, the machine balances stable power, compatibility with transport vehicles and maintainability.

Key benefits

• Powerful load capacity: rated load 2,500 kg with a 1.33 m³ large-capacity bucket for higher single-load volume and fewer cycles.
• Efficient power: equipped with a Weichai 92 kW engine that delivers stable power for continuous full-load operation.
• Flexible loading and unloading: 3,600 mm dumping height compatible with various transport vehicles for smoother material handling.
• Stable and reliable: optimized overall structure and balanced weight distribution for better control under heavy loads.
• Lower operating costs: mature core systems and accessible maintenance reduce downtime and improve uptime.

Specifications
Item | Unit | FM925
Overall performance parameters specification
Minimum turning radius | mm | 5075
Theoretical Gradeability | ° | 27
Maximum speed | Km/h | 36
Maximum dumping height | mm | 3600
Maximum dump reach | |
Discharging distance | mm | 910
Discharging angle | ° | 44
Bucket capacity | m³ | 1.33
Bucket width/depth | mm | 2400/620
Wheel base | mm | 2865
Lifting time (unladen) | s | 5.15
Lowering time (unladen) | s | 3.35
Discharging time (unladen) | s | 0.7
Total cycle time | s | 9.2
Maximum digging force | kN | 56.7
Maximum traction effort | kN | 70
Maximum breakout force | kN |
Tipping load | kN | 49.9

Main dimensions and weight
Vehicle length | mm | 7500
Vehicle height | mm | 3150
Vehicle width | mm | 2430
Rated loading weight | Kg | 2500
Operating weight | Kg | 8200
Total weight | Kg |
Minimum ground clearance | mm | 415
Wheel track | mm | 1760

Engine
Model | | WP6G125E22
Manufacturer | | Weichai
Rated power | kW | 92
Rated speed | r/min | 2200
Displacement | L | 6.75
Number of cylinders | | 6
Cylinder diameter | mm | 105*130
Maximum torque | N.m | 500
Minimum fuel consumption rate | g/kW. h | ≤210

Transmission
Model | | 315
Gearshift | | Front 4 rear 4
Braking type | | Air brake
Axle | | 2.8 ton axle
Tire type | | 17.5-25
Front tire air pressure | Mpa | 0.33
Rear tire air pressure | Mpa | 0.3

Fuel and capacities
Fuel volume | L | 160
Hydraulic oil | L | 180
Axle - Single | L | 14
Engine | L | 12
Transmission | L | 28
Braking system | L | 3

Steering system
Model | | Full hydraulic steering
Steering angle | ° | 33
System working pressure | Mpa | 18

Technical features

• Model: FM925
• Bucket capacity: 1.33 m³
• Rated loading weight: 2,500 Kg
• Operating weight: 8,200 Kg
• Engine model: WP6G125E22 (Weichai), Rated power: 92 kW at 2,200 r/min
• Displacement: 6.75 L; Cylinders: 6; Cylinder diameter: 105*130 mm
• Maximum torque: 500 N.m
• Maximum speed: 36 Km/h
• Maximum dumping height: 3,600 mm
• Bucket width/depth: 2,400/620 mm
• Wheel base: 2,865 mm
• Lifting time (unladen): 5.15 s; Lowering time: 3.35 s; Discharging time: 0.7 s; Total cycle time: 9.2 s
• Tire: 17.5-25; Front/Rear tire pressure: 0.33/0.3 Mpa
• Fuel tank: 160 L; Hydraulic oil: 180 L
• Steering: Full hydraulic; Steering angle: 33°; System working pressure: 18 Mpa
• Transmission: Model 315, Front 4 / Rear 4
