Wheeled loader FM968

largeoutdoorfor mining applications

Overview

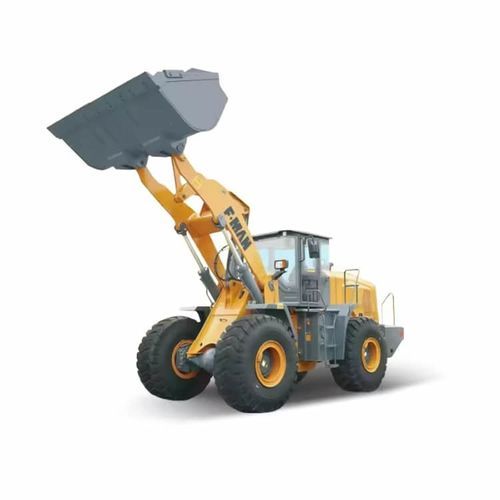

The FM968 wheel loader is a 6.5 ton class construction machine built for mining, high-discharge loading and large-scale material handling. With an operating weight of 21,700±300 kg and a reinforced structure, the FM968 delivers stable operation under heavy load and high-frequency work cycles.

Applications

• Mining
• Aggregate production lines
• Port yards
• Large-scale earthmoving
• Infrastructure projects

Bucket and Lifting
The FM968 is equipped with a standard 4.2 m³ large-capacity bucket and a 6,340 mm dump height, enabling efficient high-position loading and silo feeding. The optimized working device and lifting mechanism increase single-load volume and shorten cycle time while maintaining smooth operation and reducing component wear.

Power and Transmission
The machine is powered by a Weichai engine with a rated power of 175 kW, offering sufficient power reserve and rapid response for heavy-start and continuous loading conditions. Powertrain matching provides strong output while helping control fuel consumption and improve operating economy.

Comfort & Maintenance
The cab offers a wide field of view and an operator-oriented control layout to reduce fatigue and improve safety. Overall dimensions of 8800 × 3200 × 3540 mm allow accessible maintenance points and a compact structural layout to minimize downtime and maximize uptime.

Specifications (table)
UNIT FM968
Operating Weight kg 21700±300
Rated Load kg 6500
Bucket Capacity m³ 4.2
Dumping Height mm 6340
Engine Weichai
Rated power kW 175
Maximum overall dimensions (Length × Width × Height) mm 8800 × 3200 × 3540

Technical specifications

• Model: FM968
• Operating weight: 21700±300 kg
• Rated load: 6500 kg
• Bucket capacity: 4.2 m³
• Dumping height: 6340 mm
• Engine: Weichai
• Rated power: 175 kW
• Overall dimensions (L × W × H): 8800 × 3200 × 3540 mm
