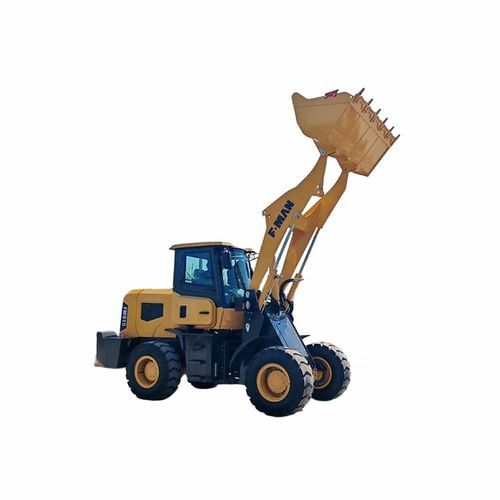

Front loader FM915

Product overview
FMAN FM915 wheel loader is engineered for construction and material-handling tasks that require increased loading capacity and sustained operation. Combining a 0.75 m³ bucket, 1,600 kg rated load and the Yunnei YN38GB engine (76 kW), the FM915 balances loading efficiency, power matching and structural stability for frequent medium-duty cycles. The machine features a 3,500 mm maximum dumping height and a 710 mm discharge distance to simplify transfer to transport vehicles of varying heights.

Operational advantages
The 0.75 m³ bucket with a 1,600 kg rated load enables higher throughput per pass, reducing cycle counts on earthmoving and material-handling tasks. The Yunnei 76 kW engine provides consistent power response under continuous load. Compact dimensions and a balanced center of gravity support good manoeuvrability on site, while accessible maintenance points simplify routine inspections and reduce downtime.

Applications

• Earthmoving and site preparation
• Sand, gravel and aggregate handling
• Loading and handling of medium-sized materials on construction sites

Key performance and dimensions

• Rated load: 1,600 kg
• Bucket capacity: 0.75 m³
• Bucket width/depth: 2100 / 496 mm
• Maximum dumping height: 3,500 mm
• Discharging distance: 710 mm
• Maximum speed: 27 km/h
• Total cycle time: 10.45 s
• Operating weight: 5,276 kg
• Overall dimensions (L×W×H): 6,150 × 2,140 × 2,835 mm
• Wheel base: 2,355 mm
• Minimum turning radius: 4,750 mm

Product details
The FM915 is designed for extended work cycles with a focus on the balance between load capacity, matched powertrain and structural integrity. Key components are specified for continuous operation, service access points are optimised for quick daily checks, and the loader geometry facilitates efficient material transfer to transport units.

Specifications

• Model: FM915
• Brand: FMAN
• Rated loading weight: 1,600 Kg
• Operating weight: 5,276 Kg
• Bucket capacity: 0.75 m³
• Bucket width/depth: 2100/496 mm
• Vehicle dimensions (L×W×H): 6,150 × 2,140 × 2,835 mm
• Wheel base: 2,355 mm
• Minimum ground clearance: 370 mm
• Wheel track: 1,560 mm
• Rated power: 76 kW @ 2,400 r/min (Yunnei YN38GB)
• Displacement: 3.8 L, 4 cylinders
• Maximum torque: 290 N·m
• Maximum digging force: 45 kN
• Maximum traction effort: 40 kN
• Total cycle time: 10.45 s
• Maximum dumping height: 3,500 mm
• Discharging distance: 710 mm
• Transmission model: 265 (Front 4 / Rear 4)
• Braking type: Air brake
• Axle: Middle hub
• Tire type: 16/70-20
• Front/rear tire pressure: 0.33 / 0.3 MPa
• Fuel tank: 80 L
• Hydraulic oil capacity: 80 L
• Axle oil (single): 14 L
• Engine oil: 6.8 L
• Transmission oil: 22 L
• Brake system oil: 1.5 L
• Steering: Full hydraulic steering, steering angle 33°, system working pressure 16 MPa
