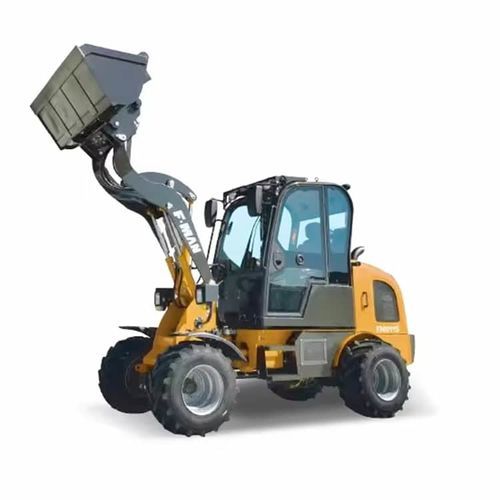

Wheeled loader FM911S

compactoutdoorfor construction

Product overview
The FM911S wheel loader (European version) is a compact, maneuverable machine designed for urban construction, landscaping, farm work and municipal projects. Its 0.5 m³ bucket and 2023 mm discharge height enable efficient handling of soil, sand, gravel and construction materials. Equipped with a CHANGCHAI 25 kW engine, it provides stable power response and controlled fuel consumption. Compact dimensions (4545 × 1520 × 2438 mm) and an operating weight of 2670 kg allow operation in confined spaces; accessible service points simplify maintenance and reduce downtime.

Performance and features

• 0.5 m³ bucket suitable for soil, sand, gravel and building materials
• Discharge height: 2023 mm for efficient loading and dumping
• Engine: CHANGCHAI, rated power 25 kW for balanced power and fuel use
• Operating weight: 2670 kg for confined-site compatibility
• Compact overall dimensions: 4545 × 1520 × 2438 mm
• Accessible maintenance points to minimize downtime

Main technical parameters (table)
Main Technical Parameters - UNIT - FM911S
Operating Weight (kg): 2670
Rated Load (kg): 1000
Bucket Capacity (m³): 0.5
Dumping Height (mm): 2023
Engine: CHANGCHAI
Rated power (kW): 25
Maximum overall dimensions (Length × Width × Height) (mm): 4545 × 1520 × 2438

Applications

• Urban construction
• Landscaping and green-space maintenance
• Farm and agricultural work
• Municipal projects and public works

Characteristics / Technical specifications

• Model: FM911S (European version)
• Intended uses: urban construction, landscaping, agricultural work, municipal projects
• Operating weight: 2670 kg
• Rated load: 1000 kg
• Bucket capacity: 0.5 m³
• Dumping height: 2023 mm
• Engine: CHANGCHAI
• Rated power: 25 kW
• Dimensions (L×W×H): 4545 × 1520 × 2438 mm
• Compact design for confined-space operation and accessible service points
