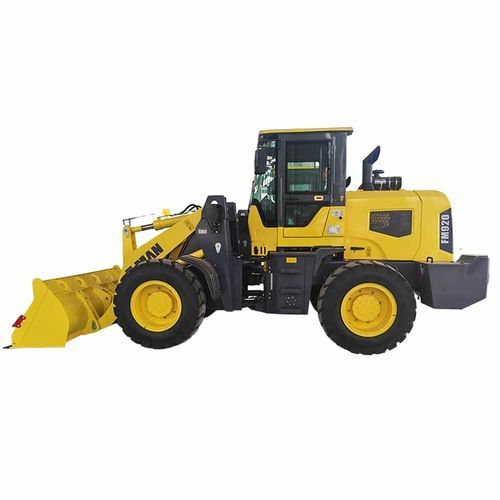

Wheeled loader FM920

mining and quarryingoutdoorfor construction

Product overview
The FM920 wheel loader is a medium-class machine engineered for high-intensity earthmoving, material handling and site loading tasks. It is suitable for quarries, sand and gravel yards, mining auxiliary operations and construction sites requiring continuous, efficient loading and transfer of bulk materials.

Performance and application
The FM920 delivers a 2000 kg rated load with a 1.11 m³ bucket, enabling efficient loading in a single pass. Key operating figures support versatile field use:

• Rated loading weight: 2000 kg
• Bucket capacity: 1.11 m³ (bucket width/depth: 2200/560 mm)
• Maximum dumping height: 3600 mm; discharge distance: 600 mm
• Engine: Yuchai YCD4J22T-115, rated power 85 kW at 2600 r/min
• Maximum speed: 33 km/h; wheelbase: 2850 mm; operating weight: 6325 kg

Design, maintenance and reliability
FM920 is built with a rationalized chassis and component layout to balance load capacity, stability and serviceability. Key systems are selected for maturity and reliability. Generous maintenance access and clear component arrangement reduce inspection and service time, helping to limit downtime and operating costs in high‑use environments.

Technical specifications

• Model: FM920
• Brand: FMAN
• Rated loading weight: 2000 kg
• Bucket capacity: 1.11 m³
• Bucket width/depth: 2200/560 mm
• Minimum turning radius: 6500 mm
• Theoretical gradeability: 30°
• Maximum speed: 33 km/h
• Maximum dumping height: 3600 mm
• Discharge distance: 600 mm
• Discharge angle: 35°
• Wheel base: 2850 mm
• Lifting time (unladen): 5.8 s
• Lowering time (unladen): 3.94 s
• Dumping time (unladen): 1 s
• Total cycle time: 10.7 s
• Maximum digging force: 65 kN
• Maximum traction effort: 58 kN
• Vehicle length × width × height: 7000 × 2240 × 2971 mm
• Operating weight: 6325 kg
• Minimum ground clearance: 350 mm
• Wheel track: 1650 mm
• Engine model: YCD4J22T-115 (Yuchai)
• Rated power: 85 kW at 2600 r/min
• Displacement: 4.33 L; Cylinders: 4; Bore × stroke: 105 × 125 mm
• Maximum torque: 390 N·m; Minimum fuel consumption rate: ≤245 g/kW·h
• Transmission model: 280; Gearshift: Front 4 / Rear 4
• Braking type: Air brake
• Axle type: Big hub
• Tire type/size: 16/70-24; Front/Rear tire pressure: 0.33 / 0.3 MPa
• Fuel tank: 80 L; Hydraulic oil: 99 L; Axle (single): 14 L; Engine oil: 11 L; Transmission oil: 28 L; Brake system oil: 3 L
• Steering: Full hydraulic steering; Steering angle: 33°; System working pressure: 16 MPa
