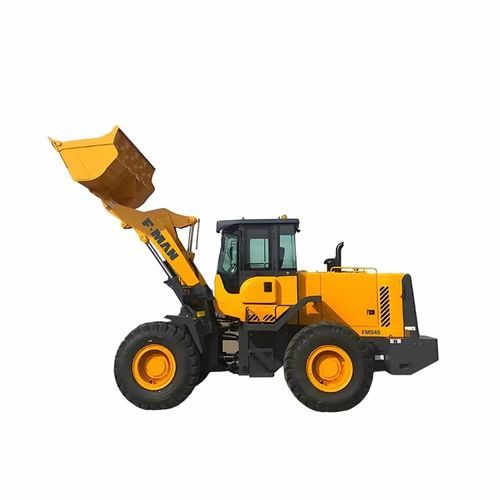

Wheeled loader FM945

largeoutdoorfor construction

Overview
The FM945 wheel loader is a medium-to-large capacity loading machine engineered for continuous operations in construction sites, quarries, ports and material yards. It has an operating weight of 12,700 kg, a rated load of 4,000 kg and a 2.3 m³ bucket, suitable for handling sand, gravel, minerals and bulk materials while maintaining site maneuverability.

Power and performance
Equipped with a WP6G175E22 engine delivering 129 kW rated power, the FM945 provides stable power for extended work cycles. The powertrain is designed to balance fuel efficiency and consistent output for sustained operations.

Operating characteristics
The 2,950 mm dumping height supports efficient truck loading. Overall dimensions of 7,295 × 2,574 × 3,324 mm and a well-distributed structural layout provide on-site maneuverability and stability across typical loading tasks.

Applications

• Construction sites
• Mining operations
• Ports and terminals
• Material yards and bulk handling

Specifications (table)
UNIT: FM945
Operating Weight | kg | 12700
Rated Load | kg | 4000
Bucket Capacity | m³ | 2.3
Dumping Height | mm | 2950
Engine | | WP6G175E22
Rated Power | kW | 129
Maximum overall dimensions (Length × Width × Height) | mm | 7295 × 2574 × 3324

Technical specifications

• Model: FM945
• Operating Weight: 12,700 kg
• Rated Load: 4,000 kg
• Bucket Capacity: 2.3 m³
• Dumping Height: 2,950 mm
• Engine: WP6G175E22
• Rated Power: 129 kW
• Overall Dimensions (L×W×H): 7,295 × 2,574 × 3,324 mm
• Typical applications: sand, gravel, mineral and bulk material handling, truck loading, construction, mining, ports, material yards
