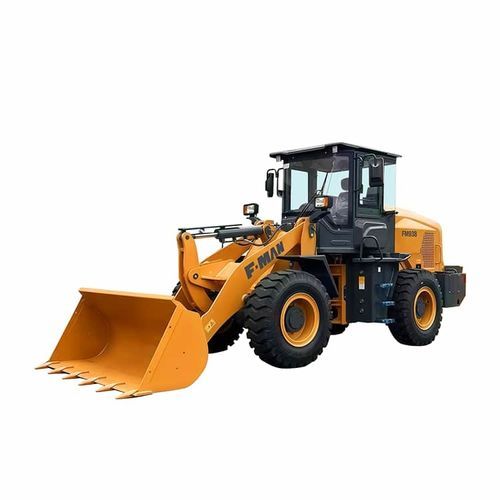

Wheeled loader FM938

articulatedoutdoorfor construction

Product overview
The FM938 wheel loader is equipped with a 1.8 m³ bucket and a 3,000 kg rated load, enabling high single-load capacity, reduced work cycles and improved productivity for construction, mining and large earthmoving projects. Suitable for quarries, sand and gravel yards and large-scale sites.

Ample power
Powered by a Weichai 92 kW engine, the FM938 delivers stable continuous output for extended operating periods, supporting intensive loading tasks and sustained site operations.

Flexible loading and unloading
With a dumping height of 3,249 mm the loader is compatible with a range of transport vehicles and hoppers, optimising loading/unloading flows and material transfer efficiency.

Stable and reliable
The machine features an optimised weight distribution and a rational body structure to maintain stability and precise control under heavy loads, supporting safer operation on demanding tasks.

Convenient maintenance
Key systems use proven components and the layout provides ample maintenance access to simplify inspections and routine service, helping to reduce downtime and operating costs.

Specifications (table)
Model: FM938
Operating weight (kg): 10300
Rated load (kg): 3000
Bucket capacity (m³): 1.8
Dumping height (mm): 3249
Engine: Weichai
Rated power (kW): 92
Maximum overall dimensions (L × W × H) (mm): 7200 × 2500 × 3180

Technical specifications

• Model: FM938
• Operating weight: 10,300 kg
• Rated load: 3,000 kg
• Bucket capacity: 1.8 m³
• Dumping height: 3,249 mm
• Engine: Weichai
• Rated power: 92 kW
• Maximum overall dimensions (L×W×H): 7,200 × 2,500 × 3,180 mm
