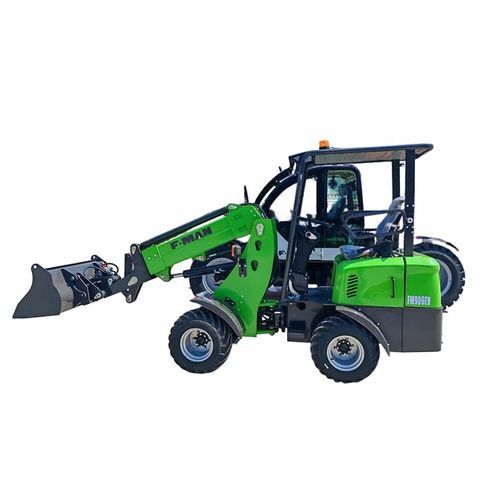

Wheeled loader FM906EV

compactindoor/outdoorfor factory

Overview
The FMAN FM906EV electric wheel loader is a compact, pure-electric loader engineered for urban construction, park maintenance and indoor/outdoor material handling. Its zero local emissions and low noise make it suitable for noise- and environment-sensitive sites, while its compact footprint and agile steering enable efficient operation in confined spaces.

Key features

• Pure electric drive system: rated voltage 76 V, battery capacity 240 Ah
• Rated load capacity: 600 kg with 0.25 m³ bucket
• Compact structure and small overall dimensions for confined-area maneuverability
• Maximum dumping height: 3440 mm for loading trucks, hoppers and silos
• Low noise operation and zero local emissions for urban or enclosed sites
• Reduced routine maintenance and operating costs compared with fuel-powered equipment

Design and usage
The machine has a working weight around 2180 kg and a compact overall layout providing wide field of view and simple controls. It is intended for light to medium-duty material loading and handling to improve loading/unloading efficiency in urban, warehouse and indoor environments.

Technical specifications

• Model: FM906EV
• Brand: FMAN
• Drive type: Pure electric drive
• Battery: 240 Ah, rated voltage 76 V
• Working weight / Machine weight: 2180 kg / 2175 kg
• Rated loading weight: 600 kg
• Bucket capacity: 0.25 m³
• Bucket width/depth: 1115 mm
• Maximum speed: 20 km/h
• Maximum dumping height: 3440 mm
• Discharging distance: 1254 mm
• Discharging angle: 33°
• Total cycle time: 9 s
• Vehicle overall dimensions: 4298 × 1263 × 2276 mm (alt. 4290 × 1260 × 2270 mm)
• Wheel base: 1380 mm — Wheel track: 945 mm
• Minimum ground clearance: 200 mm
• Tire size: 26x12.00-12 — Front/rear tire pressure: 0.25 MPa
• Braking type: Drum brake
• Steering: Hydraulic steering, steering angle 45°, hydraulic working pressure 14 MPa

Applications

• Municipal works and urban construction
• Warehousing and logistics — indoor material handling
• Agriculture and animal husbandry
• Factory yards and enclosed working environments
• Park maintenance and landscape operations

Operation and maintenance

• Simple controls and good visibility for safe operation in confined spaces
• Reduced routine maintenance compared with internal-combustion machines (no thermal engine service)
• Recommended battery charge management and planning of work cycles to optimize availability
• Lower operating costs through energy efficiency and simplified service intervals
