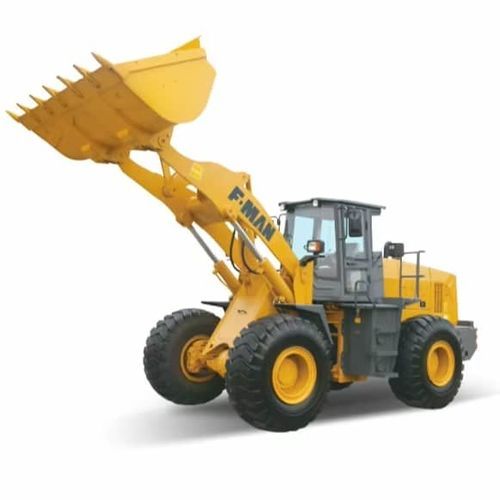

Wheeled loader FM958

articulatedlargemining and quarrying

Overview
FMAN FM958 wheel loader is a 5‑ton class heavy‑duty machine engineered for continuous high‑intensity work in mines, sand and gravel yards, port terminals and large infrastructure projects. With an operating weight of 16,800±300 kg, reinforced structure and stable kinematics, it supports long‑duration high‑load cycles while maintaining operational stability.

Applications

• Mines and quarries
• Sand and gravel yards
• Port and bulk terminals
• Large‑scale infrastructure and civil works

Performance and powertrain
The FM958 is powered by a WEICHAI WD10G220E21 engine (rated power 162 kW) delivering high torque and responsive performance under load. Transmission and driveline matching have been optimized to balance productivity and fuel consumption, ensuring reliable operation in demanding conditions.

Key specifications

• Model: FM958
• Brand: FMAN
• Operating weight: 16,800±300 kg
• Rated load: 5,000 kg (5 t)
• Bucket capacity: 3.0 m³ (standard)
• Dumping height: 4,199 mm
• Engine: WEICHAI WD10G220E21
• Rated power: 162 kW
• Overall dimensions (L×W×H): 8,015 × 3,000 × 3,380 mm

Design and maintenance
The FM958 features a practical layout with ample service access and reachable maintenance points to reduce downtime and operating costs. The standard 3.0 m³ bucket and high dumping height improve loading efficiency and shorten cycle times.
