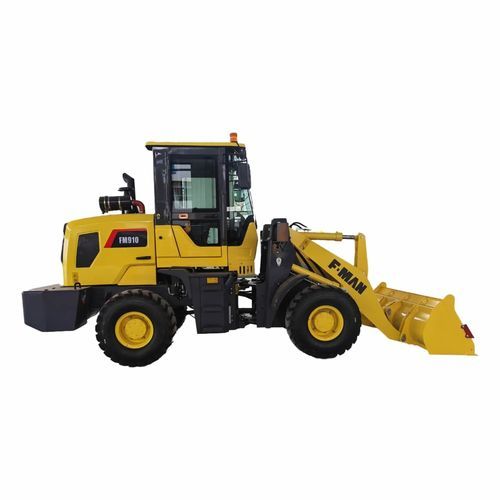

Rubber-tired loader FM910

compactmining and quarryingoutdoor

Product overview
The FMAN FM910 wheel loader is a compact loader designed for loading and transporting bulk materials (sand, soil, ore) across multiple work scenarios. Key nominal data: operating weight 3600 kg, rated load 800 kg and standard bucket 0.56 m³, ensuring consistent loading performance under varied site conditions.

Power and performance
Equipped with a Yunnei YN27GB engine (58 kW at 2400 r/min, 2.7 L, 4 cylinders, maximum torque 230 N·m) that provides reliable power and controlled fuel consumption (minimum specific fuel consumption ≤260 g/kW·h). Maximum dumping height 3200 mm, discharge distance 560 mm and maximum speed 20 km/h. Key cycle times: lifting (unloaded) 3.5 s, lowering (unloaded) 2.25 s, discharging (unloaded) 0.4 s, total cycle 6.25 s.

Design and maintenance
Overall dimensions 5820 × 2740 × 1822 mm and wheelbase 2245 mm deliver good maneuverability in confined areas. Component layout prioritizes inspection and routine maintenance access. Transmission model 265 (front 4 / rear 4), air brake system, small-hub axle and 20.5-16 tires (front pressure 0.33 MPa, rear 0.3 MPa). Fuel tank 60 L, hydraulic oil 60 L.

Specifications

• Minimum turning radius — m: 5045
• Theoretical gradeability — °: 28
• Maximum speed — Km/h: 20
• Maximum dumping height — mm: 3200
• Discharging distance — mm: 560
• Discharging angle — °: 30
• Bucket capacity — m³: 0.56
• Bucket width/depth — mm: 1800/446
• Wheel base — mm: 2245
• Lifting time (unladen) — s: 3.5
• Lowering time (unladen) — s: 2.25
• Discharging time (unladen) — s: 0.4
• Total cycle time — s: 6.25
• Maximum digging force — kN: 22.9
• Maximum traction effort — kN: 30
• Vehicle dimensions (L×H×W) — mm: 5820 × 2740 × 1822
• Rated loading weight — Kg: 800
• Operating weight — Kg: 3600
• Minimum ground clearance — mm: 260
• Wheel track — mm: 1345
• Engine model: YN27GB — Manufacturer: Yunnei — Rated power: 58 kW — Rated speed: 2400 r/min — Displacement: 2.7 L — Number of cylinders: 4 — Cylinder diameter × stroke: 90 × 105 mm — Maximum torque: 230 N.m — Minimum fuel consumption rate: ≤260 g/kW.h
• Transmission model: 265 — Gearshift: Front 4 / Rear 4
• Braking type: Air brake
• Axle: Small hub
• Tire type: 20.5-16 — Front tire air pressure: 0.33 MPa — Rear tire air pressure: 0.3 MPa
• Fuel volume — L: 60 — Hydraulic oil — L: 60 — Axle (single) — L: 11 — Engine oil capacity — L: 5.5 — Transmission oil capacity — L: 24 — Braking system oil capacity — L: 1.5
• Steering system model: Full hydraulic steering — Steering angle — °: 28 — System working pressure — MPa: 16
