Modular building

temporarypermanenttransportable

Overview

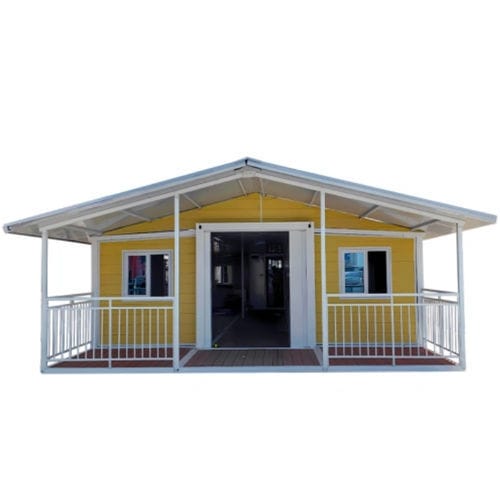

The 3-bedroom 2-bath modular container home is designed for family living, resort accommodation and emergency housing. It offers a balance of usable space and rapid deployability, suitable for temporary and long-term installations.

Key advantages

• High adaptability and fast on-site deployment for temporary or semi-permanent use.
• Suitable for families, construction site housing, tourist homestays and emergency resettlement.
• Modular design allows customization of layout, exterior color, terraces, solar systems and mobility options.

Application scenarios

• Construction site housing: accommodates 6–8 workers; dual bathrooms reduce peak-time congestion.
• Tourist resorts / homestays: family-oriented layout; can increase occupancy when fitted with terraces and solar options.
• Emergency resettlement: rapid on-site deployment to provide safe temporary dwellings.
• Short-term urban living: fast installation without long renovation cycles.

Container home parameters
20FT Basic Characteristics — External dimension (mm): W6320 × L5900 × H2480 (Side 2270)
20FT Basic Characteristics — Internal dimension (mm): W6160 × L5560 × H2240 (Side 2150)
20FT Basic Characteristics — Folded state (mm): W2200 × L5900 × H2480
20FT Basic Characteristics — Total mass (kg): 2500
40FT Basic Characteristics — External dimension (mm): W6240 × L11800 × H2480 (Side 2180)
40FT Basic Characteristics — Internal dimension (mm): W6080 × L11540 × H2200 (Side 2060)
40FT Basic Characteristics — Folded state (mm): W2200 × L11800 × H2480
40FT Basic Characteristics — Total mass (kg): 4400

Core configurations and materials
The main frame is manufactured from Q235 steel strip with anti-corrosion treatment and rated wind resistance up to level 8. Wall panels are EPS sandwich panels providing thermal insulation (indoor temperature in winter typically 10–15℃ higher than outside). Flooring is PVC (waterproof and wear-resistant). Standard inclusions: toilets, washbasins, shower rooms, kitchen cabinets, electrical sockets and water piping. Optional additions: outriggers, solar panels, trailer chassis and other mobility or energy-saving accessories.

Installation & Service
Assembly is straightforward: a 2-person team with appropriate tools can complete setup in 1–2 hours. Technical guidance and installation videos are provided. With normal maintenance the expected service life is 15–20 years.

Success case example
Homestay upgrade in rural Portugal: replacing single-bath rooms with two sets of 3-bedroom 2-bath container homes (plus terraces and solar) increased family bookings by 60% and overall revenue by 45% compared with previous setup.

Common customer questions (Q&A)

• Q: Is the 3-bedroom 2-bath container home difficult to install?
  A: Installation is simple; a 2-person team with tools can complete it in 1–2 hours. Installation videos and real-time technical guidance are available.
• Q: What is the service life of the house?
  A: With normal maintenance the service life can reach 15–20 years; the main frame is anti-corrosion treated and materials are weather resistant.
• Q: Are there other options besides the 3-bedroom 2-bath model?
  A: Yes. Other offered models include 2-bedroom 2-bath units and larger 4-bedroom container homes; configurations vary to match budget and space requirements.
• Q: Can the house color and layout be customized?
  A: Yes. Exterior color, interior layout, terraces, storage rooms and other personalized adjustments are supported.

Technical specifications

• Main frame: Q235 steel strip, anti-corrosion treated, wind resistance up to level 8.
• Wall panels: EPS sandwich panels for thermal insulation.
• Floor: PVC flooring, waterproof and wear-resistant.
• Standard configuration: toilets, washbasins, showers, kitchen cabinets, electrical sockets, water piping.
• Optional: outriggers, solar panels, trailer chassis for mobility and energy saving.
• 20FT external dimension (mm): W6320 × L5900 × H2480 (Side 2270).
• 20FT internal dimension (mm): W6160 × L5560 × H2240 (Side 2150).
• 20FT folded state (mm): W2200 × L5900 × H2480.
• 20FT total mass: 2500 kg.
• 40FT external dimension (mm): W6240 × L11800 × H2480 (Side 2180).
• 40FT internal dimension (mm): W6080 × L11540 × H2200 (Side 2060).
• 40FT folded state (mm): W2200 × L11800 × H2480.
• 40FT total mass: 4400 kg.
• Expected service life: 15–20 years under normal maintenance.
