Electric high-pressure cleaner YG3000

stationaryaluminumwith detergent injection

Overview
Modern automated car wash solutions for continuous, high-throughput operation. Contactless, gantry and tunnel configurations reduce labor and water use while meeting stricter environmental requirements. Expert tip: verify site electrical capacity; typical contactless systems require 15–22 kW of available power.

Main features and benefits

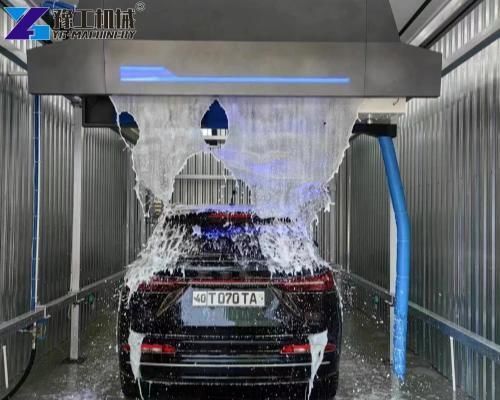

• 360° touchless option: high-pressure rotating arms and formulated chemicals remove dirt without contact to prevent brush-related paint damage.
• Gantry reciprocating system: brush-assisted mode with feedback and ultrasonic sensors to follow vehicle contours; compact for service stations and small workshops.
• Tunnel wash system: conveyor-based rinsing, foaming, brushing and drying for high throughput (suitable for >100 cars/day).
• Special vehicle washers: configurations for buses, ambulances and heavy construction vehicles for large-scale cleaning tasks.

Technical highlights

• PLC-based smart control with one-touch remote diagnostics and software updates.
• High-pressure silent pump station: quiet operation for urban sites with working pressures up to ~120 Bar.
• Multi-dimensional infrared sensors to detect roof racks, spoilers and irregular parts to avoid damage and ensure complete cleaning.
• Aviation-grade aluminum frame with anti-corrosion treatment for service life >10 years in wet environments.

Common application fields

• Private vehicles: service stations, shopping-centre car parks, residential hubs.
• Public transit: bus operators, taxi fleet depots, school-bus bases.
• Logistics & construction: automatic truck wash stations for construction sites and logistics parks.

Success case (summary)

• The Problem: high labor turnover and customer complaints about paint scratches from manual washing.
• The Result: average wash time reduced from ~20 minutes to ~5 minutes per car after installing a contactless system.
• The Gain: increased monthly throughput and profitability without proportional staff increases.

Product parameters (from specification table)

• Model: YG3000
• Machine name: 360° Water wax air-dry car washing machine
• Machine size (W × H × L): 6300 mm × 3700 mm × 3000 mm
• Max vehicle (L × W × H): 5300 × 2000 × 2000 mm
• Required site footprint: 6800 mm × 3700 mm × 3000 mm
• Water pump: 110/min - 100 kg
• Water consumption: 80–120 L (14 nozzles)
• Total installed power: 15 kW (site recommendation: 15–22 kW)
• Energy consumption per car: 0.25–0.4 kWh/car
• Fan configuration: 4 × 5.5 kW
• Control: PLC-based smart control with remote diagnostics and software updates
• Frame: aviation-grade aluminum with anti-corrosion treatment (design life >10 years)
• Sensors: multi-dimensional infrared sensors for profile detection
• Pump: high-pressure silent pump station, up to ~120 Bar working pressure

FAQ (selected answers)

• Installation time: typically 5–7 days with provided site layout and installation guidance.
• After-sales: equipment includes self-diagnostic features; many faults are resolved by replacing modular parts.
• Touchless cleaning effectiveness: depends on water pressure and detergent ratio; adjustable pressure around 100–120 Bar for heavy road grime.

Technical specifications

• Model: YG3000
• Machine type options: 360° Touchless, Gantry Reciprocating, Tunnel Wash, Special Vehicle Washers
• Overall dimensions: 6300 × 3700 × 3000 mm (W × H × L)
• Max vehicle: 5300 × 2000 × 2000 mm
• Site footprint: 6800 × 3700 × 3000 mm
• Water pump spec: 110/min - 100 kg
• Water consumption: 80–120 L (14 nozzles)
• Total power: 15 kW
• Energy per car: 0.25–0.4 kWh/car
• Fans: 4 × 5.5 kW
• Control: PLC-based remote diagnostics and updates
• Frame: aviation-grade aluminum, anti-corrosion
• Sensors: multi-dimensional infrared
• Pump pressure: up to ~120 Bar
