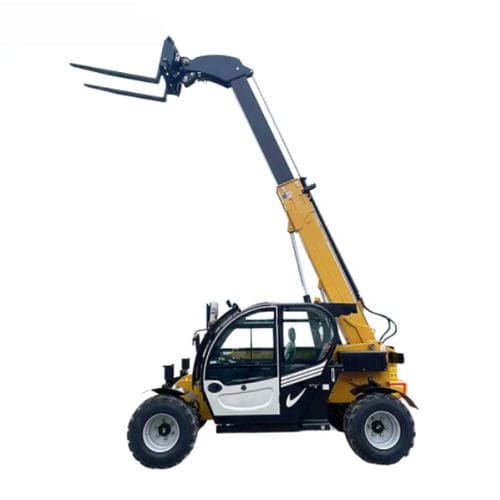

Telehandler with combustion engine YG-TS series

diesel enginelong-reachsmall turning radius

Overview
A telescopic boom handler combines fork functionality with a telescopic crane boom to perform lifting, fork handling and aerial work in construction and agricultural operations. It can reach over obstacles and place materials precisely, making it adaptable on confined construction sites and rugged farmland.

Telescopic Boom Handler Parameters
Models: YG-TS735 | YG-TS1035 | YG-TS1440 | YG-TS1850
Rated load: 3500 kg | 3500 kg | 4000 kg | 5000 kg
Maximum lift height: 7000 mm | 10000 mm | 13500 mm | 17550 mm
Maximum reach: 3600 mm | 5000 mm | 8500 mm | 13080 mm
Maximum traction force: ≥70 kN (all models)
Minimum ground clearance: 350 mm | 420 mm | 420 mm | 420 mm
Overall dimensions (L×W×H): 4650×2150×2300 mm | 5700×2230×2400 mm | 7000×2350×2550 mm | 7500×2430×2550 mm
Wheelbase: 2850 mm | 3670 mm | 3670 mm | 3670 mm
Axle track: 1750 mm | 1990 mm | 1990 mm | 1990 mm
Turning radius (outer wheel): ≤4250 mm | ≤4500 mm | ≤4500 mm | ≤4500 mm
Maximum travel speed: 30 km/h (all models)
Steering type: 4-wheel drive; 3 steering modes: front-wheel, four-wheel and crab steering
Transmission: closed piston pump + travel motor + gearbox + drive axle (all models)
Service brake: oil-immersed multi-disc hydraulic (disc brake) (all models)
Parking brake: negative braking (all models)
Weight (with forks): 8500 kg | 9500 kg | 11500 kg | 13500 kg
Engine options (model / power): CUMMINS / Yuchai 76 kW; Yuchai 77.3 kW; Yunnei 92 kW; CUMMINS 4BTA3.9-C125 91 kW

Pro Tip
If your work involves frequent high-altitude glass installation or roof maintenance, the YG-TS1850 (18 m reach, 5-ton capacity) offers a cost-effective balance of reach and load capacity for those tasks.

Why Choose a Rough Terrain Telescopic Handler?

• 4-wheel drive and multiple steering modes for maneuvering in mud, tight areas and uneven ground
• High ground clearance (up to 420 mm) to reduce risk of grounding on rough terrain
• High traction (≥70 kN) for handling steep inclines and heavy loads on uneven surfaces

Versatility: Attachments & Uses
The machine supports multiple attachments enabling one machine to perform many tasks:

• Buckets for bulk material handling
• Aerial platforms to convert the machine into a man-lift for personnel work
• Hooks for vertical lifting where a small crane is required
• Material handling arms to extend reach and handling options

Case Study: Efficiency Improvement
Deployment of YG-TS1440 units on a ranch improved mobility on muddy pastures and enabled warehouse stacking up to 14 m, increasing storage capacity and operational efficiency in both field and storage applications.

Specifications

• Available models: YG-TS735, YG-TS1035, YG-TS1440, YG-TS1850
• Rated load range: 3500 kg — 5000 kg
• Maximum lift height: 7.0 m — 17.55 m
• Maximum reach: 3.6 m — 13.08 m
• Traction: ≥70 kN
• Minimum ground clearance: 350 mm or 420 mm depending on model
• Top travel speed: 30 km/h
• Steering modes: front-wheel, crab, four-wheel (4WD)
• Transmission: closed piston pump + travel motor + gearbox + drive axle
• Service brake: oil-immersed multi-disc hydraulic brake
• Parking brake: negative braking
• Engine options: CUMMINS, Yuchai, Yunnei (model-specific power)
