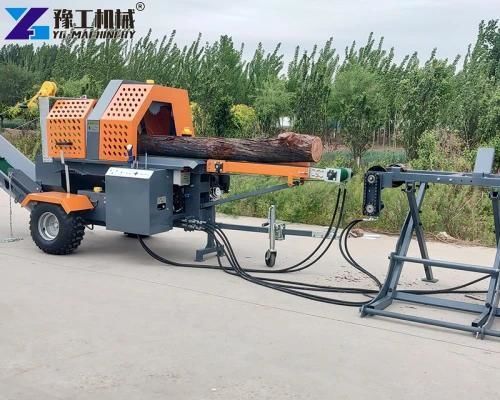

Log splitter

Overview
Gasoline-powered log splitters provide high hydraulic force and site mobility for heavy-duty wood processing. They are suited to remote locations without grid power and are available in 20t, 25t and 40t configurations to match log diameter and application requirements.

Available Tonnage & Recommendations

• 20t: For logs under 400 mm diameter — residential use and softwoods.
• 25t: For logs 400–500 mm diameter — versatile option for homeowners and general use.
• 40t: For logs over 600 mm or very dense hardwoods — industrial or heavy-duty forestry tasks.

Core Components

• Hydraulic cylinder: Main pushing force for splitting.
• Splitting wedge: Hardened steel wedge for cutting through fibers.
• Power unit: Gasoline engine driving the hydraulic pump.

Gasoline Log Splitter Parameters
Max Splitting Force: 15T — 20T
Cycle Time: 7 s — 8 s
Max Splitting Length: 610 mm
Max Splitting Diameter: 380 mm — 400 mm
Work Efficiency: 4 m3/h — 5 m3/h
Engine Power: 15 HP gasoline engine (standard); optional 15/27/37 HP gasoline or 12/19/25 HP diesel; branded engine options available
Engine Displacement: 420 cc
Fuel Tank Capacity: 6.5 L
Engine Oil Capacity: 1.1 L
Gross Torque: 25 N·m @ 2500 rpm
Firewood Conveyor: Length 3.2 m; belt width 250 mm; chute width 400 mm; hydraulic rotator included
Chain Saw: Length 1.2 m; rotate speed 5600 rpm; sawing speed adjustable
Oil Pump: 22 GMP, 2-stage; Oil Tank Capacity: 50 L
Control Valve: One-handle, 4-directional control valve
Tyres: 12"
Knife: 4-way (6-way optional)
Weight: approx. 480–510 kg (depending on configuration)
Main Machine Package Size: 2200 × 900 × 1100 mm; Conveyor Package Size: 2260 × 960 × 1170 mm

How to Match Log Diameter with Tonnage

• Hydraulic force is the key factor — select tonnage to match log diameter to avoid stalls or wasted cycles.
• 20t: under 400 mm — suitable for residential loads and softwood.
• 25t: 400–500 mm — general-purpose and homeowner applications.
• 40t: over 600 mm or very dense hardwood — heavy-duty processing.

Applications and Industrial Use Cases

• Forestry operations: processing at harvest sites.
• Firewood suppliers: producing standardized firewood for commercial sale.
• Farm and land maintenance: clearing fallen trees and managing timber resources.

Core Benefits

• Higher hydraulic pressure and faster cycle times compared with typical electric models.
• Mobility and independence from the electrical grid for remote work sites.
• Multiple engine and configuration options to match workload and duty cycle.

Maintenance & Warranty Notes

• Regularly check hydraulic and engine oil levels; maintain a sharp splitting wedge to reduce strain.
• Warranty: 24-month warranty on the processor and accessories (manufacturer terms apply).

Technical specifications

• Max Splitting Force: 15T (model A), 20T (model B)
• Cycle Time: 7 s (model A), 8 s (model B)
• Max Splitting Length: 610 mm
• Max Splitting Diameter: 380 mm / 400 mm depending on model
• Work Efficiency: 4–5 m3/h
• Engine Power: 15 HP standard; optional 15/27/37 HP gasoline or 12/19/25 HP diesel; branded engines optional
• Engine Displacement: 420 cc
• Fuel Tank Capacity: 6.5 L
• Engine Oil Capacity: 1.1 L
• Gross Torque: 25 N·m @ 2500 rpm
• Oil Pump: 22 GMP, 2-stage; Oil Tank Capacity: 50 L
• Firewood Conveyor: 3.2 m length; belt width 250 mm; chute width 400 mm; hydraulic rotator included
• Chain Saw: 1.2 m length; 5600 rpm; adjustable sawing speed
• Control Valve: One-handle, 4-directional
• Tyres: 12"
• Knife: 4-way (6-way optional)
• Weight: approx. 480–510 kg
• Packaging sizes: Main 2200 × 900 × 1100 mm; Conveyor 2260 × 960 × 1170 mm
