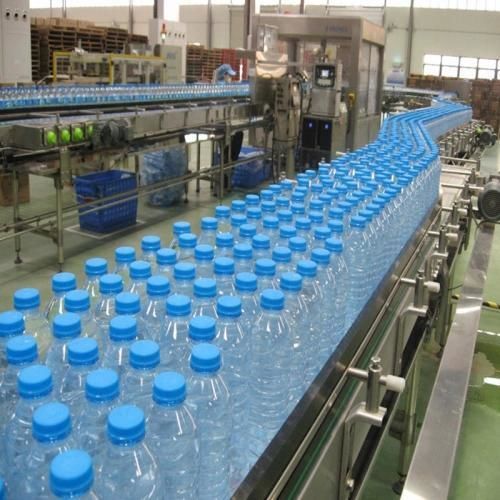

Bottle rinser-filler-capper YG series

bottlefor PET bottlesspray

Overview
This series of bottle water filling machines is designed for small to medium bottled water production lines. The monoblock 3-in-1 configuration (rinse-fill-cap) integrates rinsing, accurate liquid dosing and capping to reduce footprint and simplify operation.

Where these machines are used

• Small drinking water plants: Packing purified water, mineral water or spring water.
• Beverage processing workshops: Handling plain water, flavored liquids or juice without pulp.
• Custom label water studios: Producing branded bottles for hotels, events and offices.

How it works (basic 3-in-1 monoblock flow)

• Rinsing: High-pressure nozzles spray aseptic water inside inverted bottles to remove dust and particles.
• Filling: Precision valves meter the specified volume into each bottle to minimize splashing and overfill.
• Capping: Magnetic or mechanical heads place and tighten caps to ensure sealing and limit air ingress.

Product parameters (table)
Model | YG8-8-3 | YG14-12-4 | YG18-18-6 | YG24-24-6 | YG32-32-8 | YG40-40-10
Capacity (for 500ml) | 2000 | 3000-4000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000
Suitable bottle shapes | PET circular or square (applies to all models)
Bottle diameter (mm) | Dia50-Dia115 (applies to all models)
Bottle height (mm) | 160-320 (applies to all models)
Compressor air | 0.3-0.7 MPa (applies to all models)
Washing medium | Aseptic water (applies to all models)
Rinsing pressure | >0.06 MPa <0.2 MPa (applies to all models)
Application | Small and medium water bottling plants, beverage workshops, custom-labeled bottled water production
Total power (KW) | 4.4 kW (YG8-8-3, YG14-12-4, YG18-18-6) / 5.2 kW (YG24-24-6) / 6.2 kW (YG32-32-8) / 7.8 kW (YG40-40-10)
Overall dimensions (L*W) | 2.3*1.9m (YG8-8-3) / 2.5*1.9m (YG14-12-4) / 2.8*2.15m (YG18-18-6) / 3.1*2.5m (YG24-24-6) / 3.8*2.8m (YG32-32-8) / 4.5*3.3m (YG40-40-10)
Height | 2.3m (YG8-8-3) / 2.5m (others except YG40 which is 2.6m)
Weight (kg) | 2500kg (YG8-8-3) / 3200kg (YG14-12-4) / 4000kg (YG18-18-6) / 4500kg (YG24-24-6) / 6500kg (YG32-32-8) / 8000kg (YG40-40-10)

Technical features / specifications

• Models available: YG8-8-3; YG14-12-4; YG18-18-6; YG24-24-6; YG32-32-8; YG40-40-10.
• Production capacity (500ml): from 2,000 to 18,000 bottles per hour depending on model.
• Suitable bottle materials and shapes: PET, circular or square.
• Bottle size range: diameter Dia50–Dia115 mm; height 160–320 mm.
• Air supply requirement: compressor 0.3–0.7 MPa; rinsing pressure >0.06 MPa and <0.2 MPa.
• Washing medium: aseptic water recommended.
• Total electrical power: from 4.4 kW up to 7.8 kW depending on model.
• Footprint and installation space: overall dimensions vary by model (see table rows above).
• Typical application: small and medium water bottling plants, beverage workshops, and custom labeled bottled water production.
• Design note: common small/medium lines use a 3-in-1 monoblock (rinse-fill-cap) for compactness and ease of operation.
