Logistic container

for the construction industrycarbon steelcustom-made

Overview

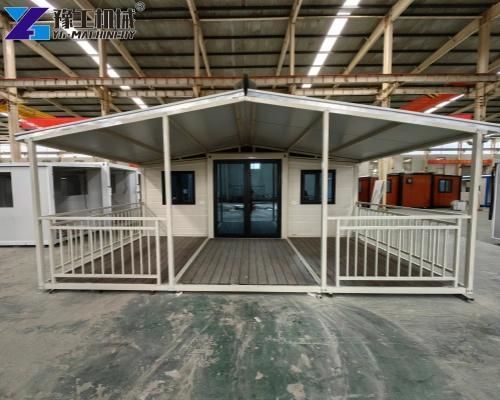

A 2-bed 2-bath container home is a modular prefabricated dwelling built on a Q235 steel frame with EPS sandwich wall panels. The unit is delivered with doors, windows, fitted kitchen cabinets, bathroom fixtures, electrical outlets and water piping included as standard. The 40ft variant accommodates two full bathrooms with showers; the 20ft variant can be configured with two bathrooms without showers on request. This modular solution reduces construction time by over 60% and can lower total costs by more than 40% compared with conventional builds. Expected service life up to 10 years under normal use. Modular layout allows easy expansion or renovation.

Main features

• Modular prefabricated design for rapid on-site assembly.
• Main frame material: Q235 steel for structural stability.
• Wall panels: EPS sandwich panels (polystyrene), compliant with international environmental standards and odor-free.
• 40ft model supports two full bathrooms with showers; 20ft model configurable with two bathrooms without showers.
• Standard inclusions: doors, windows, kitchen cabinets, bathroom fixtures, electrical outlets and water pipes.
• Optional configurations: gable roofs, terraces, glass curtain walls, two-storey layouts and decorative metal panels; foldable container option for enhanced transportability.
• Typical installation time: 40ft unit assembled in approximately 8–12 hours; 20ft variants typically faster.
• Designed for windproof, soundproof and moisture-resistant performance in demanding environments.

Container Home Parameters
20FT Basic Characteristics
External dimension (mm): W6320 × L5900 × H2480 (Side 2270)
Internal dimension (mm): W6160 × L5560 × H2240 (Side 2150)
Folded state (mm): W2200 × L5900 × H2480
Total mass (kg): 2500

40FT Basic Characteristics
External dimension (mm): W6240 × L11800 × H2480 (Side 2180)
Internal dimension (mm): W6080 × L11540 × H2200 (Side 2060)
Folded state (mm): W2200 × L11800 × H2480
Total mass (kg): 4400

Applications

• Residential: compact permanent homes or vacation houses with optional gable roofs and terraces.
• Disaster relief and temporary shelters: rapid deployment (can be set up within 24 hours) with full bathroom facilities for affected families.
• Commercial and workplace housing: remote site accommodations, mining dormitories and construction camps requiring durable, weather-resistant units.
• Educational and institutional use: temporary campus housing or prefabricated student accommodation as an alternative to traditional dormitories.

Customization & transport

• Customization options include gable roofs, terraces, glass curtain walls, two-storey configurations, decorative metal panels and foldable container variants for mobility.
• Foldable designs reduce transport volume and can improve logistics efficiency and cost-effectiveness.

Technical specifications

• Main frame material: Q235 steel.
• Wall panel material: EPS sandwich panels (polystyrene), meeting international environmental standards.
• Standard inclusions: doors, windows, kitchen cabinets, bathroom fixtures, electrical outlets and water piping.
• 40ft model internal dimensions: W6080 × L11540 × H2200 mm (side 2060 mm); total mass approx. 4400 kg.
• 20ft model internal dimensions: W6160 × L5560 × H2240 mm (side 2150 mm); total mass approx. 2500 kg.
• Folded transport dimensions: 20ft W2200 × L5900 × H2480 mm; 40ft W2200 × L11800 × H2480 mm.
• Installation time: 40ft unit assembled in roughly 8–12 hours; 20ft typically faster.
• Service life: up to 10 years under normal use with routine maintenance.
• Performance: windproof, soundproof, moisture-resistant; suitable for long-term or temporary deployment.
• Efficiency: saves over 60% construction time and can reduce total costs by more than 40% versus traditional construction.
