Metal sheet vacuum lifting device YG-LD series

glass platefor flat partsfor wooden sheets

Overview

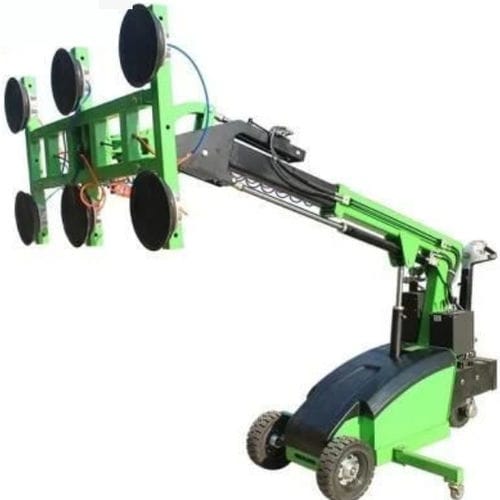

The vacuum glass lifter YG-LD series is a mobile, vacuum-based lifting and handling solution for glazing, stone, marble and façade installation. Constructed with a one-piece molded aluminum alloy body for corrosion resistance and strength. Available models cover load capacities from 300 kg to 800 kg and are designed to reduce on-site labor and improve installation safety and productivity.

Core Technical Advantages

• Double-circuit vacuum system with DC drive and built-in vacuum accumulator to preserve vacuum in case of power interruption for safe emergency holding.
• Imported silicone suction cups (Ø300 mm) offering strong adhesion and anti-aging performance in varying weather conditions.
• Smart handle control with real-time display of main power and battery levels to inform the operator.
• High manoeuvrability: suction frame supports 360° rotation and 180° side tilt; reinforced telescopic boom to manage complex angles.

Applications / Usages

• High-rise curtain walls: precise handling and installation of large tempered glass panes at height.
• Heavy stone handling: transport and placement of granite, marble and other dense materials.
• Industrial workshops: internal turnover and movement of flat plates (steel, aluminium).
• Interior fit-out: electric travel and compact footprint allow installation of large mirrors in confined indoor spaces.

Glass Sucker Machine Parameter
Model Type: YG-LD-300 / YG-LD-400 / YG-LD-500 / YG-LD-600 / YG-LD-800
Load Capacity: 300kg(retract)/150kg(extend) / 400kg(retract)/200kg(extend) / 500kg(retract)/250kg(extend) / 600kg(retract)/300kg(extend) / 800kg(retract)/400kg(extend)
Lifting Height: 3500mm / 3500mm / 3700mm / 3700mm / 4500mm
QTY of Suction Cap: 4pcs / 4pcs / 6pcs / 6pcs / 8pcs
Rubber Suction Cap Diameter: Ø300mm / Ø300mm / Ø300mm / Ø300mm / Ø300mm
Maintenance-free Battery: 2x12V/80AH / 2x12V/100AH / 2x12V/120AH / 2x12V/120AH / 2x12V/120AH
Battery Charger: Smart Charger (all models)
Drive Motor: 24V/1200W (all models)
Lifting Motor: 24V/2000W/6L / 24V/2000W/6L / 24V/2000W/6L / 24V/2000W/6L / 24V/2000W/12L
Chassis L*W: 2660*810mm / 2660*810mm / 2800*810mm / 2800*810mm / 2800*810mm
Driving Wheel: Ø250x80mm / Ø250x80mm / Ø300x100mm / Ø300x100mm / Ø300x125mm
Packing Size (mm): 2560*1030*1700 / 2560*1030*1700 / 2580*1050*1700 / 2580*1050*1700 / 3000*1250*2300
N.W/G.W: 1100/1150kg / 1280/1330kg / 1300/1350kg / 1400/1450kg / 1600/1650kg
Loading Qty: 1x20GP/40GP: 6SETS/12SETS
Movement (Automatic - 4 kinds): 1. Suction cup frame flips 180° electrically. 2. Support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. Base of whole machine moves 100-150mm horizontally.
Movement (Manual - 2 kinds): 1. Suction cup holder manual rotation 90° (electrically powered optional). 2. Suction cup holder manual rotation 360° (electrically powered optional).
Usages (summary): Mainly used for handling, movement and installation of materials such as glass, marble, wood, iron plate, etc.

Technical specifications

• Series: YG-LD series (models: YG-LD-300, YG-LD-400, YG-LD-500, YG-LD-600, YG-LD-800)
• Load capacity per model: 300 kg up to 800 kg (retract/extend values as listed)
• Lifting height range: 3500 mm to 4500 mm depending on model
• Suction cups: Ø300 mm silicone cups with independent vacuum control valves per cup
• Battery: maintenance-free lead-acid battery configurations with smart charger
• Drive motor: 24V/1200W; lifting motor: 24V/2000W (varies by model)
• Chassis and wheel sizes vary by model; packing dimensions and weights specified per model
• Movement modes: multiple automatic functions and manual rotation options (90°/360°)
• Main applications: curtain wall installation, heavy stone handling, industrial plate handling, interior installation work
