Mobile scissor lift YG series

wheeledsemi-mobilecrawler

Overview
Selecting a scissor lift requires balancing required working height, platform capacity and site conditions. Fully electric wheeled scissor lifts improve operational efficiency and reduce manual effort, while semi-automatic mobile hydraulic models lower acquisition cost. YG Machinery scissor lift family uses high-strength manganese steel for platform and scissor stability; the shown models provide platform-up heights from approximately 5.8 m to 13.7 m with alternative configurations available for other heights.

Key product types and highlights

• Fully automatic wheeled platforms: operator drives and steers from the platform; PLC control and solenoid valves; typically lead-acid battery powered; models under 10 m often move without outriggers for greater agility.

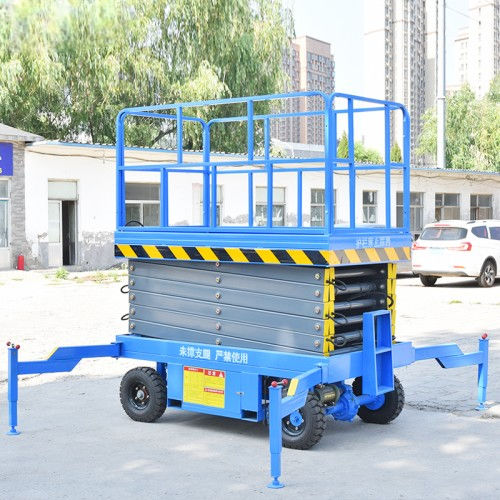

• Semi-auto mobile hydraulic lift platforms: cost-effective; travel by manual push/pull while lifting is hydraulic; include 4 mechanical outriggers for stability; units under 10 m can be moved by one person on level ground.
• Crawler (all-terrain) scissor lifts: track-equipped for increased ground contact; recommended for uneven, soft or rocky terrain to reduce tipping risk and improve stability.

Core technical and operational points
Typical drive systems use 24 V with lifting motors from 3.3 kW to 4.5 kW depending on model. Platform dimensions vary by model, with common sizes from about 1.67 × 0.74 m to 2.64 × 1.12 m. Rated platform loads in the range of approximately 230 kg to 450 kg are shown; machine weights range from about 1,580 kg to 3,600 kg. Safety features include mechanical outriggers for semi-auto units and optional outriggers or stabilizing legs on taller wheeled platforms.

Manufacturing, quality and after-sales highlights

• Each unit is subject to heavy-load stress testing (example: 48-hour heavy-load test) before shipment.
• Certifications: ISO9001 and EU CE (where applicable).
• Standard warranty example: 2 years; customization options include voltage, color and tailored configurations.

Technical parameters (table)
Model | Up (m) | Load (kg) | Platform size (m) | Outline dimensions / guardrail folding (m) | Lifting motor | Weight (kg)
YG0608SP | 5.8 | 230 | 1.67*0.74 | 1.86*0.76*1.84 | 24v/3.3kw | 1580
YG0608 | 6 | 450 | 2.27*1.12 | 2.48*1.19*1.66 | 24v/3.3kw | 2170
YG0810NP | 8 | 230 | 2.27*0.81 | 2.48*0.83*1.99 | 24v/3.3kw | 2260
YG0810 | 8 | 450 | 2.27*1.12 | 2.48*1.19*1.78 | 24v/3.3kw | 2360
YG1012 | 10 | 320 | 2.27*1.12 | 2.48*1.19*1.91 | 24v/3.3kw | 2640
YG1214 | 11.8 | 320 | 2.27*1.12 | 2.48*1.19*2.03 | 24v/4.5kw | 2980
YG1416 | 13.7 | 230 | 2.64*1.12 | 2.85*1.25*2.105 | 24v/4.5kw | 3600

Technical specifications

• Working heights shown: approx. 5.8 m to 13.7 m (shown models); other heights available on request.
• Rated platform loads: typical values 230 kg, 320 kg, 450 kg depending on model.
• Platform sizes: from about 1.67 × 0.74 m to 2.64 × 1.12 m.
• Lifting motors: 24 V, 3.3 kW or 4.5 kW depending on model.
• Machine weights: approx. 1,580 kg to 3,600 kg depending on configuration.
• Safety and stability: mechanical outriggers standard on semi-auto units; wheeled units may include optional outriggers for taller models.
• Variants: fully automatic wheeled, semi-auto mobile hydraulic, crawler/all-terrain, plus alternative access solutions (electric scaffolds, boom lifts) for specific reach or indoor requirements.
