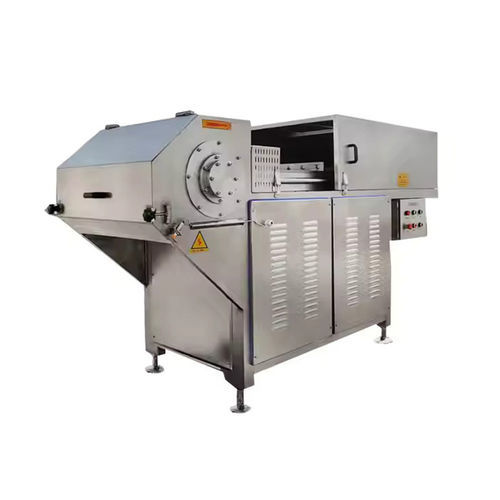

Frozen meat flaking machine DP530

Main Specifications:

• Model: DP530
• Size: 2500*1000*1250mm
• Main material: SUS304 stainless steel
• Power: 11 kW
• Capacity: 2000-3000 kgs/hr
• Driving method: Pneumatic driving
• Size of meat material: 600*500*200mm Max

Introduction:
Frozen meat block flaker is also named as frozen meat flaker, meat crusher machine. Used for beef, pork, lamb meat and cheese frozen at around -18 degrees Celsius in cold storage, splitting these large blocks into small flakes.

Characteristics / spécifications techniques:

• Model designation: DP530
• Overall dimensions: 2500 x 1000 x 1250 mm
• Construction material: SUS304 stainless steel
• Installed power: 11 kW
• Processing capacity: 2000–3000 kg/h
• Actuation: Pneumatic driving system
• Maximum size of input frozen block: 600 x 500 x 200 mm
• Typical application: Flaking of frozen beef, pork, lamb and cheese at approx. -18°C
