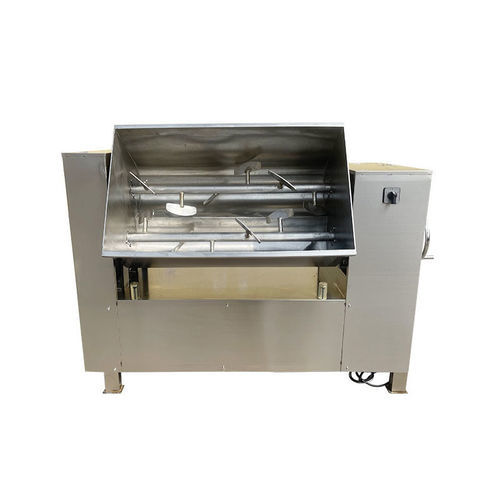

Stainless steel meat mixer BX series

Product overview
The TOPCLA BX series meat mixer is designed for uniform mixing of minced meat and fillings. It eliminates air bubbles, preserves bright color and improves elasticity of meat mixtures. Suitable for granular and paste products as well as vegetable fillings in industrial food production.

Main specifications
Model/Index — Power — Overall Size — Capacity — Main Material — Speed — Discharge
BX50 — 1.1 kW — 1100*520*880 mm — 25-30 kgs/batch — SUS304 SS — 45 rpm / converter control — Manual/Automatic
BX100 — 2.2 kW — 1100*620*980 mm — 50-65 kgs/batch — SUS304 SS — 45 rpm / converter control — Manual/Automatic
BX150 — 2.2 kW — 1200*650*1000 mm — 75-100 kgs/batch — SUS304 SS — 45 rpm / converter control — Manual/Automatic
BX200 — 3 kW — 1400*650*1000 mm — 100-130 kgs/batch — SUS304 SS — 45 rpm / converter control — Manual/Automatic
BX300 — 4 kW — 1500*760*1100 mm — 160-200 kgs/batch — SUS304 SS — 45 rpm / converter control — Manual/Automatic

Introduction
The BX series mixes minced meat tightly to avoid entrapped air, resulting in consistent texture, improved color and good elasticity. The equipment adapts to a range of formulations including coarse and paste meat products and plant-based fillings, making it suitable for sausage production and other processed meat lines.

Additional information
Video demonstration available showing operation, discharge modes and typical applications.

Technical specifications

• Brand/Manufacturer: TOPCLA
• Model series: BX series (examples: BX50, BX100, BX150, BX200, BX300)
• Power range: 1.1 kW to 4 kW depending on model
• Capacity range: ~25 kg/batch up to ~200 kg/batch depending on model
• Construction material: SUS304 stainless steel
• Mixing speed: 45 rpm with converter control
• Available discharge modes: Manual or Automatic
• Overall sizes vary by model (dimensions provided per model above)
• Applications: mixing minced meat, sausage production, granular and paste meat, vegetable fillings
