Meat cutting machine QT105
Add to favorites
Compare this product
Description
Introduction:
Main features:
Technical specifications:

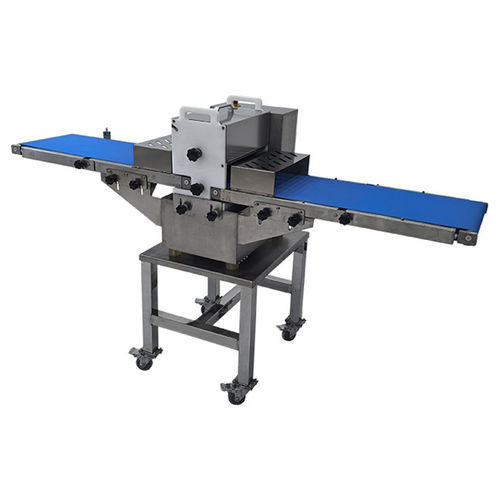

- The QT105 fresh meat strip cutter is designed to cut whole fresh meat into uniform strips or thin slices for food processing lines. It is suitable for meat processing plants, ready-meal manufacturers, butcheries and industrial kitchens. The machine performs vertical cutting with an automatic infeed conveyor for continuous operation.
Main features:
- Adjustable cutting thickness: cutting size adjustable from 5 to 100 mm by changing blade spacing or blade sets.
- Automatic conveying: powered conveyor belt (max width 230 mm) for stable product flow and reduced manual handling.
- Food-grade construction: main contact parts in SUS304 stainless steel for corrosion resistance and compliance with food processing environments.
- Operator safety: fitted with safety protection devices and emergency stop to protect personnel during operation and maintenance.
- Maintenance friendly: blade sets are removable for quick cleaning and replacement to switch between cutting specifications.
Technical specifications:
- Model: QT105
- Type: Vertical cutting
- Overall size: 1600 × 660 × 960 mm
- Main material: SUS304 stainless steel
- Power: 2.2 kW
- Capacity: 400–800 kg/h (depending on product and settings)
- Cutting size: 5–100 mm (adjustable)
- Conveyor width: up to 230 mm
