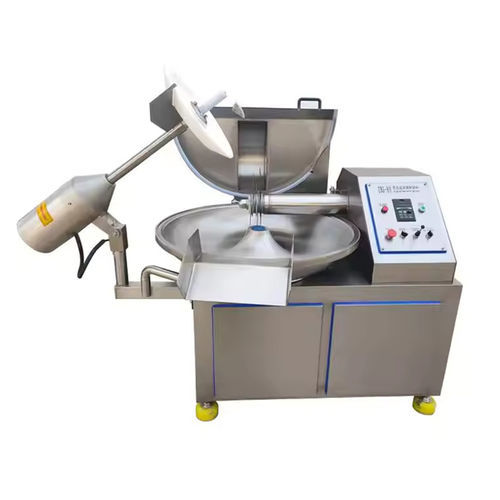

Industrial bowl cutter ZB series

high-speed rotatinghigh-efficiency

Introduction:
The ZB series bowl cutter (also called bowl cutter mixer) is designed for industrial meat and vegetable processing. It uses high-speed rotation of blades and a stainless-steel bowl to chop, mix and emulsify products into fine puree or paste for sausages, pâtés, fillings and prepared foods.

Applications:

• Industrial meat processing (sausage and emulsified products)
• Vegetable purees, fillings and sauces
• Food production lines requiring uniform particle size and homogeneous mixing

Features:

• Low noise operation with high efficiency and energy-saving design.
• Blades and bowl manufactured in SUS304 food-grade stainless steel for hygiene and corrosion resistance.
• Two-speed bowl allows flexible processing; blade speeds selectable to match product requirements.
• Optional discharge systems for semi- or fully automated unloading; designed for easy cleaning and maintenance.

Main specifications:

• ZB20: Power 2.75 kW; Overall size 880×620×900 mm; Capacity 10 kg/batch; Material SUS304 stainless steel; Blade speed 1440/2980 rpm; Discharge: Optional.
• ZB40: Power 5.1 kW; Overall size 1210×820×1100 mm; Capacity 20 kg/batch; Material SUS304 stainless steel; Blade speed 1440/2980 rpm; Discharge: Optional.
• ZB80: Power 13.1 kW; Overall size 2200×1300×1300 mm; Capacity 40 kg/batch; Material SUS304 stainless steel; Blade speed 1680/3450 rpm; Discharge: With.
• ZB125: Power 23 kW; Overall size 2400×1500×1600 mm; Capacity 65 kg/batch; Material SUS304 stainless steel; Blade speed 1800/3600 rpm; Discharge: With.
