Meat dicer QD seriesfor cheesehigh-capacitystainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- for meat, for cheese
- Other characteristics
- high-capacity, stainless steel
- Cadence
Min.: 300 kg/h
(661.39 lb/h)Max.: 800 kg/h
(1,763.7 lb/h)- Power
Min.: 2.25 kW
(3.06 hp)Max.: 3 kW
(4.08 hp)
Description
Main specifications:
Introduction:
Applications:
Technical specifications:
- Model: QD350
- Overall size: 1500×800×980 mm
- Voltage: 220V/380V, 50HZ/60HZ (or others)
- Power: 2.25 kW
- Capacity: 300-500 kgs/hour
- Cutting size: 4-41 mm, adjustable
- Size of feeding chamber: 85×85×410 mm
- Main material: SUS304 stainless steel
- Model: QD550
- Overall size: 1900×980×1100 mm
- Voltage: 220V/380V, 50HZ/60HZ (or others)
- Power: 3 kW
- Capacity: 600-800 kgs/hour
- Cutting size: 10-60 mm, adjustable
- Size of feeding chamber: 120×120×600 mm
- Main material: SUS304 stainless steel
Introduction:

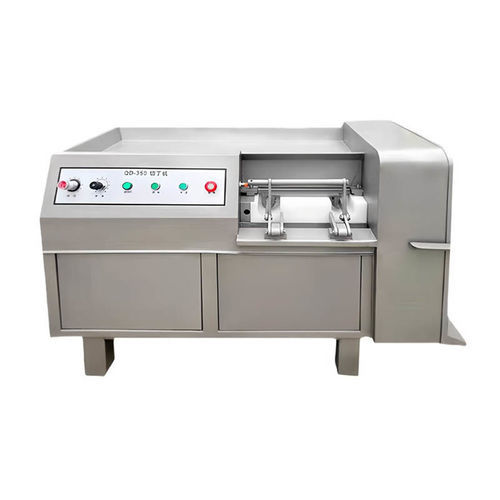

- Meat dicer machine (also named cube meat dicing machine) is made of SUS304 stainless steel.
- Cutting thickness is adjusted by hydraulic pressure to meet different product requirements.
- Blades are sharp to provide smooth, uniform cuts and an attractive product appearance.
- Suitable for cutting fresh meat and frozen meat with temperature above -10 ℃.
Applications:
- Light frozen meat
- Fresh meat
- Light frozen cheese
Technical specifications:
- Available models: QD350, QD550 (QD series)
- Construction material: SUS304 stainless steel
- Adjustable cutting sizes: QD350 = 4-41 mm; QD550 = 10-60 mm
- Electrical: 220V/380V, 50HZ/60HZ (other voltages available)
- Power: QD350 = 2.25 kW; QD550 = 3 kW
- Capacity range: QD350 = 300-500 kg/h; QD550 = 600-800 kg/h
- Feeding chamber dimensions: QD350 = 85×85×410 mm; QD550 = 120×120×600 mm
- Overall machine dimensions: QD350 = 1500×800×980 mm; QD550 = 1900×980×1100 mm
- Suitable for dicing fresh and lightly frozen products (temperature ≥ -10 ℃)
