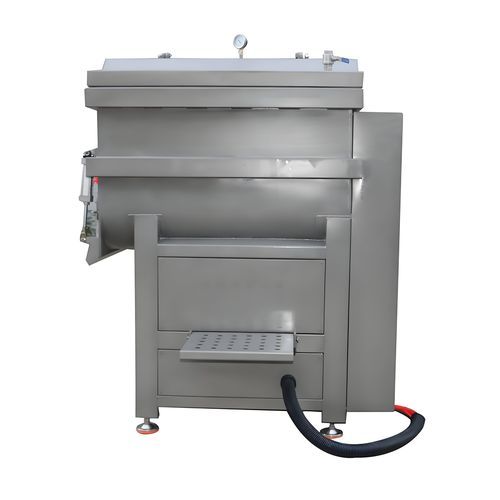

Vacuum meat mixer BX series

stainless steel

Introduction: The BX series vacuum meat mixer is a vacuum mixing and filling machine designed for industrial food processing. It provides homogeneous mixing of meat, sausage, seafood and vegetable ingredients while reducing air incorporation and ensuring consistent batch results.

Main uses:

• Mixing and blending of fresh and processed meat and sausage formulations
• Preparation of meat fillings and stuffings for sausages
• Mixing seafood and vegetable ingredients for ready meals and processed products

Models and main specifications:

• BX50Z — Power: 2.95 kW; Size: 890×640×1080 mm; Capacity: 25–30 kgs/batch; Material: SUS304; Speed: 45 rpm (inverter control); Discharge: Automatic
• BX100Z — Power: 2.95 kW; Size: 1020×750×1260 mm; Capacity: 50–65 kgs/batch; Material: SUS304; Speed: 45 rpm (inverter control); Discharge: Automatic
• BX150Z — Power: 3.75 kW; Size: 1170×750×1270 mm; Capacity: 75–100 kgs/batch; Material: SUS304; Speed: 45 rpm (inverter control); Discharge: Automatic
• BX200Z — Power: 3.75 kW; Size: 1400×850×1300 mm; Capacity: 100–130 kgs/batch; Material: SUS304; Speed: 45 rpm (inverter control); Discharge: Automatic
• BX300Z — Power: 4.00 kW; Size: 1720×950×1400 mm; Capacity: 160–200 kgs/batch; Material: SUS304; Speed: 45 rpm (inverter control); Discharge: Automatic

Notes: Multiple BX-series capacities and sizes are available to match production volumes. Standard mechanical speed is 45 rpm with inverter/converter control to provide stable, repeatable mixing cycles and smooth automatic discharge.

Technical specifications:

• Model series: BX series
• Main material: SUS304 stainless steel (food-grade)
• Power range: 2.95–4.00 kW (model dependent)
• Capacity range: 25–200 kgs per batch (model dependent)
• Operational speed: 45 rpm (inverter control)
• Discharge: Automatic discharge system
• Primary applications: meat, sausage, seafood and vegetable mixing
• Operation mode: Automated vacuum mixing equipment for food processing lines
