Industrial meat mincer JR seriesbeefporkfish
Add to favorites
Compare this product
Characteristics
- Minced product
- meat, beef, pork, poultry, fish, vegetable
- Type
- fresh meat, frozen meat
- Installation
- floor-standing
- Application domain
- for the meat industry, for the food industry
- Other characteristics
- stainless steel
- Output
Max.: 5,000 kg/h
(11,023.11 lb/h)Min.: 500 kg/h
(1,102.31 lb/h)- Motor power
5.5 kW, 7.5 kW, 11 kW, 13.5 kW, 30 kW, 37 kW, 45 kW, 55 kW
(7.48 hp, 10.2 hp, 14.96 hp, 18.35 hp, 40.79 hp, 50.31 hp, 61.18 hp, 74.78 hp)- Length
980 mm, 1,100 mm, 1,210 mm, 1,350 mm, 1,400 mm, 1,500 mm
(39 in, 43 in, 48 in, 53 in, 55 in, 59 in)- Width
550 mm, 650 mm, 710 mm, 1,000 mm, 1,200 mm, 1,300 mm, 1,350 mm
(22 in, 26 in, 28 in, 39 in, 47 in, 51 in, 53 in)- Height
Min.: 900 mm
(35 in)Max.: 1,650 mm
(65 in)
Description
Main specifications:
Introduction:

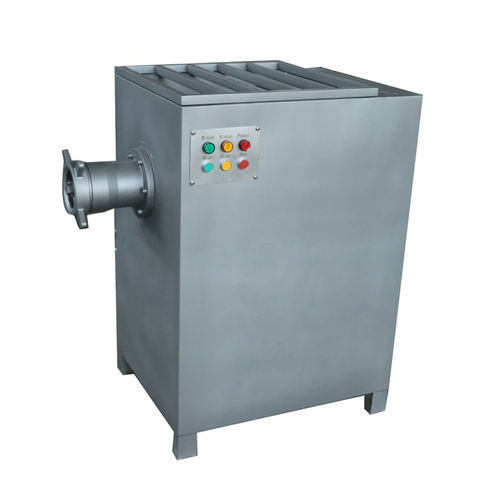

The JR series industrial meat grinder is constructed from SUS304 stainless steel with alloy components and uses a special triple‑mesh cutting system. It reduces fresh or frozen meat into small particles through progressive grinding and can simultaneously incorporate powdered seasonings. The design emphasizes compact layout and stable operation for continuous processing in food production lines.
Applications:
Technical features / specifications:
- JR100 — Power: 5.5 kW; Overall size: 980×550×900 mm; Capacity: 500–800 kg/h; Material: SUS304 stainless steel; Auger: 100 mm
- JR120 — Power: 7.5 kW; Overall size: 1100×650×1000 mm; Capacity: 1000–1300 kg/h; Material: SUS304 stainless steel; Auger: 120 mm
- JR130 — Power: 11 kW; Overall size: 1210×710×1130 mm; Capacity: 1500–1800 kg/h; Material: SUS304 stainless steel; Auger: 130 mm
- JR160 — Power: 13.5/30 kW; Overall size: 1350×1000×1500 mm; Capacity: 2000–2300 kg/h; Material: SUS304 stainless steel; Auger: 160 mm
- JR200 — Power: 30 kW; Overall size: 1400×1200×1550 mm; Capacity: 2500–2800 kg/h; Material: SUS304 stainless steel; Auger: 200 mm
- JR250 — Power: 37/45 kW; Overall size: 1400×1300×1650 mm; Capacity: 3500–4000 kg/h; Material: SUS304 stainless steel; Auger: 250 mm
- JR300 — Power: 45/55 kW; Overall size: 1500×1350×1650 mm; Capacity: 4500–5000 kg/h; Material: SUS304 stainless steel; Auger: 300 mm
Introduction:
The JR series industrial meat grinder is constructed from SUS304 stainless steel with alloy components and uses a special triple‑mesh cutting system. It reduces fresh or frozen meat into small particles through progressive grinding and can simultaneously incorporate powdered seasonings. The design emphasizes compact layout and stable operation for continuous processing in food production lines.
Applications:
- Frozen meat
- Fresh meat
- Chicken meat
- Duck meat
- Pig skin
- Cow skin
- Chicken skin
- Fish
- Fruits
- Vegetables
Technical features / specifications:
- Series: JR series (models available: JR100, JR120, JR130, JR160, JR200, JR250, JR300)
- Construction: SUS304 stainless steel housing and alloy components suitable for food processing
- Cutting system: Special triple mesh design for consistent particle size on fresh or frozen inputs
- Functions: Fine chopping, mixing with seasonings, adjustable granulometry
- Power by model: JR100 (5.5 kW), JR120 (7.5 kW), JR130 (11 kW), JR160 (13.5/30 kW), JR200 (30 kW), JR250 (37/45 kW), JR300 (45/55 kW)
- Capacity by model: JR100 (500–800 kg/h), JR120 (1000–1300 kg/h), JR130 (1500–1800 kg/h), JR160 (2000–2300 kg/h), JR200 (2500–2800 kg/h), JR250 (3500–4000 kg/h), JR300 (4500–5000 kg/h)
- Auger sizes: 100 mm to 300 mm depending on model
- Dimensions: Typical overall dimensions provided per model as listed in main specifications
