JOFRA DPC-500 PRESSURE CALIBRATOR
Portable and still efficient like a laboratory instrument
With the high resolution, compact JOFRA DPC-500 documenting pressure calibrator new standards are reached within pressure calibration. Designed for high precision calibration of pressure instruments such as pressure gauges, transmitters, digital manometers, pressure switches and overpressure valves, the DPC-500 offers improved pressure accuracy (± 0.025% FS), better electrical current (± 1.6 ěA) and voltage (± 0.5 mV) accuracy and an extended pressure range of 250 mbar to 1000 bar FS. The DPC-500 also offers absolute pressure measurement from 0.4 to 16 bar absolute.
|
|
Why carry a toolbox of gauges and modules? When a Crystal 30 series calibrator can do the whole job!
- small enough to fit in your shirt pocket, everything is built in
- aluminum case and stainless steel sensors make it very tough
- gas or liquid compatible
- most versatile, capable of measuring pressure from millimeters of water to 200 bar and vacuum without extra modules
- accuracy of 0.05% of reading
- calibrated in an environment chamber, duplicating field conditions
- intrinsically safe
- has an RS-232 port and carrying case
- 9V battery provides 90 hrs of operation
- competitively priced
Pressure is Our Business!
|
|
Model : HCK
Calibration : 70...700 bar
Other features : available with PC6 PRO
|
|
Model : PCK
Calibration : -1...35 bar
Other features : available with PC6 PRO
|
|
The JOFRA range of IPI Industrial Pressure Indicators is ATEX and CSA certified for use in potentially explosive environments in the field or in calibration laboratories. ATEX is the primary intrinsically safe standard in the European Union, while CSA refers to relevant Canadian and USA standards.
Accurate to ± 0.05% FS, the IPI can be used as a calibration reference or in applications where high accuracy pressure measurement is required from safety valve checks to system pressure verification. This Ex certification will allow the IPI to be used in any industry where there is a risk of flammable gases. These include oil refineries, off-shore platforms, chemical plants, gas production plants, oil and gas shipping, pharmaceuticals and in whisky distilleries. |
|
Primary standards - Pneumatic deadweight testers - Hydraulic deadweight testers - Digital pressure calibrators -Dial gauge comparators - Digital handheld test systems - Pneumatic and hydraulic pumps
Convenient electronic systems ranging from -1 to 700 bar (25 inHg to 10,000 psi) - multiple choices of pressure ranges, pumps, and accuracies, fully temperature- compensated for problem-free and accurate field use. |
|
Building on the legacy of the renowned Heise® precision dial pressure gauge, the Heise‚ product line has grown to include high accuracy state-of-the-art digital output pressure transducers, analog pressure transducers, digital pressure indicators and handheld pressure/temperature calibrators.
Innovations such as modular sensor design and digital output transducer technology continue to make Heise‚ the preferred instrument for critical pressure measurement applications.
Behind every Heise‚ product is a modern manufacturing facility certified to ISO9001 with NIST traceable standards maintained in accordance with ANSI/NCSL Z-540-1 and MIL-STD-45662A. In addition, a knowledgeable technical support staff is available to assist you, both before and after your purchase.
|
|
The leak / flow calibrator allows the checking of the calibration of leak and flow measurement instruments, as well as calibrated leaks and jets. This portable, compact and user friendly instrument is essential for checking the accuracy and repeatability of all leak and flow testers. You can now guarantee the quality of your products, whilst also complying with requirements such as ISO 9000
|
|
Introduction
Beamex's range of portable MC-calibrators for field calibration is known for their accuracy, versatility and also for meeting both high and uncompromised quality standards. Accuracy is assured when you decide to buy any of Beamex's portable MC-calibrators, because they all come with a traceable, accredited calibration certificate.
Benefit from using Beamex calibrators:
* Very high accuracy
* Simple to use
* All-in-one functionality
* Robust casing
* Customization possibilities
* Extensive after-sales services
|
|
Electronic Pressure Calibrator as precision reference instrument for pressure comparison calibration purposes:
Ranges: mbar-ranges up to +4000 bar
Gauge Pressure, Absolute Pressure, Vacuum
Accuracy up to ±0.025% FS
For portable or stationary use.
- Type LDM70-K50: Accuracy ±0.5% FS
- Type LDM70-E25: Accuracy ±0.25% FS
- Type TLDMM-A02: Accuracy ±0.2% FS
- Type TLDMM-A01: Accuracy ±0.1% FS
- Type TLDMM: Accuracy ±0.05% FS
- Type LPC 300: Accuracy ±0.025% FS
- Type LPC 200: Accuracy ±0.025% FS or 0.1% of reading |
|
We help you, if you are under pressure!
A suitable pressure calibrator for any application
Pneumatic and hydraulic pressure calibrators of series PM... and PC... distinguish themselves especially by high accuracy of measurement and compact type of construction.
The calibrators are used in the field or laboratory, production and service for inspection or calibration of pressure sensors,
gauges, pressure switches and by-pass valves. Reference pressures of -1 up to 700 bar can be generated in a fast and simple way. |
|
* Low pressure Calibrator / Controller
* Accuracy < 0.1% of reading
* Pressure generation 0.5Pa to 20kPa.
* High contrast colour TFT display.
* Dual range (1:20,000 resolution per range)
* SCPI communications via GPIB or RS232
The FCO550 provides the perfect answer to your calibration laboratory needs where accurate calibration of pressures below 20kPa is essential.
The FCO550 uses a dynamic pressure source to eliminate the drift problems associated with sealed systems.
Inputs for voltage and current measurement allow for immediate calculation and display of calibration errors for the device under test.
Automated calibrations can be controlled through the user control panel or remotely via a PC. Easy interfacing to popular software packages such as LABVIEW, HPVEE, etc, are possible due to implementation of the industry standard SCPI protocol. |
|
A Pitot Static tester is a pressure generator and pressure measurement instrument which can simulate altitude and speed of aircraft on-board equipments.
Flying conditions need to be simulated on on-board equipments when they are manufactured, repaired, or integrated to the aircraft.
ATEQ-OMICRON has developed two kinds of Pitot Static testers:
• For workshop to test on-board instruments when they are manufactured, repaired or calibrated.
• For hangar or tarmac to verify instrument directly on aircraft. |
|
The leaks digital calibrator takes its origins by the needs to know the leak-off rate entity on volumetric terms [cc/min] or [cc/h].
Such requirement exists especially when tests are executed on air and gas sectors parts, on which the norms express the
leakage rates in [cc/min] or [cc/h].
The instrument is combined with a micrometrical cock (supplied in the equipment) in order to simulate the desired leak. ET11 allows the seal tests instrumentation parameters programming procedure.
This flow measure instrument utilizes a mass flow sensor and it is able to point out with precision and reliability the leakage
rates contained between 0,00 and 30,0 [cc/min].
This portable instrument, with compact dimensions and simple usage, is essential to verify the measure instruments and nozzles samples calibration and repeatability.
Compact dimensions:
ET11 is a portable instrument with extremely reduced dimensions: length 180[mm], width 80[mm], depth 35[mm] and weight 250[g].
Precision:
Measure resolution of 0,01[cc/min] till 6 [cc/min] and 0,1[cc/min] till 30[cc/min], measure uncertainty inferior to 1,5%.
Double scales:
2 measure scales: flow visualization in [cc/min] and [cc/h] |
|
Newton is the new Scandura solution for the calibration of pressure and electric devices: transmitters, pressure switches, recorders, controller, manometers, indicators, positioner and converters.
The main features are:
- pressure ranges from -900 mbar up to 700 bar.
- vacuum and pressure generation up to 21 bar
– two channels for the electrical signals
– frequency measurement
– 24 V d.c. to feed the transmitter
– interface to PC through RS-232
– 3 readout visualization
– error calculation
– data storage
– selectable engineering units
– logging function
|
|

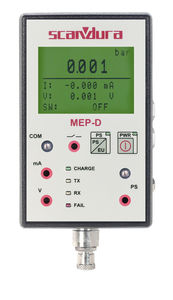

MEP, the Scandura electric-pneumatic handheld calibrator, it’s now available with the display embedded. The wide display allows simultaneously to visualise the:
reference pressure value and the related measurement units
transmitter’s output during a calibration (0 ÷ 25 mA)
voltage input signal (0 ÷ 30 V d.c. )
switch status (ON – OFF)
and it can feed also a current loop at 24 Vcc.
Connecting a PDA (with as PalmOS™ sw) to the instrument, by the serial interface, it’s possible to manage the complete calibration cycle till the printing of the reports.
The required software to manage the PDA is supplied into the standard package of the instrument.
Alternatively to the PDA, the device can be connected to a PC by a serial interface unit, so that every terminal can be used. Ranges from 60 mbar up to 700 bar.
|
|
Intrinsically Safe Pressure Calibrator 718Ex
- Built-in pressure/vacuum hand pump, with vernier and bleed valve, Pressure measurement to 0.05% of full span, using an internal pressure sensor, Pressure measurement to 200 bar using any of the 8 intrinsically safe 700PEx Pressure Modules, Wide range of selectable measurement units for pressure, Pressure switch test funktion, Min/Max hold functions
Also available as a standard non-Ex unit!
Intrinsically Safe Pressure Module 700PEx
To measure a wide range of pressure in an explosive endangered area the range of pressure modules is extended with 8 ATEX compliant modes. These models are compatible with the ecom 718Ex intrinsically safe pressure calibrator and the intrinsically safe multifunction process calibrator 725Ex.
Also available as a standard non-Ex unit!
|
|
Pneumatic calibrator PK with panel manometer PM
Panel Manometer PM
Electronic and Pneumatic Calibration and Control System
Portable simulation and measurement unit (PK) (can be installed into a 19" laboratory system)
Gauge and vacuum can be generated and regulated with the pneumatic unit
Easy exchangeable measurement range (PM22, PM28)
Measuring media: instrument air, inert gases, media compatible sensors available for aggressive /fluid media
12 different selectable measuring units
Hold function
Datalogging function and RS 232 interface
Measurement for leak rate and tendency
Minimum /maximum values
Incl. free of charge SCS certificate
|
|
Aeronautical pressure controller/calibrator
The DPI 515 precision pressure controller/calibrator, when supplied with this option, enables direct calibration of aeronautical gauges/instruments for altitude or airspeed. The accuracy for altitude is RVSM compliant. In addition, all of the standard DPI 515 functions are available.
The latest measuring and control technology is incorporated in one compact, functional instrument. Multiple processors, advanced software and a large area display are among a host of features that make the DPI 515 the most flexible controller in the market, with simplified operation and reduced maintenance.
Ranges to 910 knots / 80,000 feet
Precision to ±0.17 knots / ±3 feet
RS 232 and IEEE 488 communications
12 month measurement stability
Multilingual
Control of Altitude in feet or metres
Control of Airspeed in knots, KM/hr, mph or mach
Rate of climb entry in units/min or sec |
|
| The CP 400 /420 Dual Sensor Pressure Calibrator provides unmatched pressure measurement flexibility with 0.025%FS accuracy on both internal,isolated,stainless steel pressure sensors. An external pressure module connection supports all BetaPort -P pressure modules for even greater measurement capability. A Pt100 RTD input is provided for temperature measurements accurate to 0.1°C (0.2 °F).In addition,the CP 400 /420 measures 4-20 mA loop current and up to 30 VDC. |
|
The DPI 880 is a lightweight and simple to use hand-held instrument that provides high accuracy measurement of electrical, temperature, pressure and flow parameters from a single device. The DPI 880 measures and sources milliamps, millivolts, volts, ohms, frequency, thermocouples, RTDs, pulses and pressure; captures switch values; and provides 24 volt loop power. Ultra-compact and convenient, the DPI 880 is a powerful tool for testing, configuring and calibrating virtually any process parameter. Dual readings of both input and output parameters simplify calibration and system diagnostics.
The DPI 880 shares common features with the other DPI 800 Series models including a large, bright, backlit display for easy reading in all lighting conditions, rubberized exterior for durability and ruggedness, intuitive menu system for ease of use, Hart® loop resistor, and Intelligent Digital Output Sensor (IDOS?) port for use with remote pressure modules.
?With the DPI 880, we?ve rolled the capabilities of the entire DPI 800 Series line-up into a single device,? said Jim Henke, product manager for GE?s sensing business. ?In spite of the DPI 880?s extensive functionality, we?ve retained the compact design, intuitive operation, and high accuracy levels that our customers require. ?
|
|
PC6 IDOS Pressure Calibrator
combines the latest developments in pressure instrumentation with advanced sensor and component technology to offer a versatile calibration instrument.
The PC6 IDOS is supplied with our hand held test systems:
LTP1 Low Pressure pneumatic test system -27 inHg vacuum to 45 psi (-900 mbar to 3 bar)
TP1 Pneumatic pressure test system -27 inHg vacuum to 600 psi (-900 mbar to 40 bar)
HTP1 Hydraulic pressure test systems to 10,000 psi (700 bar)
Intecal for Industry compatible
Features & Benefits:
It is designed for accurately testing and calibrating the following types of instruments:
Pressure Transducers / Transmitters
Pressure Switches / Relief Valves
Pressure Indicators (analogue / digital)
Process Indicators
Current / Voltage to Pressure Converters |
|
MEP-DC, the SCANDURA portable pressure calibrator, is the perfect solution for the calibration of every pressure device: transducers, manometers, transmitters, converters and switches.
The main features of this calibrator are:
• display of the reference pressure value and the related measurement unit
• maximum pressure value during the measurement process
• leakage indication in a pressure circuit
• current an voltage measurement
• switch status indication
• vacuum and pressure generation up to 21 bar
MEP-DC can feed a supply loop at 24 V d.c. Through a PDA (with a PalmOS™ sw) it manages the complete calibration cycle till the printing of the reports.
|
|
Tek Know PM305/310L/310H
Pressure Calibrator
We are proud to announce the new pressure calibrators! The new units are easy to use and rugged instruments highly recognized by the oil and gas industry. The PM305 Pressure Calibrator includes electrical mA,V and switch test inputs. It features programmable engineering units, range and input types.
The history log makes it possible to store data for as many as 30 tag's. The graphical display allows you to read all information you need.
By adding a pump to the PM305 you get a powerful handheld Pressure Calibrator named PM310L and PM310H. External pressure sensors can be connected for increased flexibility. Range from 10 to 1200bar, accuracy as good as 0,03%. The units are designed according to the new ATEX directive for EEx/IS products, which is valid from 1 July 2003. |
|
They could be used as pressure calibrator to check and certify the pressure measures of the leak tester equipment.
Also they could be used as leak simulator to check if testers are capable of identifying as "test FAILED" a cc/min determined leak on the objects to be tested.
With LTC the user can issue reports on the tester performances and certify them in conformity wit the ISO9001 standards.
LTC instruments helps the user in choosing in an easier way the better test parameters to be programmed on the testing machines.
The leak is set with a micro-needle valve: an other open/close valve make easy to insert or eliminate the leak without changing the setting.
The instruments supply with a rechargeable battery. |
|
Digital pressure calibrator HM38
Two individual pressure measuring ranges for gauge, vacuum and differential or absolute pressure
Measuring media: instrument air, inert gases, media compatible sensors available for aggressive / fluid media
11 different selectable measuring units
Datalogging function and RS 232 interface
To measure and generate simultaneously current and voltage
Leak rate, record, ramp, deviation, simulation and trigger function
Incl. free of charge SCS certificate |
|
ADTS 505 Compact, portable Air Data Test Set
The ADTS 505 is a precision twin-channel Ps and Pt pressure control test set for the accurate calibration/verification of civil aircraft pitot statistics.
Compliant with RVSM (Reduced Vertical Separation Minimal) requirements
Features:
- High accuracy – RVSM compliant
- Fully automatic control
- Rugged flightline construction
- Wide ranging aircraft compatibility
- Integral pneumatic supplies
- Protection for aircraft instruments |
|
Digital Precision Handheld calibrator Model PTE
with interchangeable measuring modules for pressure and temperature. 1 or 2 independent channels. Accuracy 0,025%, 0,05% or 0,1% % F.S. Current and voltage measurements.
Characteristics:
* Rigid ABS-housing
* 12 different engineering units
* Leak and flow measurements
* Min/max value and trip detection
* RS-232 interface
* Extensive data logging function optional
Measuring range: 0 ... 0,6 mbar to 0 ... 700 bar
0 ... 0,25 in. H2O to 0 ... 10.000 psi
-250°C to 1820°C
0 ... 30 VDC and 0 ... 50 mA |
|
|
|
