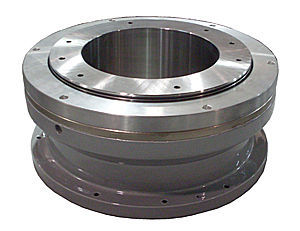

The TORQUECHAMPION® direct drive system is the new highly dynamic drive system from LTi DRiVES for precise, fast and maintenance-free positioning.
* Its short length and lack of gearing means it takes up a minimal amount of space.
* The peak torque of the MIC motor is available up to the maximum speed, making positioning faster.
* The hollow shaft permits simple feed-through of cables, hoses or laser beams through the motor.
* The integrated measurement system with 8,388,608 increments per revolution and single-turn absolute information means no reference running is required.
* The MTC motor is an external-rotor motor. It can be coupled with a high degree of torsional rigidity without gearing directly to the mechanism. This means it has no gear play and suffers no wear, needs to maintenance and offers very high drive dynamics.
|
|
|
|
|
|
Designed with the aim of addressing new industrial needs, ALXION has created ST low inertia motors range for DIRECT DRIVE allowing acceleration up to 20 000 rad/s². 145 ,190 and 300ST ranges present an outstanding compacity with a continuous torque-to-weight up to 3.7 Nm/Kg and a peak torque-to-weight up to 18 Nm/Kg. ALXION
Main characteristics
Permanent torque up to 235 Nm and peak torque up to 1161 Nm
Possibility to use a hollow shaft up to 75 mm diameter
Three motors technologies:
HP : high precision with cogging torque < 1 % for 145 & 190 ST
SP : standard precision with cogging torque = or < 2 % for 145 & 190 ST
X : high precision with cogging torque < 2 %
Position feedback:
Resolvers: precision ±1 arcmin or ±10 arcmin
SinCos encoders: incremental or with commutation track
ENDAT absolute encoders
HIPERFACE® encoders
Protection degree: IP54
Power and signal connections: Class 6, cables 2 meters length
Avantages
High dynamics
No reducer
No backlash
High accuracy servo
Elimination of maintenance
Simplification of the servomechanism
Noise reduction
Machine optimization and simplification
|
|
|
|
|
|
Permanent magnets brushless motors with high torque for direct drive

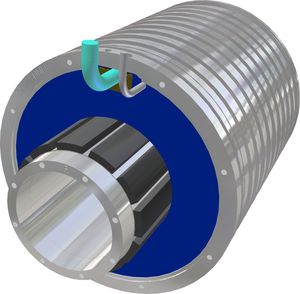

Based on the idea that a specific range should be elaborated, the FC motors range with high torque for axis without reducer was born in the beginning of the 90'.
This project, supported by the National Agency for Enhancement of Research, led ALXION to develop a range of 7 permanent magnets brushless motors, specially designed for direct drive applications in various industrial environments. The motors exist in 230 Vac and 400V / 460 Vac windings.
Main characteristics
# Permanent torque up to 461 Nm and peak torque up to 1745 Nm
# Possibility to use a hollow shaft up to 70 mm diameter
# Low speed rotation, from 800 to 190 rpm depending on type
# Position signal with high resolution: up to 393612 points per revolution
# High accuracy resolver: +/- 1 arc min
# Optionally: sine / cosine or TTL encoder
Advantages
# No reducer
# No backlash
# High accuracy servo
# Suppression of maintenance
# Simplification of the mechanism
# Noise reduction
|
|

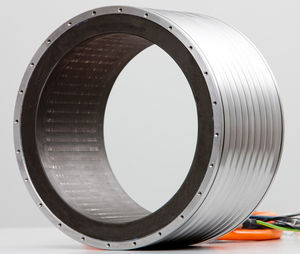

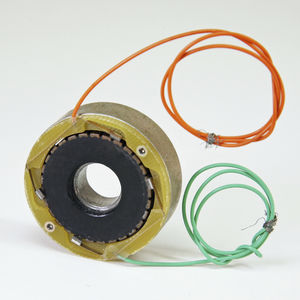

Direct Drive STK motors have been designed for being integrated at the heart of servomechanisms with the aim to improve the performances of axis control.
Thus, the use of ALXION's Direct Drive Technology offers adequate solutions regarding the improvement of dynamic performances and accuracy and allows to address applications with demanding constraints on volumes and weights.
Main characteristics
Continuous torque from 14.6 Nm up to 2708 Nm continuous in natural convection depending on size and up to 6100 Nm in fluid cooling.
Six external diameters from 145 mm up to 800 mm.
Internal diameter from 56 mm up to 630 mm.
Various available windings from 30 rpm up to 1500 rpm depending on type.
Advantages
High dynamics
No reducer
No backlash
High accuracy servo
Suppression of maintenance
Simplification of servo-mechanism
Optimization of servo-mechanism costs
Noise reduction
Functional optimization and machine simplification
|
|
| ... products without technical information |
| |
Ever Co. produces high performance stepping motor drives made by (full) digital motion control systems provided with smart logic control, high switching frequency power stages and inputs/outputs resurces as well.
High Torque Hybride Step Motors for heavy duty suitable for:
- Textile applications: loom, circular & linear knitting, ...
- Tooling machinery and robotic applications
- Ceramic applications
- Serigraphic and Flexo printing
MT23AK17015M4V MT34FN47060x8yy MT42FN79110x8yy
Voltage Vdc: 3.30 3.12 4.84
Current A: 1.50 6.00 11.00
Resistance Ohm ± 10%: 2.20 0.54 0.44
Inductance mH: 6.00 mH ± 10% 3.00 mH ± 10% 4.20 mH ± 20%
Holding torque Nm ± 10%: 0.580 8.50 30
Step resolution: 200 200 200
Step Angle: 1,8° ± 5% 1,8° ± 5% 1,8° ± 5%
Diameter mm 56 86 110
Weight kg 0.450 3.8 11.64
Rotor inertia kg.cm² 0.150 2.7 16.2
Detent torque 300 mNm 0.25 Nm 0.75 Nm
Ambient temperature -20 ÷ +50 °C -40 ÷ 55°C -40 ÷ 55°C
Insulation class B 130 B 130 B 130
|
|
Portescap's newest hybrid motor family member, the h3 runs quieter and with less resonance across the entire speed range, assisting to counter the disadvantages typical in step motor systems.
Key Attributes and Characteristics:
- Frame sizes ranging from 42mm to 90mm
- Output speed up to 3,000 rpm
- Step angle of 1.8 degrees
- Hollow shaft version available
-Customization available including shaft, connectors, and sub-assembly
Advantages:
- Larger bearings enable the motor to effectively handle higher side and radial loads
- The full maximization of performance is realized with the enhanced version of the h3 stepper, which delivers up to 40% more torque than the standard version
- Neodymium Iron Boron Magnets - Deliver Optimized Torque Density
- Aluminum Housing - Superior heat dissipation for improved torque output (Patent Pending)
- Retainer and O-Ring - prevent bearing spinout and minimize motor noise
|
|
Lin Engineering's high torque step motors are capable of holding torques up to 920 oz-in based on unipolar ratings. Unipolar and bipolar windings are available to allow for torque and speed to accommodate your application. Lin's high torque motors provide approximately two times more holding torque than standard motors of similar design.
High torque lines are as follows:
4118 Series - Nema 17, 1.8 degree
5718 Series - Nema 23, 1.8 degree
8718 Sereis - Nema 34, 1.8 degree
|
|
|
|
|
|
Black Bruin motors are at their best in situations where high torque is required and use of other transmission is not reasonable. Hydraulic transmission does not contain axles allowing the frame structure to provide e.g. higher ground clearance and sharper wheel turn angle.
Starting is soft and motion is smooth even at low speed. On the other hand, vehicles equipped with multi speed Black Bruin motors are capable of reaching top speed exceeding 70 km/h.
The motors are used e.g. as wheel hub motors for agricultural, forestry, road building and mining machines.
Black Bruin BB hydraulic motors
• light and compact design
• high torque
• broad speed range
• mechanical freewheeling
• excellent low-speed characteristics
• multiple brake options
Black Bruin BBC hydraulic motors
• excellent efficiency at higg speeds - in both directions
• high pressure level (450bar)
• broader speed range than conventional models
• higher load capacity in smaller size
• variety of mounting options for accessories
• multiple brake options
|
|
