Gear Boxes series PM advantages:
High torque: from 60.000 to 82.000 Nm for any drum driving application. Floating female spline Sun Gear for radial load absorption improvements.
In Castings & Forgings specifications as per DIN high standards best materials to assure aptimum quality and performance workmanship. Compact Design. Making the series PM ONE of the lightest Gear-Boxes in the industry to comply with weight limitation laws special design of planet carriers (triangular).
Simple Assembling & Disassembly procedure large F.A.G. easy maintenance OUT/PUT bearing for high torque performance and durability. Main housing, OUT/PUT flange, crown Gear & Planetary interchangeability carriers are common in all models reducing the need of service parts stock.
Flange and mounting holes are the same than all others main brands.
PM 80 Gear Box, which is indicated for mixer drums from 11 up to 15 m mixer trucks. PM 80 is the largest available gear box in the ready mix industry.
|
|
|
|
|
|
MIJNO PRECISION GEARING has designed and manufactured planetary gearheads and gearboxes for more than 25 years and is one of the World leaders. Our expertise has earned the trust of robotic, military, medical, aerospace and nuclear industries. We offer the widest variety of internal and external design features for optimum matching in your application. We are an ISO 9001 certified manufacturer.
BDB Range: Very low backlash, high torque and torsional stiffness
- Rotating output flange instead of traditional output shaft enables unique power transmission solutions
- Very low backlash (5, 3 or 1 arc-min max depending upon size and ratio)
- Stable backlash (hardened and ground gears)
- High radial and axial load acceptance
- High torsional stiffness
- Quiet operation (ISO 4 quality ground gears)
- Highest torque density
- High efficiency (patented Rotaxe® tooth profile)
- Great choice of ratios
- ISO output interface
- Easy 5 minutes clamping into motor shaft (self-locating input flange)
- High range of temperature of use (-31°F to 266°F depending upon option) (-35°C to 130°C)
- Reinforced waterproofness (IP 65)
- Easy maintenance
- Optional lubricating grease for the food-processing industry
For more information visit www.mijno.com. Consult us if the solution you are looking for cannot be found in our regular catalog. Our design department can create a custom gearbox most adapted to your needs.
|
|
|
|
|
|
MIJNO PRECISION GEARING has designed and manufactured planetary gearheads and gearboxes for more than 25 years and is one of the World leaders. Our expertise has earned the trust of robotic, military, medical, aerospace and nuclear industries. We offer the widest variety of internal and external design features for optimum matching in your application. We are an ISO 9001 certified manufacturer.
MNT range: Heavy duty, very low backlash and high torsional stiffness
- Best for applications with frequent uni-directional cycling or fast reversing
- Very low backlash (15, 10, 5 or 1 arc-mins max depending upon size & ratio)
- Stable backlash (hardened and ground gears)
- High efficiency (patented Rotaxe® tooth profile)
- Quiet operation (ISO 4 quality ground gears)
- Excellent torque density
- High radial and axial load acceptance
- High torsional stiffness
- Great choice of ratios
- ISO and DIN output interfaces
- Easy 5 minutes clamping into motor shaft (self-locating input flange)
- High range of temperature of use (-31°F to 266°F depending upon option) (-35°C to 130°C)
- Reinforced waterproofness (IP 65). IP-67 & 1500 psi water jets available
- Easy maintenance
- Optional lubricating grease for the food-processing industry
For more information visit www.mijno.com. Consult us if the solution you are looking for cannot be found in our regular catalog. Our design department can create a custom gearbox most adapted to your needs.
|
|
|
|
|
|
MIJNO PRECISION GEARING has designed and manufactured planetary gearheads and gearboxes for more than 25 years and is one of the World leaders. Our expertise has earned the trust of robotic, military, medical, aerospace and nuclear industries. We offer the widest variety of internal and external design features for optimum matching in your application. We are an ISO 9001 certified manufacturer.
MSS range : Very low backlash in an all external stainless steel gearbox
The MSS range is derived from the MNT, but SS and higher IP rating with Food grade lubrication standard
- Very low backlash (10 or 5 arc-mins max depending upon size & ratio)
- Stable backlash (hardened and ground gears)
- High efficiency (patented Rotaxe® tooth profile)
- Quiet operation (ISO 4 quality ground gears)
- High torque density
- High radial and axial load acceptance
- Great choice of ratios
- ISO output interface
- Easy 5 minutes clamping into motor shaft (self-locating input flange)
- High temperature range of use (-31°F to 266°F depending upon option) (-35°C to 130°C)
- Reinforced waterproofness (IP 67 & 1500psi water jets)
- Maintenance-free
- Lubricating grease for the food-processing industry
- Washable (stainless steel, waterproof gearbox)
For more information visit www.mijno.com. Consult us if the solution you are looking for cannot be found in our regular catalog. Our design department can create a custom gearbox most adapted to your needs.
|
|
|
|
|
|
Precision Gearheads
Extremely light and compact from Ø6 mm to Ø 44 mm
High torque
All steel construction available
Available in a wide variety of reduction ratios
Smooth and quiet performance
Custom systems available from design to production
Vaccuum and extreme temperature versions available
Long operational lifetime
Spur Gearheads
Extremely light and compact from Ø8 mm to Ø 38 mm
Available in a wide variety of reduction ratios
Smooth and quiet performance
Custom systems available from design to production
Vaccuum and extreme temperature versions available
Long operational lifetime
Low additional system friction
Zero Backlash gearheads available
Hybrid Gearheads
Extremely light and compact from Ø15 mm to Ø 22 mm
Available in a wide variety of reduction ratios
Combines smooth performance of a spur gearhead with the high
torque output of a planetary gearhead
Smooth and quiet performance
Custom systems available from design to production
Vaccuum and extreme temperature versions available
Long operational lifetime
Low additional system friction
|
|
|
|
|
|
MIJNO PRECISION GEARING has designed and manufactured planetary gearheads and gearboxes for more than 25 years and is one of the World leaders. Our expertise has earned the trust of robotic, military, medical, aerospace and nuclear industries. We offer the widest variety of internal and external design features for optimum matching in your application. We are an ISO 9001 certified manufacturer.
MRP range : the performance-price choice
- Excellent performance-price ratio
- Low backlash (15, 12 or 10 arc-mins max depending upon size & ratio)
- Stable backlash (hardened and ground gears)
- High efficiency (patented Rotaxe® tooth profile)
- Quiet operation (ISO 4 quality ground gears)
- Great choice of ratios
- Great choice of output interfaces (8 threaded mounting face holes & shaft hole)
- Easy 5 minutes clamping into motor shaft (self-locating input flange)
- High temperature range of use (-31°F to 266°F depending upon option) (-35°C to 130°C)
- Reinforced waterproofness (IP 64)
- Maintenance-free (lubricated for life)
- Optional lubricating grease for the food-processing industry
For more information visit www.mijno.com. Consult us if the solution you are looking for cannot be found in our regular catalog. Our design department can create a custom gearbox most adapted to your needs.
|
|
Today's servo motors have been designed to provide higher torque and greater dynamic performance to a growing number of industries and applications. Consequently, the demands on the gearbox have become equally as challenging. Dynamic performance, backlash and torsional stiffness are all crucial to the system.
Onvio’s revolutionary, modular approach to gearbox design has resulted in four unique families of products that offer the right performance and value for any application. The modular concept allows Onvio to provide a wide range of standard products or custom OEM solutions quickly and cost effectively.
Let Onvio’s team of engineers work for you.
|
|
Planetary Gearboxes
Fully assembled option with:
– MDrivePlus
– NEMA rotary motors
Planetary gearboxes can increase motor torque at lower speeds, enable better inertia matching, and produce finer positional resolutions.
|
|
Today's servo motors have been designed to provide higher
torque and greater dynamic performance to a growing number
of industries and applications. Consequently, the demands on
the gearbox have become equally as challenging. Dynamic
performance, backlash and torsional stiffness are all crucial to
the system.
Onvio’s revolutionary, modular approach to gearbox design has
resulted in three unique families of products that offer the right
performance and value for any application. The modular concept
allows Onvio to provide complete OEM solutions quickly and
economically. Whether your application requires a custom housing,
special finish, integrated servo motor or a completely custom
gearbox, let Onvio’s team of engineers work for you.
|
|
Shanghai SGR Heavy Industry Machinery Co.,Ltd. is one well-known manufactory in China. This company specializes in producing all kinds of gearboxes and gear motors.
SGR planetary gear unit for industrial applications. The product configuration is highly versatile, due to several options as far as mounting, gear layout, the output shaft and motor interface.
Transmission ratios: up to 5 000
Input power: up to 200 kW
Torque range: up to 540 000 Nm
Output speed: 0.425 up to 445 RPM
|
|
Shanghai SGR Heavy Industry Machinery Co.,Ltd. is one well-known manufactory in China. This company is specialized in producing all kinds of gearboxes and gear motors.
SGR slewing drives also in gearmotor version, with integrated hydraulic motor and brake, specifically designed for light duty machines.
|
|
SRP is not one more simple planetary gearbox but a true integrated concept, including several functions combined together to offer a complete sub-assembly to the most demanding machines.
Featuring :
- A high-tech output oversized tapered bearings assembly
- A high-tech planetary gear train, based on well know REDEX’s differential know-how
- A ready-to-use universal range of motor interface (flange and shaft adapter
- A high quality bevel gear box (option)
|
|
|
|
|
|
SUMER provides a full range of planetary gearbox:
-NR range
NUMBER OF START UPS ALLOWED FOR 15 000H : 3 600 start per hour (for a quicker rate, contact us).
* EXCEPTIONAL OUTPUT TORQUE 3 times the nominal torque
* REDUCTION RATIOS 55 ratios of 3 to 1000 with 3 reductions. 129 stages of 3 to 1000 in 4 stages.
For other ratios, contact us. The input and output shafts turn in the same direction.
* PLAY ON THE EXIT SHAFT this backlash is measured on the output shaft and subjected to a torque of 1 % of the nominal torque, the input shaft being locked.
Levels of preciseness :
classe 12 : backlash<= 12 min
classe 5 : backlash<= 5 min
classe 3 : backlash<= 3 min
classe 1 : backlash<= 1 min
classe 0 : on request
* TEMPERATURE - Authorized temperature at maximum speed : 150°
- Engine oil temperature reckoned while in operation under normal conditions for calculations : 90 °C
* LUBRIFICATION For normal use, our gearboxes are delivered with a synthetic oil of viscosity 150 (recommended oil : Kluber GH6150 or Fuchs Renoline PG150).
-SR range
NUMBER OF START UPS ALLOWED FOR 15 000H : 1 0 00 start per hour (for a quicker rate, contact us).
* EXCEPTIONAL OUTPUT TORQUE 2 times the nominal torque
* REDUCTION RATIOS Based ratio : 4 in one stage and all the multiples with ratio 3, 4, 5, 7 and 10.
-PR range
NUMBER OF START UPS ALLOWED FOR 15 000H : 1 000 start per hour (for a quicker rate, contact us).
* EXCEPTIONAL OUTPUT TORQUE 2 times the nominal torque
* REDUCTION RATIOS Based ratio : 3 in one stage and all the multiples with ratio 3, 4, 5, 7 and 10.
|
|
Planetary gear units PHP
PHP high precision planetary gearboxes main features:
- Low backlash and exact ratios
- High safety level
- Axial length compensation system
- ATEX compliant
- All mounting positions
Stainless steel planetary gear units PSS
General informations:
- Material: AISI 304
- Protection degree IP65
- Compliant with GMP, FDA and BISSC regulations
- Low backlash and exact ratios
- High safety level
- Axial length compensation system
- 20.000 h service and life long lubrication
- Any mounting position available
- For use in aggressive and corrosive environments
|
|
|
|
|
|
VARVEL low-backlash planetary speed reducers, Series RG, are designed for two and three stages, with hardened and tempered steel housing and broached internal gear. Manufactured to latest ISO engineering design specifications the housing is checked by computer-aided structural analysis for deflection and stress distribution.
The planetary speed reducers RG are made with gears of carburized alloyed steel, hardened and tempered; the planetary gear shafts of hardened and tempered steel; the input and output flanges of drawn aluminium (a micro version is manufactured without the output flange).
The universal motor coupling is available by the means of a clutch fitting and input flange and bush adapters.
The series RG is made in 4 sizes (RG050 - RG070 - RG090 - RG120), one and two stages, reduction ratios 3/1 to 100/1 and nominal output torque 12Nm to 220Nm.
The planetary gearboxes Series RG give a remarkable precision (angular backlash lower or equal than 8 minutes of arc for one stage and lower or equal than 12 minutes of arc for two stages) and quietness (lower than 70 dB-A for the sizes RG050, 070 and 090, and lower than 75 dB-A for the size RG120).
|
|
|
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact form, low weight, and excellent efficiency. Self-centering planet gears ensure a symmetrical force distribution. The ring gear also forms the housing of the gearbox. The gearbox output shaft is supported in two ball bearings so that it can withstand high axial and radial loads. The gearboxes are customized, e.g. for use in especially low ambient temperatures, or as high-power gearboxes with reinforced output shafts, or with special lubricants for very long service life.
|
|
|
Compact, and yet extremely powerful, are the units of the 300 series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the features are available for each of the 16 finely spaced frame sizes, spanning over the 1.000 - 450.000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.
|
|
PG planetary gear units are divided into 21 basic groups depending on the different torques that are to be transmitted to the output shaft, which can vary from 0.05 to 65 kNm.
In fact, the product modular construction permits the coupling of bevel gears, worm gears, hydraulic brakes and a variety of input shafts to the planetary units, as well as providing for a wide choise of coupling flanges for hydraulic or electric motors.
|
|
Macron Dynamics MPG inline planetary gear boxes are designed to eliminate the need for motor mounts used in a typical linear actuator drive system setup. These gear boxes are a direct bolt-on installation for any Macron linear actuator. The gear boxes design eliminates the need for couplings and large mounting brackets, essentially making the actuator and drive assembly a seamless integral unit.
The MPG gear box incorporates fixed input with radial clamping ring, making for quick and easy mounting to both metric or English motors. In addition, the unit's high precision gears and low backlash operation are achieved through the use of high quality components all in one lightweight package. The MPG gearboxes have gears designed for infinite life when operated at the rated torque, while the bearings and lubricant are selected to achieve maintenance-free operation for long operating periods.
|
|
|
|
|
|
Planetary Gearheads - Size 52
MATERIAL:
Housing – Aluminum
Gears – 4135 Alloy Steel - HRC 50...52
Output Shaft – 4135 Alloy Steel - HRC 30...32
SPECIFICATIONS:
Max. Input Speed: 6000 rpm
Efficiency:
Single Stage: 95%
Double Stage: 92%
Backlash: 15 arc min., 10 arc min., or 3 arc min.
Torsional Stiffness: 0.8 Nm/arc min. (7 lb. in./arc min.)
Weight:
Single Stage: 0.55 kg (1.2 lb.)
Double Stage: 0.72 kg (1.6 lb.)
Planetary Gearheads - Size 78
MATERIAL:
Housing – Aluminum
Gears – 4135 Alloy Steel - HRC 50...52
Output Shaft – 4135 Alloy Steel - HRC 30...32
SPECIFICATIONS:
Max. Input Speed: 6000 rpm
Efficiency:
Single Stage: 95%
Double Stage: 92%
Backlash: 15 arc min., 5 arc min., or 3 arc min.
Torsional Stiffness: 3 Nm/arc min. (27 in. lb. /arc min.)
Weight:
Single Stage: 1.7 kg (3.7 lb.)
Double Stage: 2.1 kg (4.6 lb.)
Planetary Gearheads - Size 98
MATERIAL:
Housing – Aluminum
Gears – 4135 Alloy Steel - HRC 50...52
Output Shaft – 4135 Alloy Steel - HRC 30...32
SPECIFICATIONS:
Max. Input Speed: 5100 rpm
Efficiency:
Single Stage: 95%
Double Stage: 92%
Backlash: 15 arc min., 5 arc min., or 3 arc min.
Torsional Stiffness: 6 Nm/arc min. (53 in. lb. /arc min.)
Weight:
Single Stage: 3.2 kg (7.0 lb.)
Double Stage: 3.9 kg (8.6 lb.)
|
|
|
|
|
|
Rexnord® Planetgear™ Speed Reducer
Ratios: 3.53:1 to 7052:1
Power: 750 kW (1,000 hp)
Torque: to 102 kNm (905,000 ib-in.)
13 sizes
Handles high-shock loads, 250% overload capacity
Modular design leads to ease of assembly
Locally available
Optional scoop, flange, or baseplate mounted motors
Compact Power Dense package is lighter weight and smaller than traditional reducers
Taconite Duty Seals provide optimal performance and long seal life
Internal Backstop is easily field installed. Pawl design is compatible with extreme pressure and synthetic oil
Rexnord® Shaft Mounted Planetgear™ (SMP)
Ratios: 11 to 1785:1 Power: to 375 kW (500 hp) Torque: 15-339 kNm (140,000 to
3,000,000 lb-in.)
5 sizes
Concentric configurations
Taconite duty seals
Optional scoop, flange, or top-mounted motors
Custom solutions available to meet exact application requirements. Modifications include torque arm, c-face input, and hollow output shaft bore sizes
Alternative to Traditional Shaft Mounts. Available in 5-7/16" and 67/16" hollow bore
Hydro Advantage, an innovative hydraulic removal system, is integral to the low speed shaft and applies a separating force between the end of the driven shaft and reducer.
|
|
PLANETARY REDUCERS With SET OF 8 MIN With 16 MIN. COUPLES OF EXIT OF 5 Nm with 500 Nm.
Planetary reducers of Ø external 50 mm to 150 mm with very interesting a price ratio/performance, whose principal characteristics are the following ones: Angular play of 8 min up to 16 min. Couple of exit of 5Nm with 500 Nm. Report/ratio of reduction from 3 to 100. This range LB is the perfect complement of our ranges improved uninterrupted NR, SR and PR (play of 0.5min with 12 min and couples to 16000 Nm). These reducers LB are applicable in all the standard fields of the market while remaining at very competitive prices. Company SUMER is recognized for its service valid irreproachable fast time also on this new range.
|
|
NEMA-Connection for Spur- and Planetary Gearheads – NEMA 17
Please select your requested gear motor via click on the icon in the coordinate system (speed – torque).
|
|
|
|
|
|
GP 22 S and GP 32 S modular spindle drives.
Mechanical engineering often faces the task of converting rotational movements into powerful linear movements. The associated development costs can now be cut dramatically by using modular spindle drives in maxon motor's modular system. The GP 22 S and GP 32 S gearheads, specifically adjusted for spindles, are designed to withstand high loads, and the special spindle intake means that customer-specific spindles can be assembled easily which shortens supply times.
There are three different standard spindle types to choose from: metric spindles, trapeze spindles and spherical rotating spindles. The spindles are available as steel or ceramic variations and in any length up to 200 mm. Spindle nuts to match are supplied.
Gearheads, motors, encoders and controllers from maxon's standard program are used to drive the spindles. The individual components of the spindle drives are all compatible to help create highly effective drive solutions. For the time being, modified planetary gearheads are available in two different sizes, with diameters of 22 mm and 32 mm. Reduction ratios of 3.7:1 to 1093:1 provide maximum torques of 6 Nm and speeds of up to 1600 min-1. The additional axial bearings of these gearheads can also withstand powerful axial forces from the spindles.
|
|
BPx - Planetary Gearing Range
The three models standard, economy und high performance of the Baumüller planetary gearings provide compact and economical drive solutions at the highest technology level.
In connection with our standard DS/DSD servo drives, the BPx – planetary gear range is optimally suitable for applications that require maximum standards of torque and dynamics. In combination with a high number of transmission ratio gradings, almost any possible combination of motor and gear allow an optimal adaptation of customized application.
Three models are available:
gear models in the so-called HP (= High Performance) version are available for highest torques and speeds
for applications with standard requirements the model BPS is a gear solution of a high technology level
the model range BPE (= Economy) is used for basic applications
|
|
ALTERATION PLAIN OUTPUT SHAFT OR WITH KEY
Only applicable for alterations (lengths and/or diameters) smaller than standard shaft. See table below.
Contact us for dimensions superior to standard shaft.
|
|
ALTERATION PLAIN OUTPUT SHAFT OR WITH KEY
Only applicable for alterations (lengths and/or diameters) smaller than standard shaft. See table below.
Contact us for dimensions superior to standard shaft.
|
|
|
Available for reducer, swing, and track applications, this reducer planetary gear drive is rated at a maximum input of 185 hp (138 kW). Whether you need reducer drives, swing drives, or track drives, you can count on Funk™ to deliver durability, performance, and superior engineering.
|
|
|
|
|
|

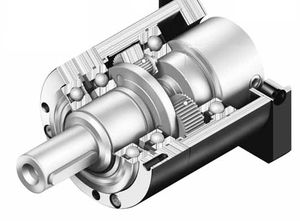

Series P high precision inline planetary servo drive will satisfy your most demanding automation applications.
The compact, cube design, universal housing with precision bearings and precision honed planetary gearing provides high torque density while offering high positioning performance. Series P offers exact ratios from 3:1 through 40:1 with the highest efficiency and lowest backlash in the industry.
High Performance
* Precision honed planetary gearing offers high torque capacity and high efficiency.
* Lowest noise levels in the industry, as low as 58dB(A)
* High precision with backlash less than 3 arc minutes
* Permanently lubricated with synthetic grease at the factory, lifetime-sealed housing with IP65 protection
* 20,000 hour life rating, accepts input speeds to 10,000 rpm
* Patented clamping arrangement provides error free motor mounting
Product Specifications
* Case Sizes:70, 90, 115, 142 and 190
* Output Torque: Up to 1800 Nm (15,900 lb.in.)
* Gear Ratios: Up to 100:1 in two stages
* Input Options: Fits any servo motor
* Output Options: Solid shaft, no key
|
|

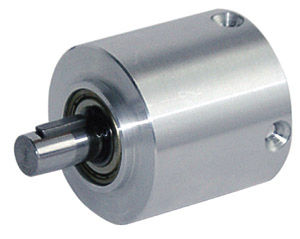

Planet-Gears for our 2-Phase-Step Motors and 5-Phase-Step Motors. Several sizes and combinations with the Step Motor series HECM, SECM and ECM.
- centered Output-Shaft
- less backlash
- Gear-Ratio from: i = 3 up to 1000
- max. Output-Torque from: 3 Nm up to 105 Nm
|
|
|
|
