The P8AX series coaxial surge protectors have been designed to protect antennas, microwaves, broadband applications, two-way radios, cellular equipment and GPS equipment against lightning surges and electrical transients. They are a first line of defense for your sensitive equipment.
The CXP series has been designed to protect radio base communication systems from lightning and electrical transients. This device is a DC blocked protector not to be used where transmitter combining is performed.
|
|
| Pasternack's Coaxial Surge Protectors provide protection for your RF & Microwave coax applications from lightning or other high voltage surges. |
|
The DS250VG is a very Heavy Duty AC Surge Protector Device (SPD) designed to be connected at the entrance of the electrical installation. The DS250VG is a one-pole SPD and can be used in common mode or common and differential mode :
- Type 1 surge protector
- 25 kA on 10/350 µs impulse
- Low voltage Up
- Internal disconnection, status indicator and remote signalling
- IEC61643-1 and EN61643-11 compliance, UL1449 ed2 recognition |
|
The MSB10 surge protector unit is designed to protect a single-phase input.
This compact plastic housing includes an electrical diagram basedd on thermally protected varistors and gas tube.
The unit is equipped with a led to indicate the right operation of the surge protection circuit.
The MSB10 is connected by wires in parallel with the network to be protected and could be mounted on wall or plate by self-adhesive tape.
|
|
Let one device save your enormous fortune!! ARS-08 series is a perfect solution for up to 8 loops protection.To keep telecommunication devices from damage by lightning. Its module design provides a flexibility to apply to PBX, server room, telecom exchange room, offices, and etc.
The arrester leads the surge energy to ground and can be automatic recovered. It can withstand max. 6KV10/700ěs lightning attacks. The repeated protection feature is perfect to be applied in lightning frequent environment. It is conformed to ANSI C62.45, IEC61000-4-5 and IEEE62.41 Class B2, which ensures the quality of this product series. |
|
The DS215 Type 2 surge protectors are compact devices designed to protect single phase networks at the main switchboard.
DS215 are available for 230V or 120V AC network and the different distribution systems (TN, TT, IT).
Easy and fast maintenance
Compact single phase surge protector
In = 5 kA
Imax = 15 kA
Common mode or Common/Differential mode protection
Pluggable module
Remote signaling contact (option )
In compliance with NF EN 61643-411 and IEC 61643-1 |
|
ZS-CAT5/CL :
Version designed to protect one terminal connected to a 100BaseT "Category 5" network. Shielded enclosure equipped with in/out RJ45 connectors. All the 8 wires are protected.
These surge protectors for remote terminals are used in association with a multiline rack surge protection (PL24-CAT5/CL) centralized protection at the hub level. |
|
| We provide a complete product series to protect different telecommunication or video signal transmission devices. ARS-004-S45 is perfect for internet equipments, ARS-004-N11 can be applied to protect telephone, fax machine, XDSL or ADSL devices, and ARS-004-Rxx is designed to protect surveillance camera and cable TV line. For this model, we inlcude different options of connectors, F female, F male, BNC female or BNC male connector. This provide more flexibility to your applications! |
|
DLA surge protector is designed to protect terminals equipment connected to industrial buses, telecom lines or datalines.
The DLA is 1-pair DIN rail surge protector with removable module for easy maintenance (ref. DLAM). Transmission and protection or the shield wire by gas tube. Direct earthing through DIN rail. Line continuity in case of plug-in module removal. |
|
Type 1 Surge Protector for Photovoltaic
- Surge protector for Photovoltaic system
- Iimp = 12,5 kA (onde 10/350µs)
- Internal disconection, Indicator
- NF EN 61643-11 and CEI 61643-1 compliance |
|
The DUT250VG-300/G is a compact and Heavy Duty AC Surge Protector Device (SPD) designed to be connected at the entrance of the electrical installation, on a 3-phase 230/400V AC network. This SPD is a 3-Phase + Neutral and provides a common and differential mode protection. This SPD is built in a compact enclosure for DIN rail mounting :
- Type 1 3-Phase Surge protector
- Common and differential mode
- Very compact monobloc enclosure
- Iimp by pole : 25 kA
- Low voltage Up
- No Follow current
- EN 61943-11 and IEC 61643-11 compliance |
|
DS40 Type 2 AC surge protectors are used mainly for primary protection of single and 3-phase networks at the main electrical panel.
This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator.
The DS40 is available for a large range of AC voltages.
The DS40 is DIN rail compatible and is built with a plug-in module and a fixed base, which allows an easy and fast maintenance :
- Type 2 AC surge protector
- Discharge currents : In = 20 kA / Imax = 40 kA
- Pluggable module for each phase
- Remote signaling in option
- IEC 61643-11 and EN 61643-11 compliance |
|
Citel BP1 and B480 surge protectors have been designed to protect your single and dual telephone lines against harmful lightning surges and electrical transients. The electrical diagram is based on GDT and fast clamping diode to guarentee a maximum eff
Utilize a hybrid technology that combines a fast response time (< 1 ns) and a high power handling capability of 10kA (8/20ms waveform).
|
|
The LZ-NET series is intended to protect Local Area Networks (LAN) from over voltage surges and electrostatic discharges created by switching transients in buildings. LAN systems are particularly prone to such disturbances because of the often long cable lengths involved which behave like antennas to such atmospheric disturbances.
It provides protection to all 8 lines in the UTP, and is Cat. 5 capable.
- Compact, Ergonomic Packaging
- All 4 Pairs Protected
- Freq: < 100 MHz, Cat. 5 Capable
- Termination: RJ45, Cat. 5 Connectors
|
|
Features:
Single-pair SPD
For Hazardous Areas (Ex)
Imax = 20kA, IL = 500mA
Insulation Resistance to Earth
Modular Housing
Product summary:
The IM-Ex series is intended to provide protection to low voltage signal and data circuits located in potentially explosive environments.
It is intended for use on inherently safe circuits in accordance with EN 50014, EN 50020 and EN 50284 standards. The protection module should be located as close to the end-user equipment being protected, as possible.
The circuit consists of a multi-stage protector providing both common (longitudinal) mode and differential (transverse) mode protection.
Coarse protection is provided using a three terminal gas discharge tube while fine protection is provided using a high speed bi-directional silicon stage. Care is taken to ensure coordination between these two stages without voltage or surge current blind spots occurring.
|
|
Features:
Single-pole SPD
Iimp = 100kA
Imax = 160kA
High Energy GDT
Compact Housing
Product summary:
The PROTUBE BS is an over voltage surge protective device and has been developed to protect against partial direct and indirect lightning discharges and is intended to provide protection in zones 0A - 1 as per IEC 62305.It consists of an encapsulated air gap device (GDT), and is used as a galvanic separation between the N-PE conductors in a 1+1 or 3 1 power distribution system (TT networks).
|
|
Features and Benefits
- High Fault Current Capability
- Excellent Protective Characteristics
- Light Weight
- High Durability
- Excellent Temporary Overvoltage and
- Surge Duty Capabilities |
|
PR-O-TECT surge arrestors help to protect sensitive electronics equipment from dangerous voltage transients and spikes.
Typical applications include:
Adjustable Speed Drives
SCR Controllers
Rectifier Circuits
Machine Tool Controls
Packaging Equipment
Elevator Drive Systems
Printing Presses
Woodworking Equipment
Traffic Controls
UPS Systems
Industrial Controls
|
|
| surge arrester is designed to limit surge voltage by discharging the surge current to ground. |
|
| Low Voltage Arresters provide protection for low voltage overhead lines, consumer in house supplies, distribution transformers and other systems. The MOV (Metal Oxide Varister) without series gap incorporated in the surge arrester reliably imposes low-value limits on surges caused by atmospheric overvoltages and switching transients, thus protection the insulation of the cumsumer side networks and equipment |
|
Features:
The extension ZES 1M+5S is intended for the protection of personal computer, peripheral appliances e.g.: monitors, printers, optical readers, CD-drives or amplifiers and multimedia devices (e.g. telephone, faximile, TV sets, Hi-fi's, DVDs etc).
Product summary:
The protection is functionally divided into power supply protection (230V~), telephone line protection and TV protection. Furthermore, there is also an overload protection fitted. The multimedia extension cord protects electronic devices against surges caused by lightning strikes, switching operations at larger electrical consumers, induction and other sources of overvoltage. |
|

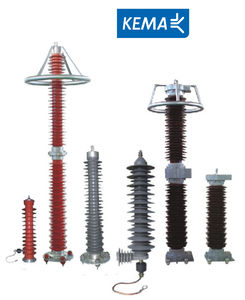

| GE TRANQUELL® surge arresters are designed to protect against overvoltages such as lightning or switching. Intermediate class arresters are used in electric utility and industrial substations to protect transformers and other substation equipment from lightning and switching surge generated overvoltages. Tranquell® polymer arresters provide both excellent protective characteristics and temporary overvoltage capability. |
|
| We offer an extensive range of products designed for use in distribution and transmission networks, qualified to IEC and ANSI standards. We supply polymeric and porcelain surge arresters for distribution and transmission networks. The Energy Division has 30 years of service experience of our composite products and in long-term service, our products have an outstanding record for reliability and performance, in the toughest environments and applications. |
|
Features:
For TT Single-phase Systems
Iimp = 50kA
Imax = 100kA
High Energy MOV and GDT
Compact Housing
Product summary:
The PROBLOC BS(R) 100 (1+1) series of over voltage surge protective devices has been developed to protect against partial direct and indirect lightning discharges and is intended to provide protection in zones 0A - 1 as per IEC 62305. The (1 1) range is intended to be used on TT single phase networks, where N to PE galvanic isolation is required. The circuit topology consists of one varistor stage protected by two thermal disconnection devices. Each unit comprises two high performance varistor blocks. A high energy encapsulated air gap (GDT) provides galvanic separation between the N and PE conductors. |
|
The PROTEC BS(R) 25 series of low cost, over voltage surge protective devices has been developed to protect against partial direct and indirect lightning discharges and is intended to provide protection in zones 0A - 1 as per IEC 62305. It consists of two separate, high performance dual MOV blocks, each with a separate disconnection device.
Category IEC/EN/VDE: Class I / Type 1 / B+C
Location of use: Main distribution boards
Protection modes: L/N - PE, L - PEN
Protective element: High Energy MOV
High surge discharge ratings: Iimp = 25kA, Imax = 100kA
Internal protection and safety: Separate thermal disconnector for each MOV block
Status indication: Mechanical flag + remote contacts (R)
|
|
NTSA-CAT5e Surge Arrester
Multi-functional Surge Arrester for Industrial Use
Offers Maximum Data Security
Protects all Signal Paths Connected via RJ-45 Connector
Prevents Damage of Network Interface
Provides up to 2500Amps of Surge Current Protection
Rugged DIN-Rail Enclosure (Optional Rackmount)
Extended Environmental Specifications
* -40ş to 80şC Operating Temperature
* Class D and CAT5e Approval |
|
ERICO's surge protection devices protect against damaging electrical surges on power and communications lines caused by lightning, industrial machinery, and other switching events.
like as:
AC Power Protection - AC panel protection are designed for electrical service panels, motor control and other switchboards.
Data, control and Signal Line Protection
Equipotential Bonding for pipeline insulated joints.
Point of use protection - for protection of office equipment.
Rail Products - There are a range of EPD rail surge protection devices of railroad industry. |
|
The PV PROTEC C(R) 40 series of over voltage surge protective devices has been developed to protect against indirect lightning discharges and is intended to protect photovoltaic systems.The circuit topology consists of two (three)varistor stages each protected by a thermal disconnection device.
Category IEC/EN/VDE: Class II/Type 2 C
Location of use: Branch sub-distribution boards
Protection modes: (+) - PE, (-) – PE
Protective element: High energy MOVs
Surge discharge ratings: In = 20kA, Imax = 40kA
Internal protection and safety: Thermal disconnector
Status indication: Mechanical flag + remote contacts (R) |
|
The modular lightning protectors of type OF ensure the protection of the electric systems against overpressures being able to appear on their feeding circuit per (effect of the lightning), or of operation stormy weather of coupling on the network (industrial parasites).
Protection is ensured thanks to a spark-gap strong capacity of flow, able to run out with the ground a current of 150 kA without suffering damage.
This module associated with models DGV, makes it possible to constitute a very effective protection in mode common mode differential according to the wiring diagram "C2" of guide UTE 15-443 (still called "3 1").
The lightning protector OF is used for protection upstream of the networks single-phase currents or three-phase particularly exposed (lightning protector of the type 1). It is installed with the TGBT of the installation. It is exclusively intended to be cabled between neutral (NR) and ground (EP) in partnership with lightning protectors DGV, connected to them-even between phase and neutral.
|
|
|
|
