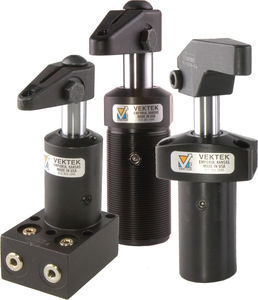

Clamping elements with swing piston
Starting from the off-position the piston swings in the first part of its stroke by a defined angle (swing stroke) and then clamps linearly downwards (clamping stroke).
max. clamping forces from 0.6 to 41.0 kN
max. operating pressure from 150 to 500 bar
max. clamping strokes from 6 to 50 mm
max. total strokes from 14 to 62 mm
|
|
The clamp arm rotates 90° as it extends away from the work piece providing clearance and access for unload/ load operations. Double acting operation and standard magnetic piston offer positive cycles, durability and work piece detection features. Extruded aluminum body mounts directly and rigidly to equipment surfaces in a minimum of space.
Operation cycle:
1) Clamp arm extends (straight line) as it releases work piece from clamp loads.
2) Arm rotates 90° to full extend position.
3) When retracting, clamp arm swings 90°.
Model Code R = clockwise rotation, Model Code L = counterclockwise rotation.
4) With clamp arm in position over the work piece, it follows a straight line path to apply clamping force.
|
|
Compact Pneumatic twist cylinders are linear motion compact cylinders with an internal cam that provides
90 deg swing motion.
Twist cylinders are ideal swing clamps for automated and semi automated assembly and work holding found in circuit board assemblies, medical devices, robotic cells, component assembly and other applications. Because of their compact size and versatile mounting, they also make unique conveyor stops, diverters and escapements.
|
|

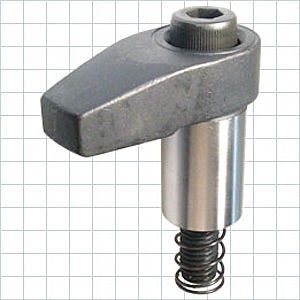

A variety of workpieces can be
clamped by replacing the clamp
arm. Standard and extended
clamp arms are available as
options.
|
|
|
|
|
|
A full range of swing cylinders, work-holding cylinders, applicator cylinders etc. specially designed for the clamping of mechanical parts in automated machining units.
STANDARD
Cartridge actuators, threaded actuators, block actuators, spring actuators
Swings clamps, work-holding cylinders :
QUIRI swing clamps have the unique feature of pivoting in the plan, that is, there is no linear stroke during rotation. The space required for the movement of the arm is therefore minimal, and the entire stroke of the clamp can be used for clamping (except 1 to 2 mm clearance) and wear on rod seals is reduced. There are several options for position detection :
- by use of a sensor rod
- pneumatically
- electrically
- hydraulically
Work-holding cylinders :
Contact force can be generated by a spring, or by air or hydraulic pressure.
T-LOCK and R-LOCK actuators :
These actuators have a patented locking system. They are intended in particular for palletized application, with lock-out occurring thanks to oil pressure. The hydraulic system is only pressurized during the linear movement of the rod.
T-LOCK : Linear displacement actuator with off-pressure lock-out system
R-LOCK : Includes in addition a system of rotation in a single plane.
NON-STANDARD
Our structure allows us to carry out all phases of manufacturing to produce a product that is perfectly suited to your needs. This structure includes a team dealing exclusively with clamping systems :
- a commercial manager
- a design team
- a production team.
Please contact us for additional information
|
|
035 - SELECT Pneumatic Swing/Pull Clamp
StrongHold SELECT pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. They are a rugged and simple design suitable for harsher applications.
1. Double acting in threaded body or lower flange mount styles
2. Range of sizes for maximum clamping forces from 50 to 430 lbs.
3. Swing motions in right, left or straight guided pull
4. Avaiable in 0, 45, 60 or 90 degrees of swing
|
|
* retractable clamping rod, clamping jaw escapes from die
* horizontal clamping surfaces
* clamping force applies perpendicularly to clamping rod (no radial load)
* includes mechanical safety lock, so the die cannot drop from ram in case of pressure fail
* escaping rod prevents any jamming, even in the toughest applications, such as forging
|
|
Linear Pneumatic clamping cylinder, cylinder or combi-tensioning swivel clamp cylinder
linear or swivel the clamping unit with compressed air
Self-locking clamping 9000N
32mm clamping away (10mm in swing clamp)
Overload protection
Swivel angle max. 120 ° adjustable
Various mounting options
|
|
|
|
