The machining centers PRIMA, OPTIMA and VARIA are representatives of a new generation of high-tec metal cutting machines. The fully covered machines with TOStec designation are based on unificated module structure and its parameters can be combined according to customer technological request, from which it is possible to create different version of the machines. This machining centers are suitable for universal machining and for special machining application as well. An application of milling heads makes possible to machine workpieces of complex shape even by 5-axes machining. Machines equipped with an electrospindle are suitable for high speed machining (HSC milling).
|
|
|
|
|
|
G-Mill 550:
5-axis Ultra-Dynamic HSC Machining Center for producing Turbine Blades, Blisks , Impellers and other complex parts.
- g-accelerated 5-axis machining
- Max. part length 550 mm
- Max. part Ø 550 mm
- 20° slanted mono-block gantry concept
- Tailstock CNC controlled
- Spindle power 22 kW, 15000 rpm, 183 Nm
- Toolmagazine 50, 97 or 144 tools
- Palletchanger 2 positions, automatic
G-Mill 850:
5-axis Ultra-Dynamic HSC Machining Center for producing Turbine Blades, Blisks , Impellers and Bling.
- g-accelerated 5-axis machining
- Max. part length 550 mm
- Max. part Ø 850 mm
- 20° slanted mono-block gantry concept
- Tailstock CNC controlled
- Spindle power 20 kW, 15000 rpm, 166 Nm
- Tool taper HSK-A63 / HSK-A80
- Toolmagazine 50, 97 or 144 tools
G-Mill 1150:
5-axis Ultra-Dynamic HSC Machining Center for producing Turbine Blades, Blisks , Impellers and Bling.
- g-accelerated 5-axis machining
- Max. part length 550 mm
- Max. part Ø 1150 mm
- 20° slanted mono-block gantry concept
- Tailstock CNC controlled
- Spindle power 20 kW, 15000 rpm, 166 Nm
- Tool taper HSK-A63 / HSK-A80
- Toolmagazine 50, 97 or 144 tools
|
|
PLANET K30
5-axis CNC machining centre with mobile gantry, designed for milling, drilling, threadcutting and slotting operations on bars or workpieces made of aluminium, PVC, light alloys in general and steel, with section up to 400 x 400 mm. Behind the column there is provision (optional) for installing a cutting
unit with blade dia. 550 mm, serving for making the separation cuts directly on the unmachined bar. The high power (30 kW SI) electro-spindle with HSK63A toolholder, allows performing the various machining operations including heavy duty ones. The 16-place rotary disc tool magazine (N/C axis) can also contain angle machining heads for machining on the bottom face. A blade tool dia. 600 mm is seated in a special extra place. The machine can be used in double mode for minimizing machine downtimes during workpiece loading/unloading. It is also
possible to machine workpieces having different codes and machining operations between the two work areas.
|
|
U5 Universal Machining Centers
Versatile, fast, precise, powerful and competitively priced.
Fully flexible and able to be configured to specific customer needs, the U5 is available in both bridge-type and rail-type configurations with a choice of process-matching spindle heads, the U5 is ideal for manufacturing a variety of materials in the aerospace, off-road, die/mold, packaging, power generation, and job shop industries. Rugged enough to support parts up to 20,000 pounds, the U5 can be configured for heavy equipment applications requiring high horsepower cuts. High-speed, 5-axis contouring can be achieved for aluminum aerospace applications.
For added performance and flexibility on the U5, automatic tool changer, chip conveyor, and enclosure options are also available.
|
|
The Profile Machining Center PBZ HD
Experience high performance !
Worldwide unique is the PBZ® HD from Handtmann. Developed together with international aerospace companies the HPC centre allows machining of solid materials.
Machining rates of up to 98% can be achieved. To ensure quality and precision a new designed clamping system has been integrated. Without additional fixtures you are able to machine your profiles. Thermal compensation and strong clamping forces can cope with difficult materials and long parts.
Be impressed by the possibilities of the Handtmann PBZ® HD
Technical details
- spindle capacity in S1 up to 70 kW
- travel speeds up to 70m/min
- for plastics, composite, aluminium, steel and titanium
|
|

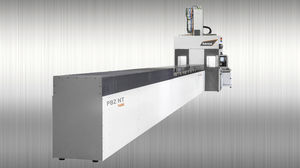

The Profile Machining Center PBZ NT
Nobody can tell you what machining tasks the future will bring to you but with the PBZ NT from Handtmann you are prepared. Experience the flexibility of a top class profiler.
Profile lengths up to 984 inch and the highly flexible clamping system are setting the benchmark for the market. Complete machining from the bar stock on all 6 sides as well the high accuracy go without saying.
Do not limit your possibilities with a just normal machining centre. Get flexibility and productivity for today and future tasks with a Handtmann PBZ NT.
|
|
The Profile Machining Center PBZ LC
Modular designed the HSC centre fits your individual needs. Delivered as 4 or 5 axis centre you can reduce your production costs thanks to the two working zones allowing set up and machining at the same time.
The flexible clamping system from Handtmann allows nearly all profiles to be clamped. The moving portal, equipped with rack and pinion drives and guided on both sides achieves the accuracy required in the automotive or aerospace industry.
|
|
|
|
|
|
5 axes machining for 3D precision milling applications. Several choices of electrospindles enable the machining of plastics, composites or aluminium alloys.
MILLING EQUIPMENT OPTIMIZED FOR THE MACHINING OF FOLLOWING MATERIALS :
. Plastics and composites
. Synthetic resins
. PU and PS foams
. Wood and by-products
. Aluminium
. Brass and alloys
AVAILABLE MODELS :
Models X Travel mm Y Travel mm Z Travel mm
WINNER 75 1250 1540 600
WINNER 100 1550 1540 600
WINNER 150 2050 1540 600
WINNER 1521 1550 2100 900
WINNER 2131 2050 3100 900
TECHNOLOGIES :
. Steel welded fixed frame and gantry, mobile table
. Transmission by ball screws on the 3 cartesian axes (X, Y, Z),
. Guidance : precision linear rails with preloaded ball slides on X, Y, Z axes
. 2 rotative axes (C: +/-200° and A: +/- 120° to +/- 200° as per electrospindle) by precision reducer
MAIN FEATURES :
. Max. speed in mm/sec : 500 X, Y, Z axes
. Max. speed in °/sec : 180 A and C axes
. Positioning accuracy for C and A axes (arcmin) : +/- 2°
. Resolution : 0.002 mm
. Repeatability at 20°C +/- 2° : +/- 0.06 mm
|
|
SP-HSC SERIES
•Longitudinal traverse: 2,500 to 10,500mm
•Vertical traverse “Y-axis”: 1,600 and 2,000mm
•Cross traverse “Z-axis”: 1,200 mm
•Table width: 1,100 and 1,350mm
•Rapid traverse X, Y, Z axes: 36.000mm/min
•Feed range: 5-25,000mm/min
•Digital CNC Heidenhain (Selca, Siemens, Fidia)
•Automatic indexing heads and Orthogonal heads 32kW, 4,000 (5,000, 6,000) rpm, with coolant through the spindle possibility.
•ATC 30, 40 tools.
•Rotary CNC tables 630 to 1,250mm
•CE Full splash guards
|
|
This is the line of machining centre with “traditional technology”, duly designed for heavy duty machining on hard materials (steel, inconel, titanium, etc.). The concept of the ML line is a modular design to allow large dimensional capacity in machining and the application in various industries.
Table surface mm from 4.000 x 1.500 up to 30.000 x 3.000
Max load admitted Kg 6.000 per square meter
Longitudinal travel (step 1.000 mm) mm from 3.000 to 30.000
Cross travel (Y axis) mm 1.000 - 1.250 - 1.500
Vertical travel (Z axis - step 500 mm) mm from 1.500 up to 4.500
|
|
The BF line features a full 5 axis milling head duly designed for profiling jobs in hard materials (steel, inconel, titanium, etc).
Table surface mm from 2.000 x 800 up to 4.000 x 2.000
Max load admitted Kg 20.000
Longitudinal travel (step 500 mm) mm 1.600 - 4.000
Cross travel (Y axis - step 200 mm) mm 800 - 2.000
Vertical travel (Z axis) mm 800 - 1.200
|
|
The LHS line features a longitudinally moving column. It is a medium / large size machining centre with 3 or 5 machining axis. Due to its structure, the machine is suitable for various applications : with moving rotary table, with automatic head change system and with multi working zones. Due to its application flexibility, the machine is suitable for moulds / dies machining, structural aerospace parts and general machining.
Table surface mm from 4.000 x 1.500 up to 30.000 x 3.000
Max load admitted Kg 6.000 per square meter
Longitudinal travel (step 1.000 mm) mm from 4.500 to 30.000
Cross travel (Y axis) mm 1.250
Vertical travel (Z axis) mm 2.000 - 2.700
|
|
MIKRON HPM 1850U
HPM machines are intended for the universal production of high-quality parts with 3, 4 or 5 axes. State-of-the-arte motor-spindles, direct drive round and swivelling axes and the solid machine body offer the very best conditions hand in hand with modern tools to achieve precise and economical production.
|
|
As the leading manufacturer of machines for processing aluminium and PVC profiles, we supply matured solutions for different applications.
You have profile - we will work on it !
Further profile machining centres, for the processing of aluminium profiles as well as for the processing of PVC profiles cover our product range.
|
|
The MGP 150 and 300 are high speed profile machining centers designed to first serve the aerospace industry.
In order to offer a broader range of solutions, Fives Cinetic has developed a new machine tools to handle the most sophisticated machining operations and especially the medium cross sections, the MGP 150.
MGP 150
Developed for medium cross sections
Simplified programming and higher feed rate
Handles the most sophisticated machining operations, without restrictions or delay
The latest technologies to answer today’s and future needs
A Modular concept, key to achieving efficiency and profitability
MGP 300
Simplified programming and higher feedrate
Handles the most sophisticated machining operations, without restrictions or delay
The latest technologies to answer today’s and future needs
Infinite profile length machining process
|
|
CNC MOVING COLUMN WITH INDEPENDENT TABLE HORIZONTAL AND VERTICAL MILLING MACHINE AND MACHINING CENTER
HIGH PERFORMANCE
MODEL 30 KC-AR
- Centralized control panel.
- Digital numerical control.
- Push-button panel with electronic handwheel.
- Rack and double motor and pinion in longitudinal movement.
- Ball screws in cross and vertical movements.
- Counterweight with direct hydraulic cylinder in vertical movement.
- The three movement guided with preloaded roller packs over hardened and ground steel guideways.
- Hydromechanical tool clamping.
- 45º head, manual rotations.
- Hydraulic unit.
- Automatic lubrication.
- Electrical cabinet, with temperature conditioner.
- Platform and perimetric enclosure.
|
|
Preciram
For parts of precision and big size, until 200 tons
High stiffness and damping
- High spindle speed and power (up to 100 kW)
- Super precision headstock and ram accuracy guaranteed
- Dual protection for guideways
|
|
|
|
|
|
5-Axis Multi-Tasking Machining Center
CUBLEX-25 PC2
New Concept : 5-Axis Multitasking Machining Center
Process Integration of Milling, Turning & Grinding (option).
Travel:X/Y/Z mm (in.) 550 / 410 / 450 (21.65 / 16.14 / 17.71)
Travel:B/C deg -110 ~ +110 / 360
Working Surface mm Ø130 (5.11)
Max. Work Size mm (in.) Ø250 x H250 (Ø9.84 x H9.84)
Loading Capacity kg (lb.) 40 (88)
Spindle Speed min-1 15,000 : HSK-A63W
Rapid Traverse:X/Y/Z m/min (ipm) 50 (1,968.5)
Rapid Traverse:B min-1 30
Rapid Traverse:C min-1 200 ( Milling )
3,000 ( Turning / GrindingOptionMode )
5-Axis Multi-Tasking Machining Center
CUBLEX-42PC2
5-Axis Multi-Tasking Excellence
Travel:X/Y/Z mm 520 / 730 / 510 (20.47 / 28.74 / 20.07 in.)
Travel:A/C deg -110 ~ +10 / 360
Working Surface mm Ø300 (Ø11.81 in.)
Max. Work Size mm Ø420 x H350 (Ø16.53 x H13.77 in.)
Loading Capacity kg 200 (440 lb.)
Spindle Speed min-1 12,000 : HSK-A63W (ICTM)
Rapid Traverse:X/Y/Z m/min 50
Rapid Traverse:A min-1 30
Rapid Traverse:C min-1 200 ( Milling )
1,800 ( Turning / GrindingOption Mode )
|
|
In the Aircraft Industry, complicated monolithic parts are becoming more prevalent and are increasing in size recently.
We offer MPF-(5A) series, developed to machine these medium and large size parts by 5-axis machining.
MPF-(5A) has a wide table working space for various workpieces, and is equipped with A & B axis 5-axis Head.
|
|
|
Sail into production - DMG offers a performance worthy of global recognition for 5-axis milling. The DMU 50 / 70 represents the ideal foundation for entry into the innovative CNC universal milling sector, especially for the forward thinking entry-level users and mould making operations, with machines equipped with high-tech components and extensive options, already included in these compact machines. Additionally they are suited for the machining of complex workpieces. In a class by itself: as standard, the DMU monoBLOCK® series comes with 5-axis simultaneous milling capabilities and delivers 200% more dynamics in the rotary axes. Performance and flexibility without limits, and without additional costs: the DMU monoBLOCK® machines can be expanded in modular fashion, for up to 3 or 5-axis machining, and can be equipped with various spindle options. This means efficient universal machining all the way into the high-speed range.
|
|
Universal Machining Centre UBZ® 300
The deciding criteria in the manufacture of models, moulds and tools are outstanding cutting performance and precision.
Thanks to the generous dimensions of the components and their highly rigid fork crowns handtmann machining centres provide the very best in machining technology.
Applications for centres in the UBZ® 300 series include all machining operations on plastics, composite, aluminium and finishing steel.
UBZ® 300: Uncompromising. Superior. Realiable.
Technical details
Spindles up to 52 kW, 28,000 rpm
Travel speeds up to 40 m/min
For plastic, composite, aluminium, steel finishing
|
|
ROMOCUT is the first milling tool that delivers on the promise of providing clean, quiet operation. It creates no dust during the milling process (polystyrol only) thanks to the hollow tool and the integrated vacuum system (total efficiency with polystyrene). The noise level is kept to an
acceptable 80dB or lower. ROMOCUT doesn’t require any construction work
during the installation, saving you money. ROMOCUT is a NC milling tool developed by ROMER France, a leading manufacturer of portable articulated arms. Thanks to its unique design, ROMOCUT allows designers
to create new models in record times. It mills all standard soft materials used in design studios, including lab, polystyrene, resins, clay and similar; on the other hand, it can also be used for modifying and correcting existing parts right on the shop floor. ROMOCUT is easy to install and to run, and saves considerable time by letting designers modify full-scale models in real
time on site.
|
|
T SERIES
•Longitudinal traverse, “X” axis: 2,000 to 3,500 mm
•Vertical traverse, “Y” axis: 1,000 - 1,250 - 1,400 -1,600 mm
•Cross traverse, “Z” axis: 1,000 and 1,200 mm
•Rapid traverse "X, Y, Z" axes : 25,000 mm/min
•Feed range: 5-10,000 mm/min
•Digital CNC Heidenhain (Selca, Fagor, Siemens, Fidia)
•Universal head and automatic indexing heads 24-32 kW, 3,000 (4,000 - 5,000 - 6,000) rpm with coolant through the spindle possibility.
•ATC 20 (30,40, 60) tools.
•CE Full splash guards
|
|
S SERIES
•Longitudinal traverse, "X" axis: 2,500 to 22.500 mm
•Vertical traverse, "Y" axis: 1,600 - 2,000 mm
•Cross traverse, "Z" axis: 1,000, 1,200 and 1,500 mm
•Table width: 800, 1,100 and 1,350 mm
•Rapid traverse "X, Y, Z" axes: 25,000mm/min
•Feed range: 5-10,000mm/min
•Digital CNC Heidenhain (Selca, Fagor, Siemens, Fidia)
•Automatic indexing heads and Orthogonal heads 32 kW, 3,000 (4,000, 5,000, 6,000) rpm, with coolant through the spindle possibility.
•ATC 20, 30, 40, 60 and 80 tools.
•Rotary CNC tables 630 to 1,250mm
•CE Full splash guards
|
|
The EMCOMAT FB-450 L offers high chip-cutting power, precision and universality. The generous workspace allows large workpieces to be machined. EMCO's wide range of options covers everything you need to handle even the most complicated machining projects. The EMCOMAT FB-450 L's circulating ball screw and linear guides allow precise axis positioning and higher rapid motion speeds.
Highlights: swivel-mounted control panel, reversible main spindle, covers eliminate the risk of injuries, shafts and gears hardened and ground, linear guides.
|
|
New Super Mill has the highest output and highest torque milling capability in its class.
Chuck size / Bar capacity: 6"/ 65mm
Distance between spindle noses: 870mm
Max. turning diameter / length: 250mm/555mm
Slide travel Y (Upper/Lower): ±50mm/+50mm -20mm
Spindle speed (L/R): 4,500min-1/5,000min-1
Spindle motor (L/R): 18.5/11kW/15/11kW
Rotating tool spindle: 7.5/3.7kW 40Nmx2
Rotating tool spindle speed: 6,000min-1
Type of turret head/Number of indexing: Dodecagonal drum turret/24x2
|
|
The UNIVERSAL range is fitted with a teach-in control and with an universal double-rotating head manually controlled.
The HIGH-SPEED MACHINING range is following with a CNC control including the options "high-speed machining", "high-precision contour" and vertical high-frequency vector-controlled head.
The fixed bed structure in Granitan enhances sturdiness and accuracy. The fixed table offers a large clamping surface and allows an important load without any tilting risk.
The measure is done thanks to high-precision optical scales on X and Y axes.
|
|
