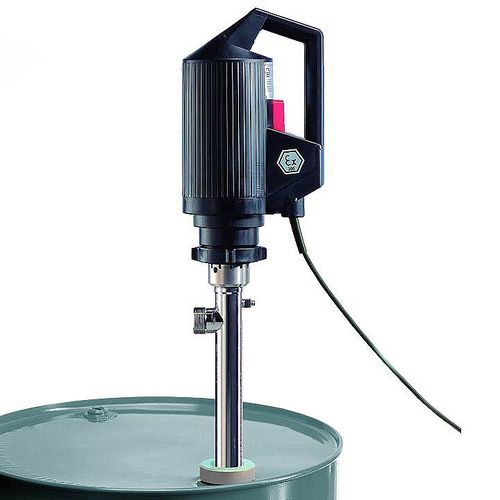

Gasoline pump F-INOX1000-EX seriesfor solventsalcoholwater
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for solvents, alcohol, oil, for diesel, gasoline
- Operation
- electric
- Priming
- semi-submersible
- Technology
- turbine
- Mobility
- stationary
- Domain
- for the petrochemical industry
- Applications
- drum
- Material
- stainless steel
- Fluid specification
- flammable products
- Voltage
- 230 V
- Protection level
- ATEX
- Other characteristics
- standard
- Flow
120 l/min, 135 l/min
(31.70065 us gal/min, 35.66323 us gal/min)- Head
7 m, 8 m
(22'11" , 26'02" )- Power
600 W, 700 W
(0.82 hp, 0.95 hp)- Fluid temperature
100 °C
(212 °F)
Description
Pump marking: ATEX 94/9/CE ATEX II 2G IIB T3.
Technical data
Pump compliant with ATEX standard 94/9/EC ATEX II 2G IIB T3
Max. viscosity: 800 cP
Max. density: 1.6
IP 54 and non-Atex plug
Pump/motor coupling: 1/8 turn quick connector
Probe length: 1000 millimetres
Outer Ø: 40 millimetres
Max. density: 1.6
Max. TDH: 7 metres (F-INOX1000-700EX), 8 m (F-INOX1000-D600EX)
Specifications and advantages:
Electric barrel-emptying pump
Characteristics
More Information
Fluid - Alcohol, Diluants, Petrol, Flammable solvents
Technology - Turbine
ATEX - Yes
Pump marking - ATEX 94/9/CE ATEX II 2G IIB T3
Pump - Bare
Materials - Stainless steel
Mechanism - Stainless steel
