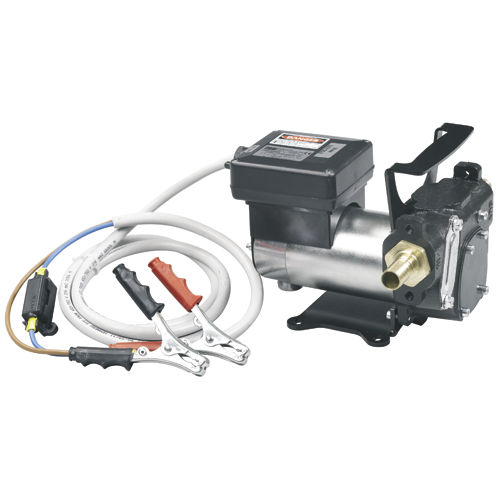

Diesel pump FEC serieswith DC motorself-primingvane
Add to favorites
Compare this product
Characteristics
- Fluid
- for diesel
- Operation
- with DC motor
- Priming
- self-priming
- Technology
- vane
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer
- Voltage
- 24 V
- Flow
2.1 m³/h, 3.3 m³/h, 4.2 m³/h
(74.1608 ft³/h, 116.5384 ft³/h, 148.3216 ft³/h)- Head
Max.: 15 m
(49'02" )Min.: 0 m
(0'00" )- Power
0.3 kW
(0.41 hp)
Description
Supplied with a switch: clamps and cables
Rotation speed: 2900 rpm (FEC3), 1800/3500 rpm (FEC4)
Current: 35 (FC3), 16/25 (FC4)
Orifice Ø: 1"- Ø 20
Intermittent use: max. duration of 30 min
Characteristics
More Information
Fluid - Diesel
Technology - DC, Vane
ATEX - No
Pump - Equipped
Materials - Cast-iron
Mechanism - Steel rotor; Delrin vanes
