同軸歯車減速機 P142 series

中空軸フランジ取り付け精密

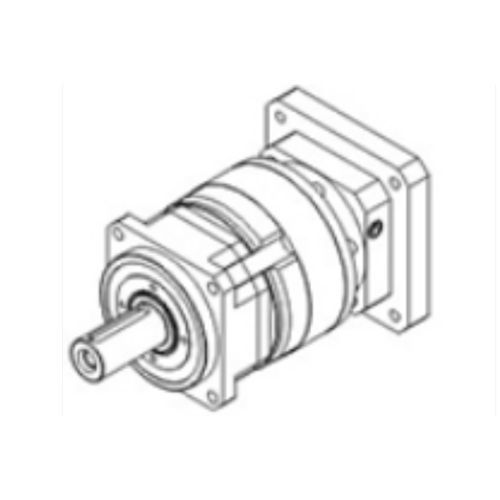

The output planetary carrier of the reducer adopts an integrated nut, designed to eliminate axial clearance. The front and rear bearings are distributed over a wide span within the integrated box body, forming an ultra-strong integrated structure and ensuring high torsional rigidity. It offers ultra-strong radial load capacity and excellent axial load accommodation. The manufacturing process involves meticulous finishing to ensure extremely high coaxiality.Reducer Outline DrawingMain Technical ParametersLevelFirst StageSecond StageReduction Ratio3/4/5/812/15/16/20/25/32/40/64Body Length290334.5Max Radial Force10000N12200NMax Axial Force16000N21000NFull Load Efficiency≥96%≥94%Weight16.5Kg22.5KgLifespan ≥20000 hoursRated Input Speed2500 rpm2500 rpmMax Input Speed4500 rpm4500 rpmMotor Output3000W3000WGear Accuracy Grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65Lubrication MethodLong-term lubricationLong-term lubricationInstallation MethodFlangeFlangeCategory: GearboxTags: AC Servo Motor and DriverSpecifications / Technical FeaturesIntegrated nut planetary carrier for zero axial clearanceWide-span bearing distribution for high rigidityUltra-strong radial and axial load capacityHigh coaxiality through precision finishingReduction ratios: 3/4/5/8 (1st stage), 12/15/16/20/25/32/40/64 (2nd stage)Body length: 290 mm (1st stage), 334.5 mm (2nd stage)Max radial force: 10000N (1st stage), 12200N (2nd stage)Max axial force: 16000N (1st stage), 21000N (2nd stage)Full load efficiency: ≥96% (1st stage), ≥94% (2nd stage)Weight: 16.5Kg (1st stage), 22.5Kg (2nd stage)Lifespan: ≥20000 hours (2nd stage)Rated input speed: 2500 rpmMax input speed: 4500 rpmMotor output: 3000WGear accuracy grade: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection grade: IP65Lubrication: Long-term lubricationInstallation: Flange
