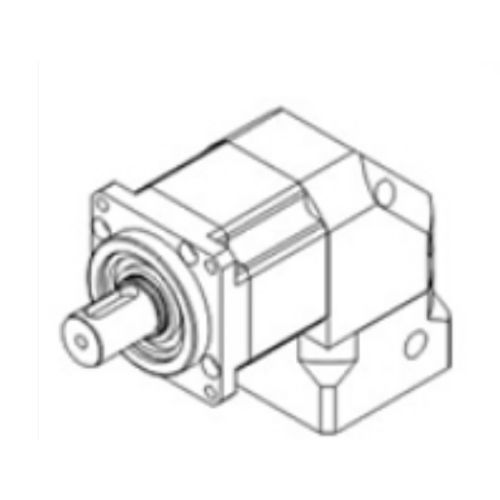

直交軸歯車減速機 WPF60 series

中空軸精密大型サイズ

The output planetary carrier of the reducer adopts an integrated nut design, eliminating axial clearance. The front and rear bearings are distributed over a wide span within the integrated box body, forming an ultra-strong integrated structure and ensuring high torsional rigidity. The product offers ultra-strong radial load capacity, excellent axial load accommodation, and adopts a process that ensures extremely high coaxiality through meticulous finishing.LevelFirst StageSecond StageThird StageReduction Ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body Length150.5166.5182.5Max Radial Force400N500N800NMax Axial Force300N390N700NFull Load Efficiency≥94%≥92%≥88%Weight2.0Kg2.3Kg2.6KgLifespan≥20000 hours≥20000 hours≥20000 hoursRated Input Speed3000 rpm3000 rpm3000 rpmMax Input Speed8000 rpm8000 rpm8000 rpmMotor Output400W400W400WGear Accuracy Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-life lubricationLong-life lubricationLong-life lubricationInstallation MethodFlangeFlangeFlangeIntegrated nut planetary carrier eliminates axial clearanceWide-span bearing distribution for high rigidityUltra-strong radial and axial load capacityHigh coaxiality through precision finishingMultiple reduction ratios and stages availableHigh efficiency and long lifespanIP65 protection, suitable for harsh environmentsFlange installation
