直交軸歯車減速機 WPF42 series

中空軸フランジ取り付け精密

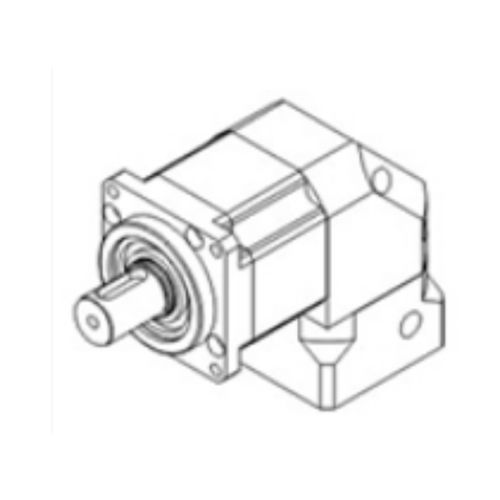

The output planetary carrier of the reducer adopts an integrated nut design, eliminating axial clearance. The front and rear bearings are distributed over a wide span within the integrated box body, forming an ultra-strong integrated structure and ensuring high torsional rigidity. It features ultra-strong radial load capacity and excellent axial load accommodation. The manufacturing process involves time-consuming finishing steps to ensure extremely high coaxiality.External Dimension Drawing of the Reducer:Main Technical Parameters:LevelFirst StageSecond StageReduction Ratio4/5/816/20/25/32/40Body Length72.284.2Max Radial Force280N320NMax Axial Force200N240NFull Load Efficiency≥90%≥86%Weight0.7Kg0.9KgService Life≥20000 hours≥20000 hoursRated Input Speed2500 rpm3000 rpmMax Input Speed4500 rpm6000 rpmGear Accuracy Grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65Lubrication MethodLong-life lubricationLong-life lubricationInstallation MethodFlangeFlangeCategory: GearboxTag: AC Servo Motor and DriverSpecifications / Technical Characteristics:Integrated nut planetary carrier eliminates axial clearanceWide-span bearing distribution for high rigidityUltra-strong radial and axial load capacityHigh coaxiality due to precision finishingReduction ratios: 4/5/8 (1st stage), 16/20/25/32/40 (2nd stage)Body length: 72.2 mm (1st), 84.2 mm (2nd)Max radial force: 280N (1st), 320N (2nd)Max axial force: 200N (1st), 240N (2nd)Full load efficiency: ≥90% (1st), ≥86% (2nd)Weight: 0.7Kg (1st), 0.9Kg (2nd)Service life: ≥20000 hoursRated input speed: 2500 rpm (1st), 3000 rpm (2nd)Max input speed: 4500 rpm (1st), 6000 rpm (2nd)Gear accuracy: Grade 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection grade: IP65Lubrication: Long-life lubricationInstallation: Flange
