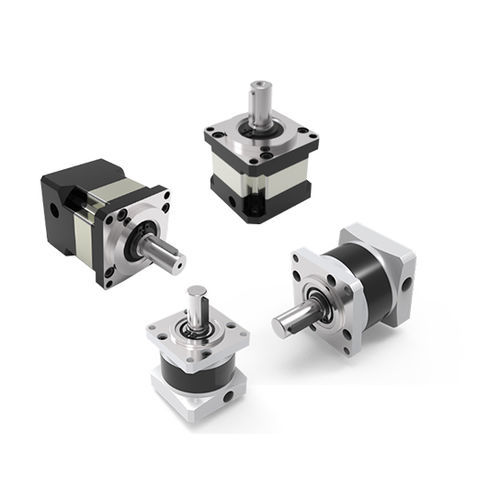

同軸歯車減速機 PF160 series

中空軸

The output planetary carrier of the reducer adopts an integrated nut, designed to eliminate axial clearance. The front and rear bearings are distributed over a wide span within the integrated box body, forming an ultra-strong integrated structure and ensuring high torsional rigidity. It features ultra-strong radial load capacity, excellent axial load accommodation, and adopts a process that ensures extremely high coaxiality through meticulous finishing.Outline Drawing of the ReducerMain Technical ParametersLevelFirst StageSecond StageThird StageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length290334.5379Max Radial Force10000N12200N20000NMax Axial Force16000N21000N36000NFull Load Efficiency≥96%≥94%≥90%Weight17.5Kg23.5Kg27.5KgService Life≥20000 hours≥20000 hours≥20000 hoursRated Input Speed2500 rpm2500 rpm2000 rpmMax Input Speed4500 rpm4500 rpm5000 rpmMotor Output3000W3000W3000WGear Accuracy Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-term lubricationLong-term lubricationLong-term lubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: AC Servo Motor and DriverSpecifications / Technical FeaturesIntegrated planetary carrier with nut eliminates axial clearanceWide-span bearing distribution for high rigidityUltra-strong radial and axial load capacityHigh coaxiality through precision finishingReduction ratios: 3/4/5/8 (1st), 12/15/16/20/25/32/40/64 (2nd), 80/100/120/125/160/200/256/512 (3rd)Body lengths: 290mm, 334.5mm, 379mmMax radial force: up to 20000NMax axial force: up to 36000NFull load efficiency: up to 96%Weight: up to 27.5KgService life: ≥20000 hoursRated input speed: up to 2500 rpmMax input speed: up to 5000 rpmMotor output: 3000WGear accuracy: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection grade: IP65Lubrication: Long-term lubricationInstallation: Flange
