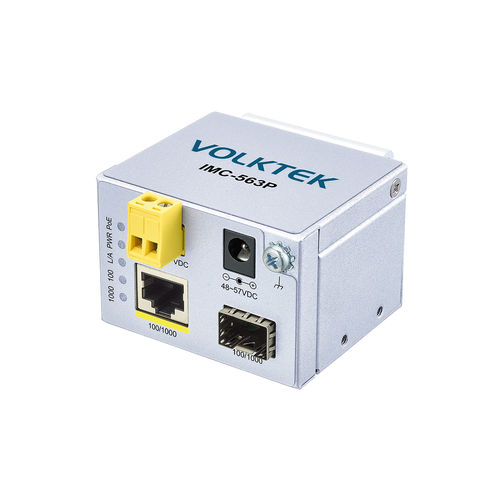

メディア変換器 IMC-563P

電源イーサネットDINレール

Product FeaturesOne 10/100/1000 PoE+ port and one 100/1000 SFP portCombines fiber communication and PoE+ for long-distance communication and noise resistance, enabling efficient data transmission and power supplyCompact mini size with included adapter, designed to fit perfectly with bullet camerasMetal housing with IP30 protection, ideal for environments requiring efficient heat dissipationOperating temperature range: -40°C to 75°C (-40°F to 167°F)* Maximum operating temperature range by UL: -40°C to 70°C (-40°F to 158°F)Product OverviewThe IMC-563P is an industrial mini converter equipped with a 10/100/1000 PoE+ port and an FX/GbE SFP port, enabling long-distance PD connections to network centers using fiber. Compatible with third-party devices, the multi-rate SFP port supports various SFP modules, allowing data transmission to devices such as surveillance cameras and wireless access points.This media converter uses LED indicators for users to monitor link connections. Its compact design fits in the palm of your hand, and with the included adapter, it can be easily mounted on DIN rails or bullet cameras. It supports two power input methods: terminal block and DC power input, offering versatile installation options.The IMC-563P is built with industrial-grade components and housed in a high thermal conductivity IP30 aluminum case, providing robust protection against tools and external hazards. It is designed to withstand vibration, shock, free fall, and interference, operating stably in temperatures from -40°C to 75°C (-40°F to 167°F), making it suitable for extreme industrial applications. For reliability, it features redundant power via terminal block and alarm relay contacts, issuing alerts in case of power failure to ensure non-stop operation.FunctionsCompact size: Ideal for placement in outdoor IP camera enclosures, easily installed in limited spaces, providing flexible operation and necessary connections and power supply even in tight locations.Easy plug-and-play operation: The IMC-563P features Auto-MDI/MDIX and Auto-negotiation on copper ports, automatically detecting optimal operating modes and settings, simplifying installation without complex setup.Robust switch performance: Equipped with surge and ESD protection, offering high resistance to electromagnetic interference and electrical surges, ensuring stable signal transmission and device protection in demanding environments.SpecificationsStandards: IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus)Interface: 1 x 100/1000BASE-T (PoE RJ45), 1 x FX/GbE SFP; LED Panel: PWR, Fiber, RJ45, ALM, L/A, 1000, 100Power: Input: 48~57V DC via terminal block, 48V DC via DC jack; Consumption: <36 WattMechanical and Environment: Housing: Metal (IP30 Protection); Mounting: DIN Rail, Wall-Mount (Optional); Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5~95% RH (non-condensing); Weight: 185 g (0.41 lb); Dimensions: 60.5 x 42.5 x 50 mm (2.38 x 1.67 x 1.97 in)ModelDescriptionIMC-563P1x 100/1000Base-T RJ45 PoE+ to 1x FX/GbE SFP media converter*Specifications subject to change without prior notice.Key Features / Technical Specifications:10/100/1000 PoE+ port and 100/1000 SFP portFiber and PoE+ for long-distance, noise-resistant communicationCompact mini size, adapter includedIP30 metal housing for efficient heat dissipationOperating temperature: -40°C to 75°CRedundant power input and alarm relaySurge and ESD protectionDIN rail and wall-mount optionsWeight: 185g; Dimensions: 60.5 x 42.5 x 50 mm
