デジタル変換器 IMC-553

速度通信メディア

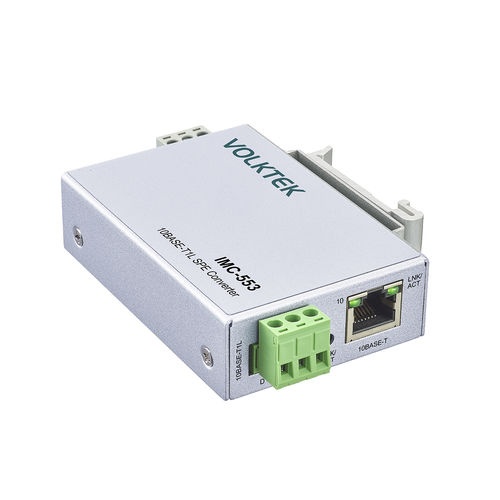

Product FeaturesOne 10BASE-T1L SPE port and one 10BASE-T RJ45 portSwitching between various modes including Auto and Master/Slave using DIP switchesCompact sizeMetal housing with IP30 protection, ideal for environments requiring efficient heat dissipationClear device status indicators: 3-pin terminal block and LED indicators for 10BASE-T1LSupports various mounting options: DIN rail and wall mountingCompliant with IEEE 802.3cg SPE standard, enabling 10 Mbps Ethernet communication over distances up to 1000 metersUtilizes existing fieldbus wiring for simple industrial Ethernet deployment, reducing costs and improving scalabilitySeamless interoperability with existing networks using standard CAT5/6 cablesOperating temperature range: -40°C to 75°C (-40°F to 167°F)Product OverviewThe IMC-553 is an unmanaged SPE (Single Pair Ethernet) media converter specialized for industrial control networks, enabling seamless integration. Housed in a robust metal enclosure with IP30 protection, this compact converter delivers high reliability even in harsh environments thanks to its wide operating temperature range of -40°C to 75°C. Equipped with a 10BASE-T1L SPE port and a 10BASE-T RJ45 port, it is designed to flexibly accommodate diverse connectivity requirements. The 3-pin terminal block and LED indicators allow for visual confirmation of device status, making monitoring during operation easy. The DIP switch supports automatic and master/slave modes, providing necessary functions while keeping configuration simple. The IMC-553 supports both DIN rail and wall mounting, offering high installation flexibility for various environments and needs. Compliant with the IEEE 802.3cg SPE standard, it enables 10 Mbps Ethernet communication over distances up to 1000 meters. This feature allows the use of existing fieldbus cables, reducing costs and simplifying wiring. Especially attractive is the ability to expand industrial Ethernet through connections with new sensors and actuators. Furthermore, the IMC-553 can seamlessly interoperate with existing networks via standard CAT5/6 cables, making it a reliable solution designed to meet industrial connectivity needs and facilitate smooth integration of industrial automation systems.FunctionsSimplified WiringThe IMC-553 simplifies cable configuration and installation by using a single pair of twisted copper wires. This simple connection method reduces wiring work and saves time and costs. By using only one pair of twisted copper wires, cable configuration is simplified and installation complexity is reduced.Space and Weight SavingsSPE cables are thin and lightweight, making them especially suitable for applications where space and weight are important. This facilitates the placement of industrial IoT devices and improves installation and maintenance efficiency. Suitable for applications where space and weight are important, contributing to improved performance of industrial IoT.Rugged Components Designed for Harsh Industrial EnvironmentsThis single-pair Ethernet switch uses industrial-grade components and is designed to withstand harsh environmental conditions. With excellent thermal conductivity and housed in an IP30 aluminum case, it is resistant to vibration, electromagnetic interference (EMI), electrostatic discharge (ESD), power surges, overvoltage, overcurrent, and reverse polarity, ensuring stable long-term operation. It can operate in a wide temperature range from -40°C to 75°C, providing reliability even in harsh industrial environments. In addition, it complies with international safety standards such as CE, FCC, and ROHS, ensuring safe operation.SpecificationsStandards: IEEE 802.3, 10BASE-T, 10BASE-T1L (Compliant)Interface: Ports: 1 x 10BASE-T Port, 1 x 10BASE-T1L PortDIP Switch: Auto, Master/SlaveLED Panel: System: PWR (G), SPE: LNK/ACT (G/A), 10BASE-T: 10 (G), LNK/ACT (G)Power: Input Voltage: 12~48VDCPower Consumption: System: 3WMechanical and Environment: Housing: Metal (IP30 Protection)Operating Temperature: -40°C~75°C (-40°F~167°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 5 to 95% RH (non-condensing)Storage Humidity: 5 to 95% RH (non-condensing)Weight: 205.5gDimension (WxHxD): 86.2 x 23.4 x 59.4 mm (3.39 x 0.92 x 2.34 inch)Technical Specifications / Features:Unmanaged Single Pair Ethernet (SPE) media converter for industrial control networks10BASE-T1L and 10BASE-T RJ45 portsWide operating temperature: -40°C to 75°CIP30 metal housingDIN rail and wall mounting supportCompliant with IEEE 802.3cgPower input: 12~48VDCPower consumption: 3WDimensions: 86.2 x 23.4 x 59.4 mmWeight: 205.5gCE, FCC, ROHS certified
