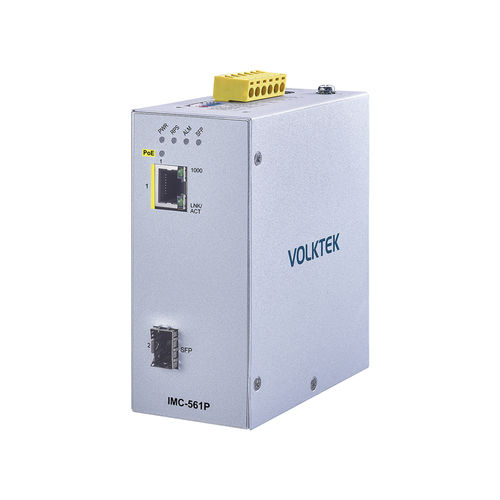

メディア変換器 IMC-561P

信号イーサネットDINレール

Product Features: One 10/100/1000 PoE+ port and one 100/1000 SFP port Combines fiber communication and PoE+ for long-distance communication and noise resistance, enabling efficient data transmission and power supply Link Fault Signaling function to check network connection status Line loopback technology eliminates external factors, making it easier to identify the cause of problems Metal housing with IP30 protection, ideal for environments requiring efficient heat dissipation Operating temperature range: -10°C to 60°C (14°F to 140°F) Product Overview: The IMC-561P is an industrial converter equipped with a 10/100/1000 PoE+ port and an FX/GbE SFP port for long-distance PD connections from fiber to PoE+ at the network center. Compatible with third-party devices, the multi-rate RJ45 port adapts to different speeds and sends data to the SFP port compatible with modules of different speeds. The media converter uses LED signals to monitor link connections. The device uses line loopback for device diagnostics and troubleshooting. Data transfer is controlled using flow control. This media converter is built with industrial-grade components and enclosed in a high thermal conductivity IP30 aluminum case, protecting the device from tools and hazards. Designed for indoor and cabinet applications, it supports temperatures from -10°C to 60°C (14°F to 140°F). For reliability, redundant power and terminal block alarm relay contacts ensure non-stop operation and provide warnings in case of power loss. Functions: Connection of powered devices using intelligent PoE technology: New surveillance cameras and wireless access points connect to other devices using energy-saving PoE technology. This media converter supplies a power budget of 30W to one compatible device and automatically starts with plug-and-play functionality. User-friendly monitoring of signal strength and fault links: Link Fault Signaling (LFS) easily determines the strength of the optical signal and detects fault links on copper and fiber ports. Resistant to harsh environments: Built with industrial-grade components, tested in-house, and certified for reliable operation by international safety organizations such as CE, FCC, and ROHS. Withstands medium to high temperatures (-10°C to 60°C, 14°F to 140°F), suitable for use near machinery or inside cabinets. Specifications: Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet, EEE) Interface: Ports: 1 x 10/100/1000BASE-T (PoE RJ45), 1 x 100FX/GbE SFP Slot LED Panel: PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT DIP Switch: Primary/Redundant Power Voltage Drop Alarm setting Power: Input Voltage: Primary: 48~57VDC, Redundant: 48~57VDC Power Connection: 4-pin DC-Jack (48V DC)(Primary Power Input), 6-pin Terminal block (Primary/Redundant Power Input) Power Input Polarity Protection: Present Power Voltage Drop Alarm: Primary/Redundant Power Input Alarm Relay: One relay output with current carrying capacity of 1A @ 24V DC Power Consumption: 7W (System), 40W (with 1 PoE plus fully loaded) ESD Protection: Present Surge Protection: Present Mechanical and Environment: Housing: Metal Case (IP30 protection) Mounting: DIN-Rail, Wall Mount (optional) Operating Temperature: -10°C~60°C (14°F~140°F) Storage Temperature: -40°C~85°C (-40°F~185°F) Operating Humidity: 5 to 95% RH (non-condensing) Storage Humidity: 5 to 95% RH (non-condensing) Weight: 385 g (0.85 lb) Dimension (WxHxD): 50 x 116 x 100 mm (1.97 x 4.57 x 3.94 in) Order Information: ModelDescriptionIMC-561P1 x 10/100/1000 PoE+ to 1 x FX/GbE SFP Hardened Converter *Specifications are subject to change without notice. Technical Specifications / Features: One 10/100/1000 PoE+ port and one 100/1000 SFP port Fiber and PoE+ combination for long-distance and noise-resistant communication Link Fault Signaling (LFS) for network status monitoring Line loopback for diagnostics IP30 metal housing for efficient heat dissipation Operating temperature: -10°C to 60°C Redundant power input and alarm relay DIN-Rail and optional wall mounting CE, FCC, ROHS certified Dimensions: 50 x 116 x 100 mm Weight: 385 g
