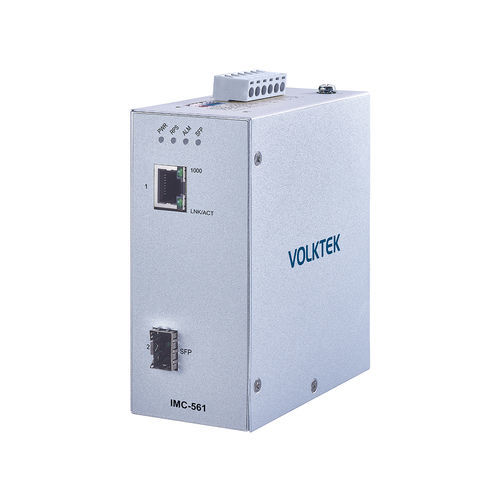

メディア変換器 IMC-561

信号イーサネットDINレール

Product Features10/100/1000 RJ45 - 100/1000 SFPConversion from copper to fiber (enabling long-distance, noise-free, clear communication)Link Fault Signaling function to check network connection statusLine loopback technology to eliminate external factors and easily identify the cause of problemsIP30-protected aluminum housing, ideal for environments requiring efficient heat dissipationOperating temperature range: -10°C to 60°C (14°F~140°F)Product OverviewThe IMC-561 is an industrial converter with 10/100/1000 RJ45 and FX/GbE SFP, designed for long-distance fiber connections to network centers. This device features multi-rate RJ45 ports compatible with third-party devices, adapting to various speeds. It also supports SFP modules of different speeds, offering flexible connection options.This media converter is equipped with LED indicators for easy monitoring of link connections. The device includes a Line LoopBack function for diagnostics and troubleshooting. Flow control optimizes data transmission and ensures reliable communication.The IMC-561 uses industrial-grade components and is housed in a high thermal conductivity IP30 aluminum case, providing robust protection against tools and external hazards. It offers high resistance to vibration, shock, free fall, and interference, and operates stably in temperatures from -10°C to 60°C (14°F~140°F). Suitable for harsh environments, it is equipped with redundant power and alarm relay contacts to ensure reliability. In case of power failure, it issues alerts and ensures non-stop operation.FeaturesRobust electrical and electromagnetic protectionThe IMC-561 is designed to withstand EMI (electromagnetic interference), ESD (electrostatic discharge), power surges, overvoltage, overcurrent, and reverse polarity.User-friendly signal strength and fault link monitoring systemLFS (Link Fault Signaling) allows easy identification of optical signal strength and detection of faulty links on both copper and fiber ports.Redundant power systemSimultaneous power supply from two different sources (e.g., SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail AC-DC power adapters) with power failure alarm function. This ensures redundancy and stable operation even during power failures. The power outage alarm function allows real-time monitoring of power status.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet, EEE)Interface: 1 x 10/100/1000BASE-T (RJ45), 1 x 100FX/GbE SFP SlotLED Panel: PWR, RPS, ALM, SFP, 1000, LNK/ACTDIP Switch: Primary/Redundant Power Voltage Drop Alarm settingPower: Input Voltage: Primary: 20~57V DC, Redundant: 20~57V DC; Power Connection: 6-pin Terminal block (Primary/Redundant Power Input); Power Input Polarity Protection: Present; Power Voltage Drop Alarm: Primary/Redundant Power Input; Alarm Relay: One relay output with current carrying capacity of 1A @ 24V DC; Power Consumption: 5.5W; ESD Protection: Present; Surge Protection: PresentMechanical and Environment: Housing: Metal Case (IP30 protection); Mounting: DIN-Rail, Wall Mount (optional); Operating Temperature: -10°C~60°C (14°F~140°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 380 g (0.84 lb); Dimension (WxHxD): 50 x 116 x 100 mm (1.97 x 4.56 x 3.93 in)ModelDescriptionIMC-5611 x 10/100/1000 RJ45 to 1 x FX/GbE SFP Industrial Converter, -10°C~60°C (14°F~140°F)*Specifications subject to change without prior notice.Key Features:10/100/1000 RJ45 - 100/1000 SFPCopper to fiber conversionLink Fault SignalingLine loopback for troubleshootingIP30 aluminum housingOperating temperature: -10°C to 60°C
