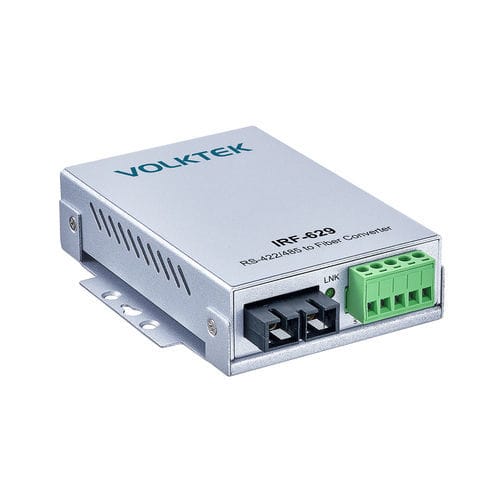

メディア変換器 IRF-629

RS-232RS-485から光ファイバー単一モード-マルチモード

Product FeaturesRS-422/485 to Fiber1 Serial RS-422/485 port1 Fiber port (ST multi-mode and SC single-mode)Enable or disable functions and options using DIP switchesLED indicators for device operation statusOperating temperature range: 0°C~50°C (32°F~122°F)Product OverviewThe IRF-629 is a media converter from RS-422/485 to fiber optic. It is equipped with LED indicators that visually notify users of transmission activity and connection status. It supports legacy devices using serial port connections and is highly suitable for use in manufacturing sites. This media converter supports both single-mode and multi-mode, allowing data transmission over distances of 2km/30km/60km/100km according to user needs. Additionally, the IRF-629 supports both ST and SC connectors, making it a highly flexible solution. The media converter operates in a temperature range of 0°C to 50°C (32°F to 122°F). Its standard size design makes it ideal for rack-mounting multiple media converters together.FunctionsExpandable fiber connection: Up to 2 km with multi-mode, up to 120 km with single-mode fiber.Space-saving design: Compact and DIN-rail mountable.Effective control with DIP switches: DIP switches allow selection of 2-wire or 4-wire data transmission for RS-422/485 connections, enabling flexible network configuration without changing network settings.User-friendly monitoring: Equipped with LED status indicators for monitoring power and fiber connections, allowing easy status checks and quick troubleshooting.SpecificationsStandards: Serial Standards: RS-232Interface: 1 x Serial RS-422/485 (Terminal Block), 1 x Fiber (ST/SC; Multi-mode / Single-mode)LED Panel: PWR, LNK, RCVDIP Switches: DIP1: N/A, DIP2: N/A, DIP3: Enable/disable 2-wire/4-wire mode, DIP4: Enable/disable terminator (TMR)Power: Input Voltage: 9~32V DC, Power consumption: 2.4WMechanical and Environment: Housing: Aluminum, Mounting: Wall-Mount, DIN-Rail (Optional), Operating Temperature: 0ºC~50ºC (32°F~122°F), Storage Temperature: -20ºC~80ºC (-4ºF~176ºF), Operating Humidity: 5 to 95% RH (non-condensing), Storage Humidity: 5 to 95% RH (non-condensing), Weight: 280 g (0.62 lb), Dimension (D x W x H): 109.2 x 90 x 31.5 mm (4.3 x 3.54 x 1.24 in)Ordering InformationModelDescriptionIRF-629MCRS-422/485 to Multi-mode Fiber Converter (ST Connector, 2km)IRF-629MTRS-422/485 to Multi-mode Fiber Converter (MT Connector, 2km)IRF-629SCRS-422/485 to Single-mode Fiber Converter (SC Connector, 30km)Specifications subject to change without prior notice.Technical Specifications / Features:RS-422/485 to Fiber media converterSupports both single-mode and multi-mode fiberST and SC connector supportDIN-rail and wall-mount optionsOperating temperature: 0°C~50°CInput voltage: 9~32V DCPower consumption: 2.4WWeight: 280gDimensions: 109.2 x 90 x 31.5 mm
