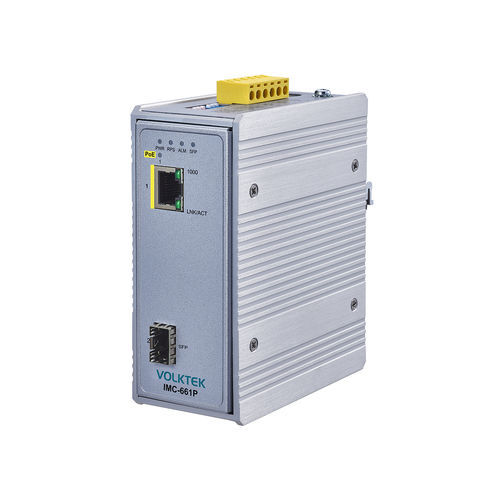

メディア変換器 IMC-661P

信号イーサネットDINレール

Product FeaturesOne 10/100/1000 PoE+ port and one 100/1000 SFP portCombines fiber communication and PoE+ for long-distance communication and noise resistance, enabling efficient data transmission and power supplyLink Fault Signaling function to check network connection statusLine loopback technology eliminates external factors, making it easier to identify the cause of problemsIP30-protected aluminum housing, ideal for environments requiring efficient heat dissipationOperating temperature range: -40°C~75°C (-40°F~167°F)Product OverviewThe IMC-661P is an industrial converter equipped with 10/100/1000 PoE+ ports and FX/GbE SFP ports, enabling long-distance PD connections to network centers using fiber. The multi-rate RJ45 port is compatible with third-party devices and automatically adapts to various speeds, allowing data transmission to SFP ports compatible with different speed modules.The IMC-661P media converter is equipped with LED indicators that allow users to monitor link connections. The Line LoopBack function enables device diagnostics and troubleshooting. Additionally, the flow control function properly manages data transmission for stable communication.The IMC-661P media converter is built with industrial-grade components and housed in a high thermal conductivity IP30 aluminum case, providing protection from tools and hazards. It is designed to withstand vibration, shock, free fall, interference, and temperature ranges from -40°C to 75°C (-40°F to 167°F), making it ideal for extreme industrial applications. The terminal block redundant power supply and alarm relay contacts ensure reliability, issuing alerts in the event of power failure and guaranteeing non-stop operation.FeaturesEquipped with intelligent PoE technologyThe IMC-661P can connect to new surveillance cameras and wireless access points (WAP) using energy-saving PoE technology. This media converter features plug-and-play functionality, automatically starting operation when connected. It supplies up to 30 watts of power budget, providing efficient and stable power to PoE-compliant devices.User-friendly signal strength and fault link monitoring systemLFS (Link Fault Signaling) allows easy identification of optical signal strength and detection of faulty links on both copper and fiber ports.Designed to withstand harsh environmentsThe IMC-661P media converter is designed to meet the demands of industrial networks and deliver reliable performance even in harsh environments. Using industrial-grade components and obtaining international certifications such as CE, FCC, and ROHS, it guarantees reliable operation under severe environmental conditions. Furthermore, it supports a wide temperature range from -40°C to 75°C and offers high electromagnetic interference resistance, providing stable performance and trusted as a critical part of industrial networks.SpecificationsStandardsIEEE 802.310BASE-TIEEE 802.3u100BASE-TX/FXIEEE 802.3ab1000BASE-TIEEE 802.3z1000BASE-SX/LXIEEE 802.3xFlow ControlIEEE 802.3afPower over EthernetIEEE 802.3atPower over Ethernet PlusIEEE 802.3azEnergy Efficient Ethernet (EEE)InterfacePorts: 1 x 10/100/1000BASE-T (PoE RJ45), 1 x 100FX/GE SFP slotLED Panel: PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACTPowerInput Voltage: Primary: 48~57V DC, Redundant: 48~57V DCPower Connection: 4-pin DC-Jack (48V DC)(Primary Power Input), 6-pin Terminal block (Primary/Redundant Power Input)Power Input Polarity Protection: PresentPower Voltage Drop Alarm: Primary/Redundant Power InputAlarm Relay: One relay output with current carrying capacity of 1A @ 24V DCPower Consumption: 7W (System), 40W (with 1 PoE plus fully loaded)ESD Protection: PresentSurge Protection: PresentMechanical and EnvironmentHousing: Aluminum Case (IP30 protection)Mounting: DIN-Rail, Wall Mount (optional)Operating Temperature: -40°C~75°C (-40°F~167°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 10 to 95% RH (non-condensing)Storage Humidity: 5 to 95% RH (non-condensing)Weight: 450 g (1 lb)Dimension (WxHxD): 50 x 116 x 100 mm (1.97 x 4.57 x 3.94 in)Ordering InformationModelDescriptionIMC-661P1 x 10/100/1000 PoE+ to 1 x FX/GbE SFP Industrial ConverterCE, FCC, ROHS certifiedRedundant power supply and alarm relay for reliabilityFanless designSurge protectionKey SpecificationsModel: IMC-661P1 x 10/100/1000 PoE+ port1 x 100/1000 SFP portAluminum housing (IP30)Operating temperature: -40°C~75°CPower input: 48~57V DC (primary/redundant)Power consumption: 7W (system), 40W (with PoE fully loaded)Dimensions: 50 x 116 x 100 mmWeight: 450 gDIN-Rail/Wall mountCE, FCC, ROHS certified
