メディア変換器 HMC-652E series

プロトコル信号産業用

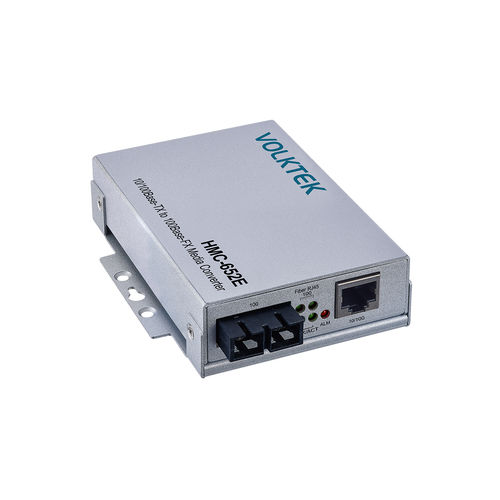

Product OverviewHMC-652E is a media converter from 10/100 Mbps RJ45 port to 100FX optical fiber. Equipped with automatic MDI/MDI-X and auto-negotiation functions, it is an easy and hassle-free solution. The NWay support of the RJ-45 port automatically optimizes settings according to the characteristics of the connected device, making it suitable for various environments. HMC-652E features LED indicators that visually notify users of transmission activity and connection status, minimizing data communication delays and performance impact. It supports both single-mode and multi-mode, enabling data transmission over distances from 2km to 30km according to user needs. HMC-652E is equipped with slots for SC/ST connectors and SFP modules, allowing users to flexibly replace fiber modules as needed. It operates in a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for various environmental conditions. Its standard size design is optimal for rack-mounting multiple media converters.Features10/100BaseT(X) - 100BaseFXAuto MDI/MDI-X10/100BaseT(X) auto-negotiation, N Way protocol supportLink Fault Signaling function to check network connection statusOperating temperature range: -10°C to 60°C (14°F~140°F)Rugged and Robust DesignHMC-652E is housed in a durable enclosure to withstand harsh industrial environments and mission-critical situations. The IP30-grade casing provides excellent protection against severe temperature conditions from -10°C to 60°C. DIN rail mounting is possible, making installation easy and suitable for space-constrained industrial environments. The DC jack with lock ensures continuous power connection in vibration-prone mission-critical applications.Economic and Space-Saving DesignDesigned compactly for mission-critical environments, HMC-652E provides transparent 100Mbps conversion, efficiently connecting 10/100Mbps copper ports and 100Mbps fiber ports in a small enclosure, reducing costs and ensuring efficient connectivity. Its compact size allows wall mounting and effective space utilization. Installation and operation are very simple, saving valuable time and cost.Fault-Tolerant and User-Friendly MonitoringHMC-652E offers advanced features for network administrators, enabling effective monitoring and troubleshooting of device functions and link activity. The LFS (Link Fault Signaling) function provides important information about link status, easily detecting optical signal strength and faulty links on both copper and fiber ports, minimizing downtime. The LEDs convey important diagnostic and status information such as device power and port link activity, allowing easy monitoring without entering tight spaces.Easy Plug-and-Play OperationHMC-652E is a compact and lightweight media converter, easy to set up and ready to use for distributed or emerging networks. With Auto-MDI/MDIX and auto-negotiation, it automatically detects and sets the optimal operating mode on the link, eliminating the need for user configuration and simplifying installation. Once installed, the media converter operates automatically. The Link Fault Signaling DIP switch allows easy and quick enabling/disabling of the LFS function.Local and Remote LoopbackBy selecting loopback mode, administrators can efficiently diagnose network issues remotely. Local loopback is available on the closet segment, and remote loopback on the secondary segment. Administrators can send test packets to the link and inspect returned packets to efficiently diagnose each network link, enabling rapid troubleshooting.SpecificationsStandards:IEEE 802.310BASE-TIEEE 802.3u100BASE-TX/FXPower:Power Input: 12V DC/1.5A, via external power adapterPower Consumption: 1.8WMechanical and Environment:Housing: Aluminum (IP30 Protection)Dimensions (W x H x D): 73.8 x 23.4 x 109.2mm (2.9 x 0.9 x 4.3 inch)Weight: 158gMounting: Wall-Mount, DIN-RailOperating Temperature: -10°C~60°C (14°F ~ 140°F)Storage Temperature: -40°C~85°C (-40°F ~ 185°F)Operating Humidity: 5 to 95 % RH (non-condensing)Storage Humidity: 5 to 95% RH (non-condensing)Ordering InformationModelDescriptionHMC-652E10/100BASE-TX to 100BASE-FX Converter, SFP Transceiver NOT INCLUDEDHMC-652E-MT10/100BASE-TX to Multi-mode 100BASE-FX Converter, ST connector, 2KmHMC-652E-MC10/100BASE-TX to Multi-mode 100BASE-FX Converter, SC connector, 2KmHMC-652E-SC10/100BASE-TX to Single Mode 100BASE-FX Converter, SC connector, 30KmKey Features:10/100BaseT(X) - 100BaseFX conversionAuto MDI/MDI-XAuto-negotiation and N Way protocol supportLink Fault SignalingOperating temperature: -10°C to 60°CDIN rail and wall-mountableIP30 protectionLED indicators for statusSupports both single-mode and multi-mode fiberFlexible SFP/SC/ST module supportCompact and robust aluminum housingPower input: 12V DC/1.5APower consumption: 1.8WDimensions: 73.8 x 23.4 x 109.2mmWeight: 158g
