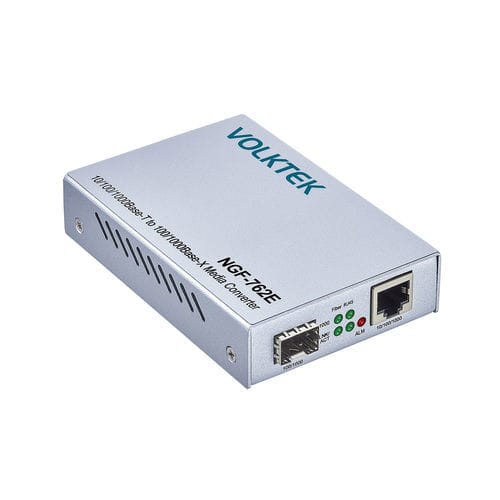

メディア変換器 NGF-762E

プロトコル信号DINレール

Product Overview:NGF-762E is a media converter from 10/100/1000 RJ45 port to 100FX/1000Base-X fiber optic. Equipped with automatic MDI/MDI-X and auto-negotiation functions, it is an easy and hassle-free solution. The NWay support of the RJ-45 port automatically optimizes settings according to the characteristics of the connected device, making it suitable for various environments. The NGF-762E features LED indicators that visually notify users of transmission activity and connection status, minimizing data communication delays and performance impact. This media converter supports both single-mode and multi-mode, allowing data transmission over distances of 500m, 2km, 10km, 40km, 50km, and 70km according to user needs. Additionally, it is equipped with SFP slots for SC and SFP modules, allowing users to replace fiber modules as needed, providing a highly flexible solution. The NGF-762E operates in a temperature range of 0°C to 50°C (32°F to 122°F). Its standard size design makes it optimal for use in racks with multiple media converters.Features:Rugged and durable design: The NGF-762E is designed with a robust and durable housing for stable operation. Housed in an IP30 grade casing, it provides excellent protection from harsh temperatures ranging from 0°C to 50°C (32°F to 122°F). DIN rail mounting is possible, making installation easy and suitable for environments with limited space. The NGF-762E features a DC jack with a locking function to ensure continuous power connection in mission-critical applications where vibration plays an important role.Economical and space-saving design: The NGF-762E is compactly designed to meet mission-critical environments. As a low-cost media converter, it enables transparent conversion from copper to fiber. Its compact size allows wall mounting, making effective use of space. Installation and operation are very simple, saving valuable time and cost.Fault-tolerant and user-friendly monitoring: The NGF-762E offers advanced features that are very convenient for network administrators, allowing effective monitoring of device functions and link activity for troubleshooting. The LFS (Link Fault Signaling) function provides important information about link status, easily detecting optical signal strength and faulty links on both copper and fiber ports, greatly minimizing downtime. The NGF-762E's LEDs convey important diagnostic and status information such as device power and port link/activity, allowing easy monitoring without entering tight spaces.Easy plug-and-play operation: The NGF-762E is a compact and lightweight media converter, providing an easy-to-use solution for distributed and emerging networks. With Auto-MDI/MDIX and auto-negotiation, this media converter automatically detects and sets the optimal operating mode on the link, eliminating the need for user configuration and simplifying installation. Once installed, the media converter operates automatically. Additionally, the NGF-762E's Link Fault Signaling DIP switch allows the LFS (Link Fault Signaling) function to be enabled or disabled quickly and easily.Product Features:10/100/1000 RJ45 - 100FX/1000Base-XAuto MDI/MDI-X10/100/1000 RJ45 auto-negotiation, N Way protocol supportLink fault signaling function to check network connection statusOperating temperature range: 0°C to 50°C (32°F to 122°F)Specifications:Standards:IEEE 802.310BASE-TIEEE 802.3u100BASE-TX/FXIEEE 802.3ab1000BASE-TIEEE 802.3z1000BASE-SX/LXInterface:Ports: 1 x 10/100/1000BASE-T (RJ45), 1 x 100FX/1000BASE-XLED Panel: PWR, Fiber(1000, LNK/ACT), RJ45 (1000, LNK/ACT), ALM (Alarm)DIP: 1: Link Fault Signal, 2: LLB (Local Loopback), 3: RLB (Remote Loopback), 4: SFP SpeedPower:Input Voltage: 12V DC/1A, via external power adapterPower Consumption: 1.8WMechanical and Environment:Housing: Aluminum (IP30 Protection)Mounting: Wall-Mount, DIN-Rail (Optional), Chassis CompatibleOperating Temperature: 0°C~50°C (32°F~122°F)Storage Temperature: -20°C~70°C (-4°F~158°F)Operating Humidity: 5 to 95 % RH (non-condensing)Storage Humidity: 5 to 95 % RH (non-condensing)Weight: 131 g (0.29 lb)Dimensions (W x H x D): 73.8 x 23.4 x 109.2 mm (2.9 x 0.92 x 4.3 in)Ordering Information:ModelDescriptionNGF-762E10/100/1000Base-T to SFP Converter SFP (NOT INCLUDED), Chassis PluggableModelSFP TransceiverGBM-1041000Base-SX 1.25G, Multi-mode SFP, 500mGBM-104-21000Base-SX 1.25G, Multi-Mode, 3.3V, 1310nm, 2KmGBM-104-101000Base-LX 1.25G, Single Mode SFP, 10KmGBM-123TS1000Base-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10kmGBM-123RS1000Base-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10kmModelDescriptionNGF-762E-MC10/100/1000Base-T to Multi-Mode 1000Base-FX Converter, SC connector, 500mNGF-762E-SC10/100/1000Base-T to single mode 1000Base-FX Converter, SC connector, 10kmNGF-762E-SC2010/100/1000Base-T to single mode 1000Base-FX Converter, SC connector, 20kmNGF-762E-SC4010/100/1000Base-T to single mode 1000Base-FX Converter, SC connector, 40kmTechnical Specifications:10/100/1000 RJ45 - 100FX/1000Base-XAuto MDI/MDI-XAuto-negotiation, N Way protocol supportLink fault signalingOperating temperature: 0°C to 50°CSupports single-mode and multi-mode fiberSFP slot for SC and SFP modulesDIN rail and wall-mountableIP30 protectionPower: 12V DC/1A, 1.8W consumptionDimensions: 73.8 x 23.4 x 109.2 mmWeight: 131g
