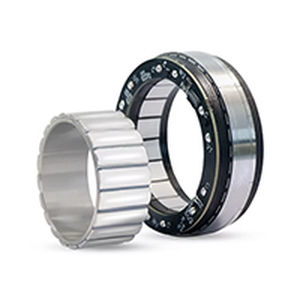

Brushless motor FL-85-13

48 Vcompactframeless

Powerful frameless brushless motor FL-85-13 from A2V: a high-torque, casing-free motor for direct integration into your compact, high-performance mechanisms. Main Features: - Nominal torque: 1.3 Nm - Nominal speed: 2400 rpm - Voltage: 48 V Technical Specifications Table: - Type de moteur: FL-85-13 - Tension d'entrée (V): 48 - Vitesse nominale (tr/min): 2400 - Couple nominal (Nm): 1.3 - Puissance nominale (W): 408 - Courant nominal (A): 9.4 - Couple crête (Nm): 3.9 - Courant crête (A): 28.2 Additional Characteristics: - Courant à vide (A): 0.37 - Rendement (%): >82% - Constante Back-EMF/Valeur effective (V/Krpm): 9.65 - Constante de couple (Nm/A): 0.14 - Résistance (ohms@20°C): 0.16 - Inductance (mH): 0.33 - Nombre de paires de pôles: 10 - Connexion triphasée: Y - Codeur: Hall+INC - Poids (kg): 0.46 - Classe d'isolation: F Codification: - RMD: Brand name - FL: Series name - 85: Stator diameter - 13: Rotor height - 500: Nominal power Technical Features / Specifications: - Type: Frameless brushless motor - Nominal voltage: 48 V - Nominal speed: 2400 rpm - Nominal torque: 1.3 Nm - Nominal power: 408 W - Nominal current: 9.4 A - Peak torque: 3.9 Nm - Peak current: 28.2 A - No-load current: 0.37 A - Efficiency: >82% - Back-EMF constant: 9.65 V/Krpm - Torque constant: 0.14 Nm/A - Resistance: 0.16 ohms @ 20°C - Inductance: 0.33 mH - Number of pole pairs: 10 - Three-phase connection: Y - Encoder: Hall+INC - Weight: 0.46 kg - Insulation class: F
