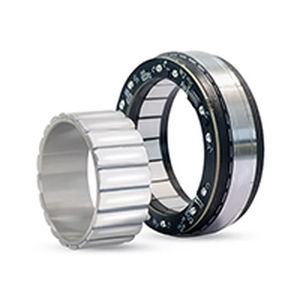

Three-phase motor FL-70-16

brushless48 Vframeless

The frameless motor FL-70-16 combines compactness and mechanical performance for optimal integration into your robotic, medical, or embedded systems. - Nominal Torque: 1.3 Nm - Nominal Speed: 3000 RPM - Voltage: 48 V Additional Features: - No-load Current (A): 0.41 - Efficiency (%): >83% - Back-EMF Constant/Effective Value (V/Krpm): 9.86 - Torque Constant (Nm/A): 0.14 - Resistance (ohms@20°C): 0.25 - Inductance (mH): 0.38 - Number of Pole Pairs: 10 - Three-phase Connection: Y - Encoder: Hall+INC - Weight (kg): 0.32 - Insulation Class: F Applications: Robotic, medical, or embedded systems requiring compactness and mechanical performance. Technical Specifications: - Motor Type: FL-70-16 - Input Voltage: 48 V - Nominal Speed: 3000 RPM - Nominal Torque: 1.3 Nm - Nominal Power: 408 W - Nominal Current: 9.2 A - Peak Torque: 2.6 Nm - Peak Current: 27.6 A - No-load Current: 0.41 A - Efficiency: >83% - Back-EMF Constant: 9.86 V/Krpm - Torque Constant: 0.14 Nm/A - Resistance: 0.25 ohms@20°C - Inductance: 0.38 mH - Number of Pole Pairs: 10 - Three-phase Connection: Y - Encoder: Hall+INC - Weight: 0.32 kg - Insulation Class: F
