Three-phase motor FL-50-08
brushless48 Vcompact

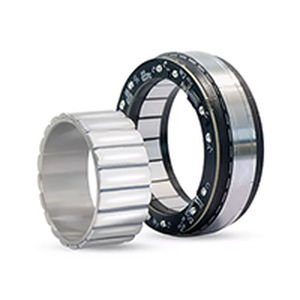

Three-phase motor - FL-50-08 - A2V Mécatronique - brushless / 48 V / compact
Three-phase motor - FL-50-08 - A2V Mécatronique - brushless / 48 V / compact
Three-phase motor - FL-50-08 - A2V Mécatronique - brushless / 48 V / compact - image - 2
Add to favorites
Compare this product
Go to the A2V Mécatronique website for more information

Characteristics

Type
three-phase, brushless
Voltage
48 V
Configuration
compact, frameless
Number of poles
12-pole
Applications
for medical equipment, for robotics
Other characteristics
for robotics
Power

0 kW
(0 hp)

Rotational speed

5,200 rpm
(32,672.5636 rad.min-1)

Diameter

50 mm
(1.97 in)

Description

Brushless frameless motor FL-50-08: compact, powerful, and designed for direct integration into your mechanisms. Excellent solution for robotics or medical devices. - Nominal torque: 0.3 Nm - Nominal speed: 5200 rpm - Voltage: 48 V Technical characteristics: - Type of motor: FL-50-08 - Input voltage (V): 48 - Nominal speed (rpm): 5200 - Nominal torque (Nm): 0.3 - Nominal power (W): 163 - Nominal current (A): 3.9 - Peak torque (Nm): 0.96 - Peak current (A): 12.48 Technical characteristics: - No-load current (A): 0.35 - Efficiency (%): >83% - Back-EMF constant / Effective value (V/Krpm): 5.37 - Torque constant (Nm/A): 0.08 - Resistance (ohms@20°C): 0.62 - Inductance (mH): 0.43 - Number of pole pairs: 10 - Three-phase connection: Y - Encoder: Hall+INC - Weight (kg): 0.12 - Insulation class: F Series coding: - RMD: Brand name - FL: Series name - 50: Stator diameter - 08: Rotor height - 180: Nominal power

Catalogs

No catalogs are available for this product.

See all of A2V Mécatronique‘s catalogs
