Three-phase motor FL-85-23
brushless48 Vframeless

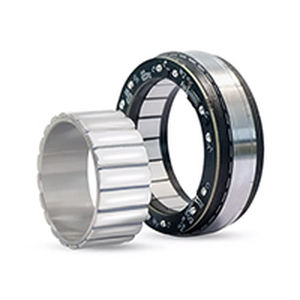

Three-phase motor - FL-85-23 - A2V Mécatronique - brushless / 48 V / frameless
Three-phase motor - FL-85-23 - A2V Mécatronique - brushless / 48 V / frameless
Three-phase motor - FL-85-23 - A2V Mécatronique - brushless / 48 V / frameless - image - 2
Add to favorites
Compare this product
Go to the A2V Mécatronique website for more information

Characteristics

Type
three-phase, brushless
Voltage
48 V
Configuration
frameless
Number of poles
10-pole
Applications
industrial, for robotics, for medical applications
Other characteristics
high-performance
Power

733 W
(1 hp)

Intensity

14.5 A

Torque

2 Nm
(1.475124 ft.lb)

Rotational speed

3,500 rpm
(21,991.1486 rad.min-1)

Diameter

85 mm
(3.35 in)

Description

The frameless motor FL-85-23 is designed for integrations requiring power and compactness: robotics, medical, embedded. A high-performance A2V solution. - Nominal Torque: 2 Nm - Nominal Speed: 3500 RPM - Voltage: 48 V Technical Specifications: - Motor Type: FL-85-23 - Input Voltage: 48 V - Nominal Speed: 3500 RPM - Nominal Torque: 2 Nm - Nominal Power: 733 W - Nominal Current: 14.5 A - Peak Torque: 6 Nm - Peak Current: 43.5 A - No-load Current: 0.38 A - Efficiency: >81% - Back-EMF Constant: 9.63 V/Krpm - Torque Constant: 0.14 Nm/A - Resistance: 0.08 ohms@20°C - Inductance: 0.18 mH - Number of Pole Pairs: 10 - Three-phase Connection: Y - Encoder: Absolute - Weight: 0.61 kg - Insulation Class: F Coding: - RMD: Brand Name - FL: Series Name - 85: Stator Diameter - 23: Rotor Height - 750: Nominal Power
